Dav's Doodle Dandy - animated image drawing.

[Dav]

This is an animated image drawing doodler thing (work in progress)  You can draw images with the doodle make program, it saves it as a special image file.  Then you can play it back later with the doodle player program. When playing back the saved file it will draw the image on the screen with a hand, like it's drawing the image live, like a video animation.  Got the idea watching youtube vids yesterday made with a doodler program.  Wondered how easy it could be to make in QB64.

To see what it can do, run the DOODLE-PLAY.BAS program and it will load/run the DOODLE.DAG image animation.  Just half a days work so far, lots of improvements to be made still. There is a glitch when changing colors, trying to figure that out.

You could make small presentations/intros with this I suppose...

- Dav

EDIT: Fixed glitch...redownload please...



davsdoodle.zip

(93k)



[OldsCool]

very COOL and smooth! I created something similar to this in Qbasic some time ago (minus the hand image) that saved the screen data from individual computer generated images(low Res) to play back later as a motion video with an independent motion player I created. in the motion file it only saved the 'Differences' in each consecutive frame (Image) thereby acting as 'compression' increasing the playback speed (slow Qbasic and computer back then) and making for much smaller play-back files.
I enjoyed your demo !  thank goodness we have QB64 and thank you to the QB64 development team!

[Dav]

Thanks, @OldsCool.  Thanks for trying it out.  Interesting about your Qbasic project.  Sounds like you made something like the FLIC format animation files used.  I think the challenge of getting by Qbasic's limitations only made it more fun!

I fixed the glitch - the jumping hand now and then.  I just posted a fixed version.  Had to re-record the drawing.  Redownload for the fixed programs.

- Dav

[Dav]

I have been working on this some more, but want to put it in more of a finished product before posting.  Not sure when that will be because my gigs are picking up good again and my free programming time is reduced.  So here's a preview...

It's using SPAINT routine now by @Petr that he wrote for my QuadDraw program last year (Thanks for the cool routine, Petr!).  Also trying to incorporate Petr's way or drawing the line so there are no gaps when drawing fast.  I'm adding pausing and wipe screen clear commands so you can do message kind of animations.  Playing around with an eraser pic to do the wiping.  And different hand position images now and then.  I'm adding the capability for custom screen sizes, and giving the image file a header to hold info.  Also doing a rewrite of the doodle-make program putting everything in a right click menu (color select is there too).  Adding a file browser to the player program, and also accept COMMAND$ to play on startup, and playback controls.

If anyone has any suggestions to add, please do.  Thanks.

- Dav

[bplus]

I like how you will be able to make fun presentations hopefully.

Are you thinking soundly?

[Dav]

I like how you will be able to make fun presentations hopefully.

Are you thinking soundly?

Thanks for reminding me. It would be great to have optional background music.  And perhaps combining the sound and image data into one file. Image data can be tacked onto the end of an audio file, and QB64 will still be able to open and play the sound files with the extra data on the end (that’s how the .qbv video format thing last year worked). I’d like to keep the presentations as one file.

-Dav

[Petr]

Nice work, Dav! For a combination of audio and video, for the simplest work, a custom format would probably be the simplest - basically you can determine how long it takes to draw one frame according to the number of steps used (in your .DAG format). If you have the number of steps of one animation and the number of frames in the file (in the new type of binary file you specify the number of DAG files), you have the total video time. All you have to do is add information to the file about which frames belong together (for example, that the first animation has four frames (in the current state as if 4 .DAG files) and here you can insert a change of the soundtrack (up to this time). video and audio transition), for example by numbering. Subsequently, the binary file would describe the video, for example, as follows: (this is just a suggestion from my head)

Number of DAG files in the file - LONG - 4 bytes
Number of audio files - LONG - 4 bytes

Lengths of individual DAG files in seconds (repeated according to the number of DAG files in the file) - LONG - 4 bytes * number of DAG files

Binary sizes of individual DAG files - LONG - 4 bytes * number of DAG files

Offsets on which individual DAG files start - LONG - 4 bytes * number of DAG files

Offsets where music files start - LONG - 4 bytes * number of audio files

Playback description: (let's say we have 10 DAG files and 3 music files)

1 (plays the first DAG video), 1 (plays the first audio file), 5 (the effect number for the video when switching from one DAG file to another DAG file), 7 (the effect number for the sound when changing the audio), 2 (plays the second DAG video), 1 (plays the first audio file) .......

[Dav]

Petr, thank you for the great suggestions.  I think I should re-do how I'm recording the animation to sync sound.  Right now I'm just recording mouse movements and clicks in steps, outside of a timeline.   The way you describe doing the header is good, I'm thinking along that way too.  Thanks.

- Dav

[TempodiBasic]

@Dav
Hi, I find your work very good.
A little set of questions to understand the goal of application
1.  no UNDO?
2. Is it in the feature that Fill clears the whole canvas into a single color?
3.  What do you think about an option to fill only background color with the new choosen color?
4. How other wonderful QB64 applications do you want share  ?

I agree with you message:


[Dav]

Hi @TempodiBasic !  Thank you!

1. Yes, I have UNDO on the list, because I need it very much. I started to add it last night, but it’s not working good yet.

2.  I am adding screen wipes to clear screen to a certain color.  I also added brush size change, allowing one to wipe the screen clear very fast.

3. Nice idea, maybe I can do a color swap for that

4. I write a lot of programs for fun or to work out an idea that I’m curious about.  The majority of them are not good enough to post here, so I don’t share most of them.  I suppose there are a couple more I could post without embarrassing myself.

Thank you for trying the program.

- Dav

[Dav]

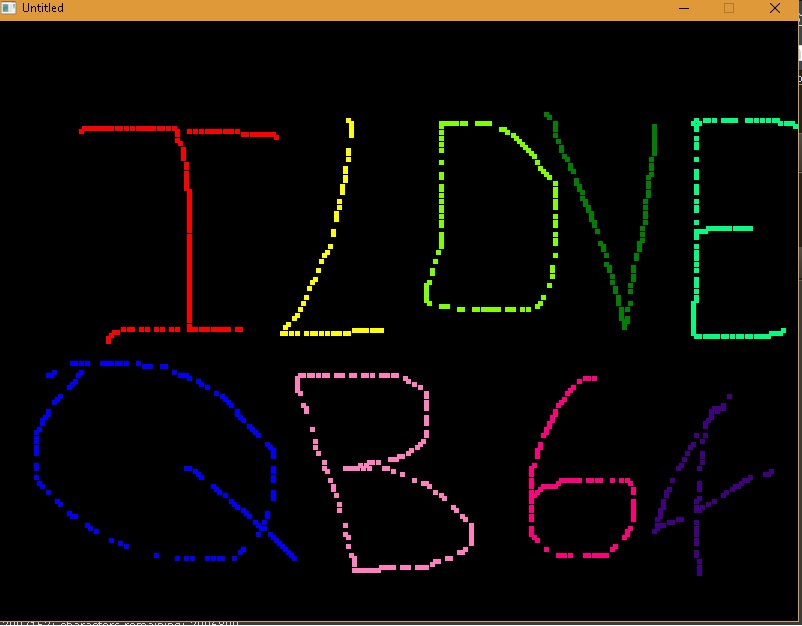

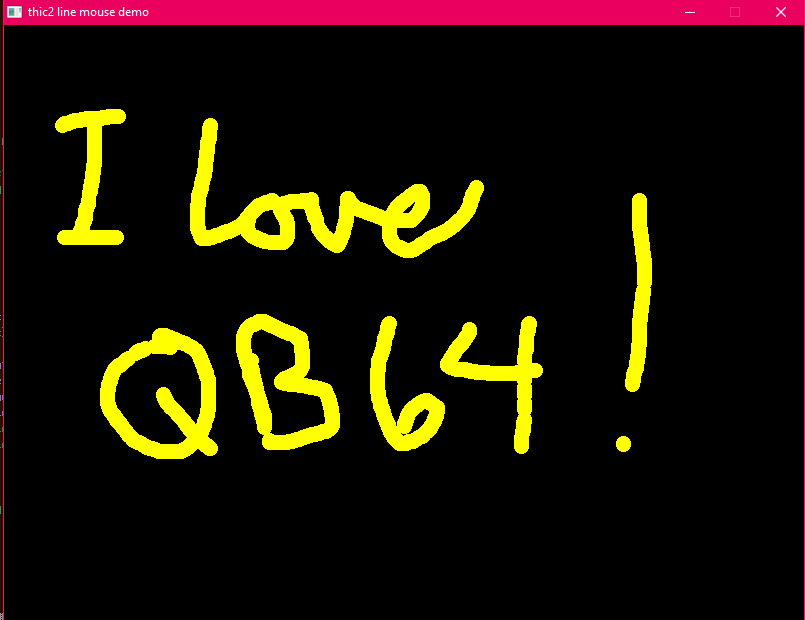

One thing I'm trying to do is eliminate to gaps in the drawing line when moving the mouse too fast (like in your image above @TempodiBasic) by drawing in the in-between space.  It seems simple at first, save the last known x/y point and fill in between that and the new x/y, but I'm not seeing it clearly yet how to correctly.  It's too blocky when moving real fast, so I need to do a series of blocks on the line.   I'm sure I'm not seeing something probably so obvious to others.  Here's an example...

- Dav

Code: QB64: [Select]

1.
2. SCREEN _NEWIMAGE(600, 600, 32)
3.
4. CLS , _RGB(255, 255, 255)
5.
6. size% = 3: clr& = _RGB(0, 0, 0)
7.
8. DO
9.
10.     mi = _MOUSEINPUT: mx = _MOUSEX: my = _MOUSEY
11.
12.     IF _MOUSEBUTTON(1) THEN
13.
14.         'if drawing still, draw pixels in between
15.         IF drawing = 1 THEN
16.             LINE (oldmx, oldmy)-(mx, my), clr&, BF
17.         END IF
18.
19.         'draw line brush
20.         LINE (mx - (size% / 2), my - (size% / 2))-(mx + (size% / 2), my + (size% / 2)), clr&, BF
21.
22.         'use circle brush instead of line
23.         'FOR d = 1 TO size% STEP .2
24.         '    CIRCLE (mx, my), d, clr&
25.         'NEXT
26.
27.         drawing = 1: oldmx = mx: oldmy = my
28.
29.     ELSE
30.
31.         drawing = 0
32.
33.     END IF
34.
35. LOOP
36.

[STxAxTIC]

Sup Dav -

The thing you want is linear interpolation. Highly google-able, but I'll do you one better. From our very own archives, the curve smoother:

Code: QB64: [Select]

1. '_OE
2.
3. DO UNTIL _SCREENEXISTS: LOOP
4. _TITLE "If these curves were smoother they'd steal your wife."
5.
6. ' Hardware
7. SCREEN _NEWIMAGE(800, 600, 32)
8. _SCREENMOVE (_DESKTOPWIDTH \ 2 - _WIDTH \ 2) - 3, (_DESKTOPHEIGHT \ 2 - _HEIGHT \ 2) - 29
9.
10. ' Meta
11. RANDOMIZE TIMER
12.
13. ' Data structures
14. TYPE Vector
15.     x AS DOUBLE
16.     y AS DOUBLE
17. END TYPE
18.
19. ' Object type
20. TYPE Object
21.     Elements AS INTEGER
22.     Shade AS _UNSIGNED LONG
23. END TYPE
24.
25. ' Object storage
26. DIM SHARED Shape(300) AS Object
27. DIM SHARED PointChain(300, 500) AS Vector
28. DIM SHARED TempChain(300, 500) AS Vector
29. DIM SHARED ShapeCount AS INTEGER
30. DIM SHARED SelectedShape AS INTEGER
31.
32. DIM SHARED MasterDraw AS STRING
33.
34. ' Initialize
35. ShapeCount = 0
36.
37. ' Main loop
38. DO
39.     LOCATE 1, 1: PRINT ShapeCount
40.     CALL UserInput
41.     CALL Graphics
42.     _LIMIT 120
43. LOOP
44.
45. SYSTEM
46.
47. SUB UserInput
48.     TheReturn = 0
49.     ' Keyboard input
50.     kk = _KEYHIT
51.     SELECT CASE kk
52.         CASE 32
53.             DO: LOOP UNTIL _KEYHIT
54.             WHILE _MOUSEINPUT: WEND
55.             _KEYCLEAR
56.             CALL NewMouseShape(7.5, 400, 15)
57.             CLS
58.         CASE ASC("e"), ASC("E")
59.             OPEN "Curves" + LTRIM$(RTRIM$(STR$(INT(TIMER)))) + ".txt" FOR OUTPUT AS #1
60.             PRINT #1, MasterDraw
61.             CLOSE #1
62.     END SELECT
63.     IF (kk) THEN
64.         _KEYCLEAR
65.     END IF
66. END SUB
67.
68. SUB Graphics
69.     DIM k AS INTEGER
70.     DIM x1 AS DOUBLE
71.     DIM x2 AS DOUBLE
72.     DIM y1 AS DOUBLE
73.     DIM y2 AS DOUBLE
74.     MasterDraw = ""
75.     LINE (0, 0)-(_WIDTH, _HEIGHT), _RGBA(0, 0, 0, 255), BF
76.     CALL cPrintstring(16 * 17, "PRESS SPACE and then drag MOUSE 1 to draw a new shape.")
77.     FOR k = 1 TO ShapeCount
78.         z$ = "c" + STR$(Shape(k).Shade) + " "
79.         FOR i = 1 TO Shape(k).Elements - 1
80.             x1 = PointChain(k, i).x
81.             y1 = PointChain(k, i).y
82.             x2 = PointChain(k, i + 1).x
83.             y2 = PointChain(k, i + 1).y
84.             'CALL lineSmooth(x1, y1, x2, y2, Shape(k).Shade)
85.
86.             '''
87.             ' Fellippe, this was it ...
88.             dr = SQR((x2 - x1) ^ 2 + (y2 - y1) ^ 2)
89.             ang = (180 / 3.1416 * ATN((y2 - y1) / (x2 - x1)))
90.             IF (x2 < x1) THEN
91.                 ang = 180 + ang
92.             END IF
93.             z$ = z$ + "TA " + STR$(ang - 90) + " U" + STR$(dr) + " "
94.             '''
95.         NEXT
96.         ' Make a point to get DRAW started.
97.         CALL cPset(PointChain(k, 1).x, PointChain(k, 1).y, Shape(k).Shade)
98.         ' Draw replaces CLine.
99.         MasterDraw = MasterDraw + z$ + "___"
100.         DRAW z$
101.     NEXT
102.     _DISPLAY
103. END SUB
104.
105. SUB NewMouseShape (rawresolution AS DOUBLE, targetpoints AS INTEGER, smoothiterations AS INTEGER)
106.     ShapeCount = ShapeCount + 1
107.     numpoints = 0
108.     xold = 999 ^ 999
109.     yold = 999 ^ 999
110.     DO
111.         DO WHILE _MOUSEINPUT
112.             x = _MOUSEX
113.             y = _MOUSEY
114.             IF (x > 0) AND (x < _WIDTH) AND (y > 0) AND (y < _HEIGHT) THEN
115.                 IF _MOUSEBUTTON(1) THEN
116.                     x = x - (_WIDTH / 2)
117.                     y = -y + (_HEIGHT / 2)
118.                     delta = SQR((x - xold) ^ 2 + (y - yold) ^ 2)
119.                     IF (delta > rawresolution) AND (numpoints < targetpoints - 1) THEN
120.                         numpoints = numpoints + 1
121.                         PointChain(ShapeCount, numpoints).x = x
122.                         PointChain(ShapeCount, numpoints).y = y
123.                         CALL cPset(x, y, _RGB(0, 255, 255))
124.                         xold = x
125.                         yold = y
126.                     END IF
127.                 END IF
128.             END IF
129.         LOOP
130.         _DISPLAY
131.     LOOP UNTIL NOT _MOUSEBUTTON(1) AND (numpoints > 1)
132.
133.     DO WHILE (numpoints < targetpoints)
134.         rad2max = -1
135.         kmax = -1
136.         FOR k = 1 TO numpoints - 1
137.             xfac = PointChain(ShapeCount, k).x - PointChain(ShapeCount, k + 1).x
138.             yfac = PointChain(ShapeCount, k).y - PointChain(ShapeCount, k + 1).y
139.             rad2 = xfac ^ 2 + yfac ^ 2
140.             IF rad2 > rad2max THEN
141.                 kmax = k
142.                 rad2max = rad2
143.             END IF
144.         NEXT
145.         FOR j = numpoints TO kmax + 1 STEP -1
146.             PointChain(ShapeCount, j + 1).x = PointChain(ShapeCount, j).x
147.             PointChain(ShapeCount, j + 1).y = PointChain(ShapeCount, j).y
148.         NEXT
149.         PointChain(ShapeCount, kmax + 1).x = (1 / 2) * (PointChain(ShapeCount, kmax).x + PointChain(ShapeCount, kmax + 2).x)
150.         PointChain(ShapeCount, kmax + 1).y = (1 / 2) * (PointChain(ShapeCount, kmax).y + PointChain(ShapeCount, kmax + 2).y)
151.         numpoints = numpoints + 1
152.     LOOP
153.
154.     FOR j = 1 TO smoothiterations
155.         FOR k = 2 TO numpoints - 1
156.             TempChain(ShapeCount, k).x = (1 / 2) * (PointChain(ShapeCount, k - 1).x + PointChain(ShapeCount, k + 1).x)
157.             TempChain(ShapeCount, k).y = (1 / 2) * (PointChain(ShapeCount, k - 1).y + PointChain(ShapeCount, k + 1).y)
158.         NEXT
159.         FOR k = 2 TO numpoints - 1
160.             PointChain(ShapeCount, k).x = TempChain(ShapeCount, k).x
161.             PointChain(ShapeCount, k).y = TempChain(ShapeCount, k).y
162.         NEXT
163.     NEXT
164.
165.     Shape(ShapeCount).Elements = numpoints
166.     Shape(ShapeCount).Shade = _RGB(100 + INT(RND * 155), 100 + INT(RND * 155), 100 + INT(RND * 155))
167.     SelectedShape = ShapeCount
168. END SUB
169.
170. SUB cPset (x1 AS DOUBLE, y1 AS DOUBLE, col AS _UNSIGNED LONG)
171.     PSET (_WIDTH / 2 + x1, -y1 + _HEIGHT / 2), col
172. END SUB
173.
174. SUB cLine (x1 AS DOUBLE, y1 AS DOUBLE, x2 AS DOUBLE, y2 AS DOUBLE, col AS _UNSIGNED LONG)
175.     LINE (_WIDTH / 2 + x1, -y1 + _HEIGHT / 2)-(_WIDTH / 2 + x2 - 0, -y2 + _HEIGHT / 2 + 0), col
176. END SUB
177.
178. SUB cPrintstring (y, a AS STRING)
179.     _PRINTSTRING (_WIDTH / 2 - (LEN(a) * 8) / 2, -y + _HEIGHT / 2), a
180. END SUB
181.
182. SUB lineSmooth (x0, y0, x1, y1, c AS _UNSIGNED LONG)
183.     'Credit: FellippeHeitor qb64.org (2020)
184.     '        Adapted from https://en.wikipedia.org/w/index.php?title=Xiaolin_Wu%27s_line_algorithm&oldid=852445548
185.     'Edit:   Correction to alpha channel (2020-11-20)
186.
187.     DIM plX AS INTEGER, plY AS INTEGER, plI
188.
189.     DIM steep AS _BYTE
190.     steep = ABS(y1 - y0) > ABS(x1 - x0)
191.
192.     IF steep THEN
193.         SWAP x0, y0
194.         SWAP x1, y1
195.     END IF
196.
197.     IF x0 > x1 THEN
198.         SWAP x0, x1
199.         SWAP y0, y1
200.     END IF
201.
202.     DIM dx, dy, gradient
203.     dx = x1 - x0
204.     dy = y1 - y0
205.     gradient = dy / dx
206.
207.     IF dx = 0 THEN
208.         gradient = 1
209.     END IF
210.
211.     'handle first endpoint
212.     DIM xend, yend, xgap, xpxl1, ypxl1
213.     xend = _ROUND(x0)
214.     yend = y0 + gradient * (xend - x0)
215.     xgap = (1 - ((x0 + .5) - INT(x0 + .5)))
216.     xpxl1 = xend 'this will be used in the main loop
217.     ypxl1 = INT(yend)
218.     IF steep THEN
219.         plX = ypxl1
220.         plY = xpxl1
221.         plI = (1 - (yend - INT(yend))) * xgap
222.         GOSUB plot
223.
224.         plX = ypxl1 + 1
225.         plY = xpxl1
226.         plI = (yend - INT(yend)) * xgap
227.         GOSUB plot
228.     ELSE
229.         plX = xpxl1
230.         plY = ypxl1
231.         plI = (1 - (yend - INT(yend))) * xgap
232.         GOSUB plot
233.
234.         plX = xpxl1
235.         plY = ypxl1 + 1
236.         plI = (yend - INT(yend)) * xgap
237.         GOSUB plot
238.     END IF
239.
240.     DIM intery
241.     intery = yend + gradient 'first y-intersection for the main loop
242.
243.     'handle second endpoint
244.     DIM xpxl2, ypxl2
245.     xend = _ROUND(x1)
246.     yend = y1 + gradient * (xend - x1)
247.     xgap = ((x1 + .5) - INT(x1 + .5))
248.     xpxl2 = xend 'this will be used in the main loop
249.     ypxl2 = INT(yend)
250.     IF steep THEN
251.         plX = ypxl2
252.         plY = xpxl2
253.         plI = (1 - (yend - INT(yend))) * xgap
254.         GOSUB plot
255.
256.         plX = ypxl2 + 1
257.         plY = xpxl2
258.         plI = (yend - INT(yend)) * xgap
259.         GOSUB plot
260.     ELSE
261.         plX = xpxl2
262.         plY = ypxl2
263.         plI = (1 - (yend - INT(yend))) * xgap
264.         GOSUB plot
265.
266.         plX = xpxl2
267.         plY = ypxl2 + 1
268.         plI = (yend - INT(yend)) * xgap
269.         GOSUB plot
270.     END IF
271.
272.     'main loop
273.     DIM x
274.     IF steep THEN
275.         FOR x = xpxl1 + 1 TO xpxl2 - 1
276.             plX = INT(intery)
277.             plY = x
278.             plI = (1 - (intery - INT(intery)))
279.             GOSUB plot
280.
281.             plX = INT(intery) + 1
282.             plY = x
283.             plI = (intery - INT(intery))
284.             GOSUB plot
285.
286.             intery = intery + gradient
287.         NEXT
288.     ELSE
289.         FOR x = xpxl1 + 1 TO xpxl2 - 1
290.             plX = x
291.             plY = INT(intery)
292.             plI = (1 - (intery - INT(intery)))
293.             GOSUB plot
294.
295.             plX = x
296.             plY = INT(intery) + 1
297.             plI = (intery - INT(intery))
298.             GOSUB plot
299.
300.             intery = intery + gradient
301.         NEXT
302.     END IF
303.
304.     EXIT SUB
305.
306.     plot:
307.     ' Change to regular PSET for standard coordinate orientation.
308.     CALL cPset(plX, plY, _RGB32(_RED32(c), _GREEN32(c), _BLUE32(c), plI * _ALPHA32(c)))
309.     RETURN
310. END SUB
311.

[Dav]

Wow, thanks @STxAxTIC ! That’s something I sure will chew on and digest. Thank you.

- Dav

[bplus]

One thing I'm trying to do is eliminate to gaps in the drawing line when moving the mouse too fast (like in your image above @TempodiBasic) by drawing in the in-between space.  It seems simple at first, save the last known x/y point and fill in between that and the new x/y, but I'm not seeing it clearly yet how to correctly.  It's too blocky when moving real fast, so I need to do a series of blocks on the line.   I'm sure I'm not seeing something probably so obvious to others.  Here's an example...

- Dav

Code: QB64: [Select]

1.
2. SCREEN _NEWIMAGE(600, 600, 32)
3.
4. CLS , _RGB(255, 255, 255)
5.
6. size% = 3: clr& = _RGB(0, 0, 0)
7.
8. DO
9.
10.     mi = _MOUSEINPUT: mx = _MOUSEX: my = _MOUSEY
11.
12.     IF _MOUSEBUTTON(1) THEN
13.
14.         'if drawing still, draw pixels in between
15.         IF drawing = 1 THEN
16.             LINE (oldmx, oldmy)-(mx, my), clr&, BF
17.         END IF
18.
19.         'draw line brush
20.         LINE (mx - (size% / 2), my - (size% / 2))-(mx + (size% / 2), my + (size% / 2)), clr&, BF
21.
22.         'use circle brush instead of line
23.         'FOR d = 1 TO size% STEP .2
24.         '    CIRCLE (mx, my), d, clr&
25.         'NEXT
26.
27.         drawing = 1: oldmx = mx: oldmy = my
28.
29.     ELSE
30.
31.         drawing = 0
32.
33.     END IF
34.
35. LOOP
36.

I have this for that, hard to test with Wondows constant interrupts for update

Code: QB64: [Select]

1. _Title "thic2 line mouse demo" 'b+ 2021-06-08
2. Const xmax = 800
3. Const ymax = 600
4. Screen _NewImage(xmax, ymax, 32)
5. _ScreenMove 360, 60
6.
7. Do
8.     While _MouseInput: Wend
9.     mx = _MouseX: my = _MouseY: mb = _MouseButton(1)
10.     If mb Then
11.         If lastmx And lastmy Then thic2 mx, my, lastmx, lastmy, 15, &HFFFFFF00
12.         lastmx = mx: lastmy = my
13.     Else
14.         lastmx = 0: lastmy = 0
15.     End If
16.     _Display
17.     _Limit 300
18. Loop
19.
20. 'this version needs fcirc and is pretty inefficient but once and a while it comes in handy
21. Sub thic2 (x1, y1, x2, y2, rThick, K As _Unsigned Long)
22.     'x1, y1 is one endpoint of line
23.     'x2, y2 is the other endpoint of the line
24.     'rThick is the radius of the tiny circles that will be drawn
25.     '   from one end point to the other to create the thick line
26.     'Yes, the line will then extend beyond the endpoints with circular ends.
27.     rThick = Int(rThick / 2): stepx = x2 - x1: stepy = y2 - y1
28.     length = Int((stepx ^ 2 + stepy ^ 2) ^ .5)
29.     If length Then
30.         dx = stepx / length: dy = stepy / length
31.         For i = 0 To length
32.             fcirc x1 + dx * i, y1 + dy * i, rThick, K
33.         Next
34.     Else
35.         fcirc x1, y1, rThick, K
36.     End If
37. End Sub
38.
39. Sub fcirc (CX As Integer, CY As Integer, R As Integer, C As _Unsigned Long)
40.     Dim Radius As Integer, RadiusError As Integer
41.     Dim X As Integer, Y As Integer
42.
43.     Radius = Abs(R)
44.     RadiusError = -Radius
45.     X = Radius
46.     Y = 0
47.
48.     If Radius = 0 Then PSet (CX, CY), C: Exit Sub
49.
50.     ' Draw the middle span here so we don't draw it twice in the main loop,
51.     ' which would be a problem with blending turned on.
52.     Line (CX - X, CY)-(CX + X, CY), C, BF
53.
54.     While X > Y
55.         RadiusError = RadiusError + Y * 2 + 1
56.         If RadiusError >= 0 Then
57.             If X <> Y + 1 Then
58.                 Line (CX - Y, CY - X)-(CX + Y, CY - X), C, BF
59.                 Line (CX - Y, CY + X)-(CX + Y, CY + X), C, BF
60.             End If
61.             X = X - 1
62.             RadiusError = RadiusError - X * 2
63.         End If
64.         Y = Y + 1
65.         Line (CX - X, CY - Y)-(CX + X, CY - Y), C, BF
66.         Line (CX - X, CY + Y)-(CX + X, CY + Y), C, BF
67.     Wend
68. End Sub
69.
70.

[Dav]

That looks good. I’ll give it a run when I get back home. Thanks, @bplus.

- Dav
