Estimating Pi
« on: August 01, 2020, 09:11:11 pm »
Of course we already have _PI, this is just a cool way to visualize it.

Code: QB64: [Select]
  1. SCREEN _NEWIMAGE(600, 600, 32)
  2.
  3. DIM inCircle AS _UNSIGNED LONG, total AS _UNSIGNED LONG
  5.
  7.     px = RND * _WIDTH
  8.     py = RND * _HEIGHT
  9.
  10.     total = total + 1
  11.     IF dist(_WIDTH / 2, _HEIGHT / 2, px, py) <= 300 THEN
  12.         inCircle = inCircle + 1
  13.         PSET (px, py), _RGB32(100)
  14.     ELSE
  15.         PSET (px, py), _RGB32(70)
  16.     END IF
  17.     pi = (inCircle * 4) / total
  18.
  19.     LOCATE 1, 1
  20.     PRINT pi
  21.
  22.     CIRCLE (_WIDTH / 2, _HEIGHT / 2), 299, _RGB32(216, 144, 22)
  23.     _DISPLAY
  25.
  26. FUNCTION dist! (x1!, y1!, x2!, y2!)
  27.     dist! = _HYPOT((x2! - x1!), (y2! - y1!))

As seen on:
« Last Edit: August 01, 2020, 09:12:53 pm by FellippeHeitor »
Logged

Offline _vince

  • Seasoned Forum Regular
  • Posts: 422
    • View Profile
Re: Estimating Pi
« Reply #1 on: August 02, 2020, 12:45:23 am »
It is a great simulation! Another one is called "buffon's needles", I wanted to write a program that demonstrates the experiment graphically and then numerically computes the results to iteratively approximated pi as more needles are dropped, open challenge I guess

ie
(https://en.wikipedia.org/wiki/Buffon%27s_needle_problem#/media/File:Buffon_needle_experiment_compressed.gif)
« Last Edit: August 02, 2020, 12:46:39 am by _vince »
Logged

Offline SierraKen

  • Forum Resident
  • Posts: 1454
    • View Profile
Re: Estimating Pi
« Reply #2 on: August 02, 2020, 12:55:12 am »
Really awesome Felippe! I have no idea how you and others find Pi, was just ages ago since school. But I remembered a year ago (which turned out to be exactly a year ago), I found code to output as many digits as you want. I posted it in another thread if anyone is interested. Just funny that it's been one year, around the Sun, using Pi LOL. Oh, I also updated it tonight to make it show how many digits it has left to calculate before it shows a Notepad of it.
« Last Edit: August 02, 2020, 01:06:16 am by SierraKen »
Logged

FellippeHeitor

  • Guest
Re: Estimating Pi
« Reply #3 on: August 02, 2020, 01:04:52 am »
Well, I guess that only proves that life is a circle, @SierraKen 😂

@_vince looking forward to your project!
Logged

Offline SierraKen

  • Forum Resident
  • Posts: 1454
    • View Profile
Re: Estimating Pi
« Reply #4 on: August 02, 2020, 01:05:25 am »
LOL true.
Logged

Offline bplus

  • Global Moderator
  • Forum Resident
  • Posts: 8053
  • b = b + ...
    • View Profile
Re: Estimating Pi
« Reply #5 on: August 02, 2020, 12:49:32 pm »
Quote from: _vince on August 02, 2020, 12:45:23 am
It is a great simulation! Another one is called "buffon's needles", I wanted to write a program that demonstrates the experiment graphically and then numerically computes the results to iteratively approximated pi as more needles are dropped, open challenge I guess

ie
(https://en.wikipedia.org/wiki/Buffon%27s_needle_problem#/media/File:Buffon_needle_experiment_compressed.gif)

A very slow road to Pi:
Code: QB64: [Select]
  1. _TITLE "Buffon Pi Calc " 'b+ 2020-08-2
  2. '2020-08-02 try this with Buffon Pi Calc  pi ~ 2 * nTrials / nCross  from
  3. ' pi ~ 2*L*N/(T*H) L=length of needle, T=spacing between lines N = Number of trials (or pins) H = number that cross line
  6.
  7. CONST xmax = 800, ymax = 600
  8. SCREEN _NEWIMAGE(xmax, ymax, 32)
  9. _DELAY .25
  12. L = 100 ' both pin length and line spacing
  13. N = 0 '   number of trials
  14. C = 0 '   number of pins that cross the line
  15. SS = 0 '  pin head and point lay in Same Space
  16.
  18.     CLS
  19.     'redraw lines
  20.     FOR y = 0 TO _HEIGHT - 1 STEP L
  21.         LINE (0, y)-(_WIDTH - 1, y), &HFFFFFFFF
  22.     NEXT
  23.
  24.     'drop a random pin
  25.     px1 = RND * (_WIDTH - 200) + 100
  26.     py1 = RND * (_HEIGHT - 200) + 100
  27.     ra = RND * _PI(2)
  28.     px2 = px1 + L * COS(ra)
  29.     py2 = py1 + L * SIN(ra)
  30.     LINE (px1, py1)-(px2, py2), _RGB32(50 + RND * 150)
  31.     N = N + 1 '                             another trial pin
  32.
  33.     'did our pin cross a line
  34.     FOR y = 0 TO _HEIGHT - 1 STEP L
  35.         IF py1 >= y AND py1 < y + L THEN ' one side of pin is between y and y + L
  36.             IF py2 >= y AND py2 < y + L THEN ' the pin did NOT cross a line both the head and point lay in same space
  37.                 SS = SS + 1
  38.             END IF
  39.         END IF
  40.     NEXT
  41.     C = N - SS
  42.     'Print results of trials
  43.     LOCATE 1, 1: PRINT "Trials:"; N
  44.     LOCATE 2, 1: PRINT "Crossings:"; C
  45.     LOCATE 3, 1: PRINT "Pi est:"; 2 * N / C
  46.     _DISPLAY
  47.     IF N = 1 THEN
  48.         _DELAY 2
  49.     ELSEIF N < 5 THEN
  50.         _DELAY 1
  51.     ELSEIF N < 10 THEN
  52.         _DELAY .5
  53.     ELSEIF N < 50 THEN
  54.         _DELAY .25
  55.     ELSEIF N < 1000 THEN
  56.         _DELAY .05
  57.     ELSEIF N <= 10000 THEN
  58.         IF N MOD 1000 = 0 THEN _DELAY .25
  59.     ELSE
  60.         IF N MOD 10000 = 0 THEN _DELAY .05
  61.     END IF
  63.
  64.
  65.
Logged

Offline _vince

  • Seasoned Forum Regular
  • Posts: 422
    • View Profile
Re: Estimating Pi
« Reply #6 on: August 02, 2020, 01:10:45 pm »
Yes, that is it. I've uncommented CLS to watch the needles pile up. Nice work, bplus
Logged
Marked as best answer by on Today at 12:36:05 am

Offline bplus

  • Global Moderator
  • Forum Resident
  • Posts: 8053
  • b = b + ...
    • View Profile
Re: Estimating Pi
« Reply #7 on: August 02, 2020, 01:25:36 pm »
  • Undo Best Answer
    • Thanks @_vince  this might be slightly more efficient for check needle crossing the line, skipping a FOR loop and maybe an extra IF THEN check:
    Code: QB64: [Select]
    1. _TITLE "Buffon Pi Calc " 'b+ 2020-08-2
    2. '2020-08-02 try this with Buffon Pi Calc  pi ~ 2 * nTrials / nCross  from
    3. ' pi ~ 2*L*N/(T*H) L=length of needle, T=spacing between lines N = Number of trials (or pins) H = number that cross line
    6.
    7. CONST xmax = 800, ymax = 600
    8. SCREEN _NEWIMAGE(xmax, ymax, 32)
    9. _DELAY .25
    12. L = 100 ' both pin length and line spacing
    13. N = 0 '   number of trials
    14. C = 0 '   number of pins that cross the line
    15. 'SS = 0 '  pin head and point lay in Same Space
    16.
    18.     CLS
    19.     'redraw lines
    20.     FOR y = 0 TO _HEIGHT - 1 STEP L
    21.         LINE (0, y)-(_WIDTH - 1, y), &HFFFFFFFF
    22.     NEXT
    23.
    24.     'drop a random pin
    25.     px1 = RND * (_WIDTH - 200) + 100
    26.     py1 = RND * (_HEIGHT - 200) + 100
    27.     ra = RND * _PI(2)
    28.     px2 = px1 + L * COS(ra)
    29.     py2 = py1 + L * SIN(ra)
    30.     LINE (px1, py1)-(px2, py2), _RGB32(50 + RND * 150)
    31.     N = N + 1 '                             another trial pin
    32.
    33.     'did our pin cross a line
    34.     IF py1 < py2 THEN
    35.         IF py2 >= 100 * INT(py1 / 100) + L THEN C = C + 1
    36.     ELSE
    37.         IF py1 >= 100 * INT(py2 / 100) + L THEN C = C + 1
    38.     END IF
    39.     'FOR y = 0 TO _HEIGHT - 1 STEP L
    40.     '    IF py1 >= y AND py1 < y + L THEN ' one side of pin is between y and y + L
    41.     '        IF py2 >= y AND py2 < y + L THEN ' the pin did NOT cross a line both the head and point lay in same space
    42.     '            SS = SS + 1
    43.     '            EXIT FOR ' speed up a little
    44.     '        END IF
    45.     '    END IF
    46.     'NEXT
    47.     'C = N - SS
    48.     'Print results of trials
    49.     LOCATE 1, 1: PRINT "Trials:"; N
    50.     LOCATE 2, 1: PRINT "Crossings:"; C
    51.     LOCATE 3, 1: PRINT "Pi est:"; 2 * N / C
    52.     _DISPLAY
    53.     IF N = 1 THEN
    54.         _DELAY 2
    55.     ELSEIF N < 5 THEN
    56.         _DELAY 2
    57.     ELSEIF N < 10 THEN
    58.         _DELAY 2
    59.     ELSEIF N < 50 THEN
    60.         _DELAY .25
    61.     ELSEIF N < 1000 THEN
    62.         _DELAY .05
    63.     ELSEIF N <= 10000 THEN
    64.         IF N MOD 1000 = 0 THEN _DELAY .25
    65.     ELSE
    66.         IF N MOD 10000 = 0 THEN _DELAY .05
    67.     END IF
    69.
    70.
    71.
    Logged

    Offline bplus

    • Global Moderator
    • Forum Resident
    • Posts: 8053
    • b = b + ...
      • View Profile
    Re: Estimating Pi
    « Reply #8 on: August 02, 2020, 02:21:40 pm »
    There might be a problem with the code or the Random Number Generator as I have a definite pattern of "random" needle color "waves" along the bottom and right borders of the screen.

    Anyone have an idea of the error, blunder or glitch?

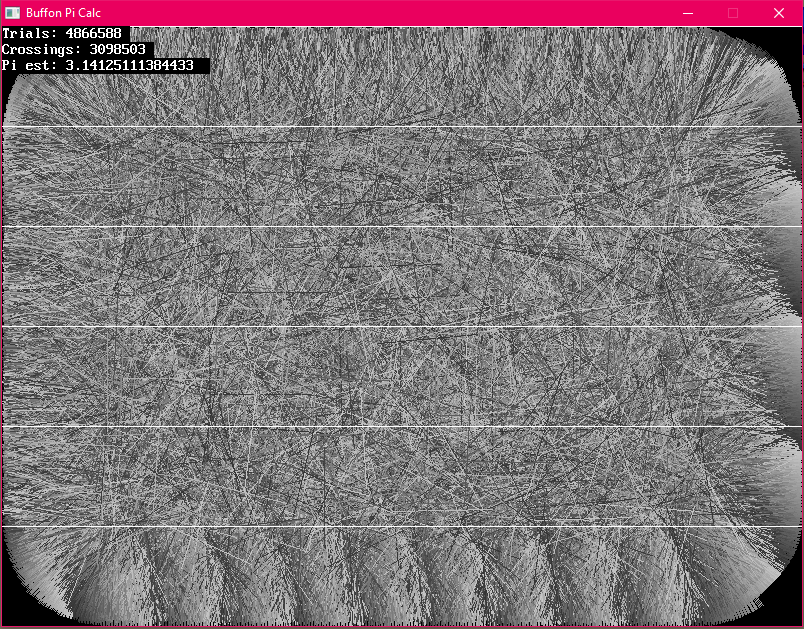

    Buffon Pi Calc.PNG


    Both versions produce this pattern.
    « Last Edit: August 02, 2020, 02:23:22 pm by bplus »
    Logged

    Offline _vince

    • Seasoned Forum Regular
    • Posts: 422
      • View Profile
    Re: Estimating Pi
    « Reply #9 on: August 02, 2020, 02:33:57 pm »
    looks like the bounds of the needle coordinates are too far inside the screen
    Logged

    Offline bplus

    • Global Moderator
    • Forum Resident
    • Posts: 8053
    • b = b + ...
      • View Profile
    Re: Estimating Pi
    « Reply #10 on: August 02, 2020, 04:01:50 pm »
    Quote from: _vince on August 02, 2020, 02:33:57 pm
    looks like the bounds of the needle coordinates are too far inside the screen

    No I don't think it was that, here is the fix of the "pattern" and even speedier calc's seems 3.140 is limit of precision.

    Code: QB64: [Select]
    1. _TITLE "Buffon Pi Calc " 'b+ 2020-08-2
    2. '2020-08-02 try this with Buffon Pi Calc  pi ~ 2 * nTrials / nCross  from
    3. ' pi ~ 2*L*N/(T*H) L=length of needle, T=spacing between lines N = Number of trials (or pins) H = number that cross line
    6.
    7. CONST xmax = 800, ymax = 600
    8. SCREEN _NEWIMAGE(xmax, ymax, 32)
    9. _DELAY .25
    12.
    13. L = 100 ' both pin length and line spacing
    14. N = 0 '   number of trials
    15. C = 0 '   number of pins that cross the line
    17.     'CLS
    18.     'redraw lines
    19.     'drop a random pin
    20.     px1 = RND * (_WIDTH - 201) + 100
    21.     py1 = RND * (_HEIGHT - 201) + 100
    22.     ra = RND * _PI(2)
    23.     IF RND < .5 THEN dir = -1 ELSE dir = 1 ' << this fixed the pattern developing along right and bottom border of screen
    24.     px2 = px1 + dir * L * COS(ra)
    25.     py2 = py1 + dir * L * SIN(ra)
    26.
    27.     N = N + 1 '                             another trial pin
    28.
    29.     'did our pin cross a line
    30.     IF py1 < py2 THEN
    31.         IF py2 >= 100 * INT(py1 / 100) + L THEN C = C + 1
    32.     ELSE
    33.         IF py1 >= 100 * INT(py2 / 100) + L THEN C = C + 1
    34.     END IF
    35.     IF N < 100000 THEN 'display
    36.         FOR y = 0 TO _HEIGHT - 1 STEP L
    37.             LINE (0, y)-(_WIDTH - 1, y), &HFFFFFFFF
    38.         NEXT
    39.         LINE (px1, py1)-(px2, py2), _RGB32(50 + RND * 150)
    40.
    41.         'Print results of trials
    42.         LOCATE 1, 1: PRINT "Trials:"; N
    43.         LOCATE 2, 1: PRINT "Crossings:"; C
    44.         LOCATE 3, 1: PRINT "Pi est:"; 2 * N / C
    45.         _DISPLAY
    46.         IF N = 1 THEN
    47.             _DELAY 2
    48.         ELSEIF N < 5 THEN
    49.             _DELAY 2
    50.         ELSEIF N < 10 THEN
    51.             _DELAY 2
    52.         ELSEIF N < 50 THEN
    53.             _DELAY .25
    54.         ELSEIF N < 1000 THEN
    55.             _DELAY .05
    56.         ELSEIF N <= 10000 THEN
    57.             IF N MOD 1000 = 0 THEN _DELAY .25
    58.         ELSE
    59.             IF N MOD 10000 = 0 THEN _DELAY .05
    60.         END IF
    61.     ELSE
    62.         IF N MOD 1000000 = 0 THEN
    63.             LOCATE 1, 1: PRINT "Trials:"; N
    64.             LOCATE 2, 1: PRINT "Crossings:"; C
    65.             LOCATE 3, 1: PRINT "Pi est:"; 2 * N / C
    66.             _DISPLAY
    67.         END IF
    68.     END IF
    70.

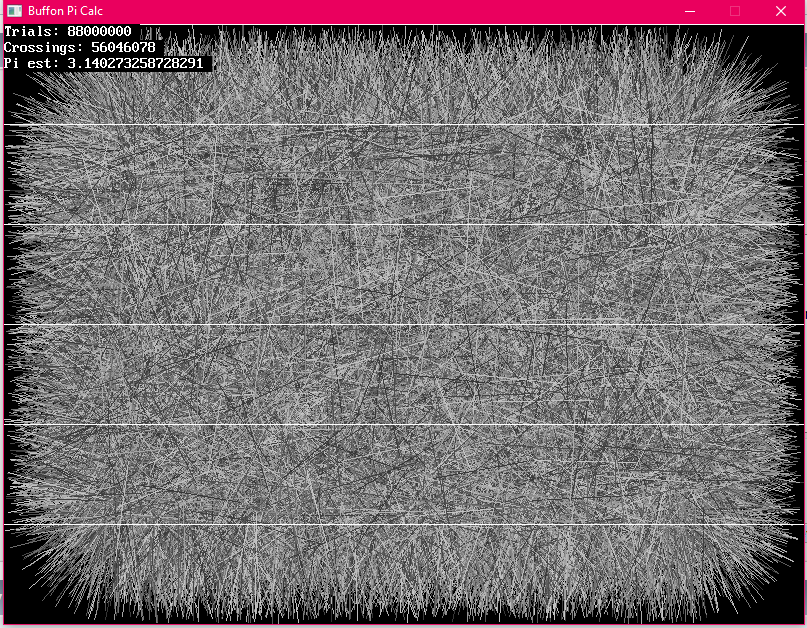

    buffon 2.PNG
