Seeking best ellipse fill function. (For everyone's sake.)

[Pete]

Oh guys, BTW - This dots "issue" affects both the SQR and non SQR looping method. I think you both realize that, but just in case.

Pete

[STxAxTIC]

Whoa man, so much to catch up on.

• I like the idea of having a CircleFill function being a special case of an EllipseFill function curried down to have a=b=r. Let's keep that idea fo sho.


• Since the tilted ellipse is a different beast than the flat one, I think a two-function dichotomy is the way to go on that issue. If one breaks in the future for some ungodly reason, someone won't be tempted to toss out both. Plus all that trig might intimidate some folks.


• As for the questions about individual pixels, dots on each end, and so on - there's a relatively simple way to settle this using the area equation. Namely, the area of an ellipse is precisely pi*a*b. So this means: Count the number of pixels put on screen for any given fill method, whether it be with or without those extra dots. Whichever one gets closest to pi*a*b is the one that best matches theory, so we keep that.


• Is an ellipse/circle of radius 1 just a point? Mathematics says no. A circle of radius zero is actually a point. Demonstrating this for a circle centered at the point (h,k), we would have:

  (x-h)^2 + (y-k)^2 = 0^2
  (x-h)^2 = -(y-k)^2
  x = h + sqrt(-(y-k)^2)

  ... which only has real solutions at x=h, y=k. So again, a point on screen corresponds to zero radius, in fact.

  If you want to fill a single pixel with a nonzero-radius-circle, your radius would need to be 0.5 in order to have a diameter of 1.

  For a radius of 1, you're now talking about a diameter of 2. At single-pixel resolution, this is again troublesome, because the next symmetric shape would be four pixels:

  **
  **

  which in fact has a radius of sqrt(2)=1.41... so we're simply fighting the properties of the computer screen at that point.



Alright, hope that satisfies a few questions on hand... as for whether we use the SQR version or the inner loop version is an interesting question. As a purist I like the SQR version rather than having a loop within a loop... It's just weird that SQR has been something to avoid in the past but miraculously now it's just as fast. Just weird...

[STxAxTIC]

Elaborating on the "area" trick...

So we're probably straining at gnats at this point. I came up with a test setup for counting the number of pixels in the ellipse to run it by the expected value. In the code below, I tuned a "fudge factor" to give the correct answer to within 0.08 pixels or so, but this is no reason to get excited. If you simply swap the a- and b- axes (rotate the ellipse 90 degrees), the area should still be the same right? Nope, it's off by 16 pixels for the same exact shape. Right away this tells me that we'll never get the precision we want on a screen without infinite resolution.

Needless to mention, the fudge factor doesn't work for any ellipse besides the test case, so I think our level of pedantic-ness can stop right around here.

Here's my test setup for that:

Code: QB64: [Select]

1. SCREEN _NEWIMAGE(800, 600, 32)
2. aaa = 75 ' SWAP THESE TO TEST
3. bbb = 150
4.
5. CALL FlatEllipseFill(200, 200, aaa, bbb, _RGBA(100, 100, 100, 100))
6.
7. area = 0
8. FOR i = 1 TO _WIDTH - 1
9.     FOR j = 1 TO _HEIGHT - 1
10.         IF POINT(i, j) <> 0 THEN area = area + 1
11.     NEXT
12. NEXT
13. PRINT area - _PI * aaa * bbb
14.
15. SUB FlatEllipseFill (ox AS INTEGER, oy AS INTEGER, a AS INTEGER, b AS INTEGER, col AS _UNSIGNED LONG)
16.     IF a = 0 OR b = 0 THEN EXIT SUB
17.     DIM h2 AS _INTEGER64
18.     DIM w2 AS _INTEGER64
19.     DIM h2w2 AS _INTEGER64
20.     DIM x AS INTEGER
21.     DIM y AS INTEGER
22.     w2 = a * a
23.     h2 = b * b
24.     h2w2 = h2 * w2
25.     LINE (ox - a, oy)-(ox + a, oy), col, BF
26.     DO WHILE y < b
27.         y = y + 1
28.         x = SQR((h2w2 - y * y * w2) \ h2) - .45 ' FUDGE FACTOR
29.         LINE (ox - x, oy + y)-(ox + x, oy + y), col, BF
30.         LINE (ox - x, oy - y)-(ox + x, oy - y), col, BF
31.     LOOP
32. END SUB
33.

In conclusion, after fiddling with this for a second, we should just draw what looks good.

[STxAxTIC]

Going once, going twice... SOLD on regular ellipses and circles.

One last question for bplus, about the modified tilted ellipse routine... Do we still need the first argument in this function? It's not referenced inside the SUB at all.

Code: QB64: [Select]

1. SUB TiltedEllipseFill (destHandle&, ox, oy, a, b, ang, col AS _UNSIGNED LONG)
2.     DIM max AS INTEGER, mx2 AS INTEGER, i AS INTEGER, j AS INTEGER
3.     DIM prc AS _UNSIGNED LONG
4.     prc = _RGB32(255, 255, 255, 255)
5.     IF a > b THEN max = a + 1 ELSE max = b + 1
6.     mx2 = max + max
7.     tef& = _NEWIMAGE(mx2, mx2)
8.     _DEST tef&
9.     _SOURCE tef& 'point wont read without this!
10.     FOR k = 0 TO 6.2832 + .05 STEP .1
11.         i = max + a * COS(k) * COS(ang) + b * SIN(k) * SIN(ang)
12.         j = max + a * COS(k) * SIN(ang) - b * SIN(k) * COS(ang)
13.         IF k <> 0 THEN
14.             LINE (lasti, lastj)-(i, j), prc
15.         ELSE
16.             PSET (i, j), prc
17.         END IF
18.         lasti = i: lastj = j
19.     NEXT
20.     DIM xleft(mx2) AS INTEGER, xright(mx2) AS INTEGER, x AS INTEGER, y AS INTEGER
21.     FOR y = 0 TO mx2
22.         x = 0
23.         WHILE POINT(x, y) <> prc AND x < mx2
24.             x = x + 1
25.         WEND
26.         xleft(y) = x
27.         WHILE POINT(x, y) = prc AND x < mx2
28.             x = x + 1
29.         WEND
30.         WHILE POINT(x, y) <> prc AND x < mx2
31.             x = x + 1
32.         WEND
33.         IF x = mx2 THEN xright(y) = xleft(y) ELSE xright(y) = x
34.     NEXT
35.     _DEST destHandle&
36.     FOR y = 0 TO mx2
37.         IF xleft(y) <> mx2 THEN LINE (xleft(y) + ox - max, y + oy - max)-(xright(y) + ox - max, y + oy - max), col, BF
38.     NEXT
39.     _FREEIMAGE tef&
40. END SUB

[bplus]

Going once, going twice... SOLD on regular ellipses and circles.

One last question for bplus, about the modified tilted ellipse routine... Do we still need the first argument in this function? It's not referenced inside the SUB at all.

Code: QB64: [Select]

1. SUB TiltedEllipseFill (destHandle&, ox, oy, a, b, ang, col AS _UNSIGNED LONG)
2.     DIM max AS INTEGER, mx2 AS INTEGER, i AS INTEGER, j AS INTEGER
3.     DIM prc AS _UNSIGNED LONG
4.     prc = _RGB32(255, 255, 255, 255)
5.     IF a > b THEN max = a + 1 ELSE max = b + 1
6.     mx2 = max + max
7.     tef& = _NEWIMAGE(mx2, mx2)
8.     _DEST tef&
9.     _SOURCE tef& 'point wont read without this!
10.     FOR k = 0 TO 6.2832 + .05 STEP .1
11.         i = max + a * COS(k) * COS(ang) + b * SIN(k) * SIN(ang)
12.         j = max + a * COS(k) * SIN(ang) - b * SIN(k) * COS(ang)
13.         IF k <> 0 THEN
14.             LINE (lasti, lastj)-(i, j), prc
15.         ELSE
16.             PSET (i, j), prc
17.         END IF
18.         lasti = i: lastj = j
19.     NEXT
20.     DIM xleft(mx2) AS INTEGER, xright(mx2) AS INTEGER, x AS INTEGER, y AS INTEGER
21.     FOR y = 0 TO mx2
22.         x = 0
23.         WHILE POINT(x, y) <> prc AND x < mx2
24.             x = x + 1
25.         WEND
26.         xleft(y) = x
27.         WHILE POINT(x, y) = prc AND x < mx2
28.             x = x + 1
29.         WEND
30.         WHILE POINT(x, y) <> prc AND x < mx2
31.             x = x + 1
32.         WEND
33.         IF x = mx2 THEN xright(y) = xleft(y) ELSE xright(y) = x
34.     NEXT
35.     _DEST destHandle&
36.     FOR y = 0 TO mx2
37.         IF xleft(y) <> mx2 THEN LINE (xleft(y) + ox - max, y + oy - max)-(xright(y) + ox - max, y + oy - max), col, BF
38.     NEXT
39.     _FREEIMAGE tef&
40. END SUB

Sure it is, and it is vital. Just before drawing the lines this is set in code:

Code: QB64: [Select]

1.     _DEST destHandle&

The sub works in isolated area to draw the outline and then calc the left and right boundaries of the interior line by line.
It then draws those lines at the destination.

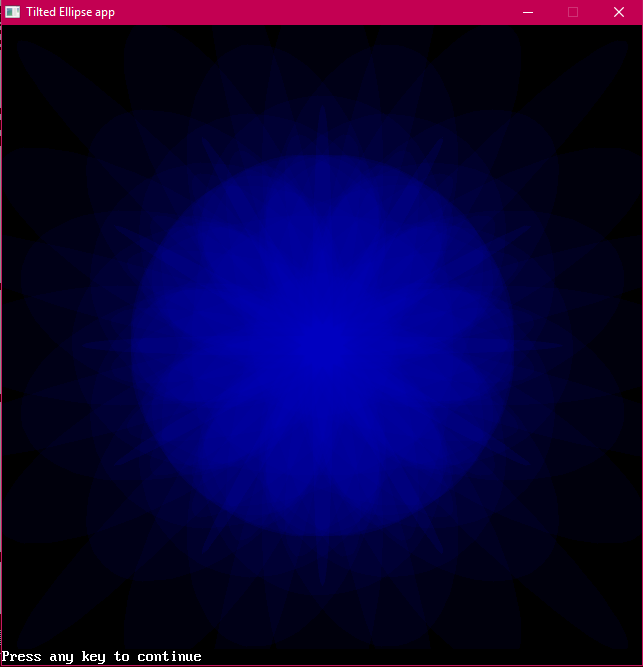

Here is a demo app:

Code: QB64: [Select]

1. _TITLE "Tilted Ellipse app" ' B+ 2019-02-12
2.
3. CONST xmx = 640
4. CONST ymx = 640
5. SCREEN _NEWIMAGE(xmx, ymx, 32)
6. _SCREENMOVE 340, 40
7. DIM k AS _UNSIGNED LONG
8. c = xmx / 2
9. FOR r = 210 TO 0 STEP -30
10.     stepper = stepper + 30
11.     offset = offset - _PI(2 / 24)
12.     FOR a = 0 TO 2 * _PI - .001 STEP _PI(2 / 12)
13.         x = c + r * COS(a + offset)
14.         y = c + r * SIN(a + offset)
15.         k = _RGBA32(0, 0, 200, 15)
16.         TiltedEllipseFill 0, x, y, 250 - stepper, stepper, a + offset, k
17.         _LIMIT 12
18.     NEXT
19. NEXT
20.
21. SUB TiltedEllipseFill (destHandle&, x0, y0, a, b, ang, c AS _UNSIGNED LONG)
22.     DIM max AS INTEGER, mx2 AS INTEGER, i AS INTEGER, j AS INTEGER
23.     DIM prc AS _UNSIGNED LONG
24.     prc = _RGB32(255, 255, 255, 255)
25.     IF a > b THEN max = a + 1 ELSE max = b + 1
26.     mx2 = max + max
27.     tef& = _NEWIMAGE(mx2, mx2)
28.     _DEST tef&
29.     _SOURCE tef& 'point wont read without this!
30.     FOR k = 0 TO 6.2832 + .05 STEP .1
31.         i = max + a * COS(k) * COS(ang) + b * SIN(k) * SIN(ang)
32.         j = max + a * COS(k) * SIN(ang) - b * SIN(k) * COS(ang)
33.         IF k <> 0 THEN
34.             LINE (lasti, lastj)-(i, j), prc
35.         ELSE
36.             PSET (i, j), prc
37.         END IF
38.         lasti = i: lastj = j
39.     NEXT
40.     DIM xleft(mx2) AS INTEGER, xright(mx2) AS INTEGER, x AS INTEGER, y AS INTEGER
41.     FOR y = 0 TO mx2
42.         x = 0
43.         WHILE POINT(x, y) <> prc AND x < mx2
44.             x = x + 1
45.         WEND
46.         xleft(y) = x
47.         WHILE POINT(x, y) = prc AND x < mx2
48.             x = x + 1
49.         WEND
50.         WHILE POINT(x, y) <> prc AND x < mx2
51.             x = x + 1
52.         WEND
53.         IF x = mx2 THEN xright(y) = xleft(y) ELSE xright(y) = x
54.     NEXT
55.     _DEST destHandle&
56.     FOR y = 0 TO mx2
57.         IF xleft(y) <> mx2 THEN LINE (xleft(y) + x0 - max, y + y0 - max)-(xright(y) + x0 - max, y + y0 - max), c, BF
58.     NEXT
59.     _FREEIMAGE tef&
60. END SUB
61.
62.

After playing around trying to remove Dot at top and bottom, I have decided CircleFill draws a much more pleasing symmetric circle without dots and slightly faster than best FlatEllipseFill. If you try a CIRCLE overlap test over CircleFill you will see overlap all the way around the edge or mostly. If you do a CIRCLE overlap test for FlatEllipseFill, you will see a dotted border overlap all the way around the edge ie not such a good fit. Therefore, CircleFill is staying in my tool box.

You can do FlatEllipse with CIRCLE sub but I doubt the outline would fit our best FlatEllipseFill, therefore FlatEllipseFill will need a partner FlatEllipse sub or a switch to do just the outlines, I favor the latter, one sub with a switch for filling or not.

In my opinion QB64 should be doing these things with Circle as it does with LINE with an "F" switch, THEN all that would be needed is what we have for TiltedEllipse with an tfFill switch.

I wonder what the code for CIRCLE looks like from under-the-hood, how hard would it be to update that?

[SMcNeill]

One thing: It needs to preserve and restore the DEST and SOURCE to pre-execution settings:

Code: QB64: [Select]

1. SUB TiltedEllipseFill (destHandle&, ox, oy, a, b, ang, col AS _UNSIGNED LONG)
2.     DIM max AS INTEGER, mx2 AS INTEGER, i AS INTEGER, j AS INTEGER
3.     DIM prc AS _UNSIGNED LONG
4.
5.     DIM D AS INTEGER, S AS INTEGER 'to preserve old settings
6.     D = _DEST: S = _SOURCE
7.
8.     prc = _RGB32(255, 255, 255, 255)
9.     IF a > b THEN max = a + 1 ELSE max = b + 1
10.     mx2 = max + max
11.     tef& = _NEWIMAGE(mx2, mx2)
12.     _DEST tef&
13.     _SOURCE tef& 'point wont read without this!
14.     FOR k = 0 TO 6.2832 + .05 STEP .1
15.         i = max + a * COS(k) * COS(ang) + b * SIN(k) * SIN(ang)
16.         j = max + a * COS(k) * SIN(ang) - b * SIN(k) * COS(ang)
17.         IF k <> 0 THEN
18.             LINE (lasti, lastj)-(i, j), prc
19.         ELSE
20.             PSET (i, j), prc
21.         END IF
22.         lasti = i: lastj = j
23.     NEXT
24.     DIM xleft(mx2) AS INTEGER, xright(mx2) AS INTEGER, x AS INTEGER, y AS INTEGER
25.     FOR y = 0 TO mx2
26.         x = 0
27.         WHILE POINT(x, y) <> prc AND x < mx2
28.             x = x + 1
29.         WEND
30.         xleft(y) = x
31.         WHILE POINT(x, y) = prc AND x < mx2
32.             x = x + 1
33.         WEND
34.         WHILE POINT(x, y) <> prc AND x < mx2
35.             x = x + 1
36.         WEND
37.         IF x = mx2 THEN xright(y) = xleft(y) ELSE xright(y) = x
38.     NEXT
39.     _DEST destHandle&
40.     FOR y = 0 TO mx2
41.         IF xleft(y) <> mx2 THEN LINE (xleft(y) + ox - max, y + oy - max)-(xright(y) + ox - max, y + oy - max), col, BF
42.     NEXT
43.     _DEST D: _DEST S 'restore those old settings
44.     _FREEIMAGE tef&
45. END SUB
46.

  These lines seem odd to me:

        WHILE POINT(x, y) = prc AND x < mx2
            x = x + 1
        WEND
        WHILE POINT(x, y) <> prc AND x < mx2
            x = x + 1
        WEND

Isn't this a case of WHILE x < mx 2 ??

If POINT(x,y) = prc then we increment x... If POINT(x,y) <> prc then we increment x...  Is there even a need for those checks?

[STxAxTIC]

Crap, you raise an excellent point about having having shapes that are *not* filled. This is super easy to deal with - the reason I exclaim thusly is that nobody raised that idea til now.

EDIT

On second thought, the only shape not inherently "covered" (no pun) in QB64 is the un-filled, tilted ellipse. It covers all the rest.

[bplus]

Yes, I guess since the sub changes Source and Dest, it does need to be changed back, good catch Steve. I guess I didn't get caught because I never drew anything other than TiltedEllipseFills in my demo.

Steve:

  These lines seem odd to me:

I am sure they may seem odd to anyone, who hasn't tried drawing the lines at angles = yuck!

In order to have a pretty filled titled ellipse without overlap nor holes, you have to draw either vertical or horizontal lines or if you are really good, draw non overlapping boxes (which I think Vince attempted at one point).

To do this I used STATIC's formula's to draw the ellipse in an isolated area.
Then I went from top to bottom down the y axis and with the help of POINT found the left and right edge of the ellipse along the flat line. This is why the ellipse had to be drawn in an isolated area, so POINT only finds the ellipse points.

With the edges detected along flat lines we can draw a clean,no hole, no overlapping Tilted Ellipse Fill, at the place designated at destHandle&.

This is the code block that is finding the left and right edges of the tilted ellipse drawn in the isolated area:

Code: QB64: [Select]

1.     DIM xleft(mx2) AS INTEGER, xright(mx2) AS INTEGER, x AS INTEGER, y AS INTEGER
2.     FOR y = 0 TO mx2
3.         x = 0
4.         WHILE POINT(x, y) <> prc AND x < mx2
5.             x = x + 1
6.         WEND
7.         xleft(y) = x
8.         WHILE POINT(x, y) = prc AND x < mx2
9.             x = x + 1
10.         WEND
11.         WHILE POINT(x, y) <> prc AND x < mx2
12.             x = x + 1
13.         WEND
14.         IF x = mx2 THEN xright(y) = xleft(y) ELSE xright(y) = x
15.     NEXT
16.

You have to find the edges on the same line and you have 3 cases:
1. no edge
2. the left and right edge are the same
3. the left and right edge are different

The added condition
 AND x < mx2
keeps x inside the bounds of the isolated drawing area when one or no POINTs are found.

Finally, when you go to draw the actual lines, you must make sure xLeft(y) is not at the right boundry ie no point of the ellipse was found for that y value.

[STxAxTIC]

A very quick aside:

bplus is right about the inherent CIRCLE command (with eccentricity) not perfectly agreeing without our results. The difference is SO minuscule that our algorithms should probably not change though. Check out this simple mod that lets you send two colors to the ellipse function, with one color being just for the outline. We won't be keeping this of course:

Code: QB64: [Select]

1. ' Video settings, Global declarations:
2.
3. SCREEN _NEWIMAGE(800, 600, 32)
4.
5. FOR k = 1 TO 100
6.     CALL EllipseFill(320, 240, 250, 175, _RGBA(0, 0, 255, 128), _RGBA(0, 255, 0, 128))
7. NEXT
8.
9. ' FUNCTIONs and/or SUBs:
10.
11. SUB EllipseFill (ox AS INTEGER, oy AS INTEGER, a AS INTEGER, b AS INTEGER, col1 AS _UNSIGNED LONG, col2 AS _UNSIGNED LONG)
12.     '  ox  = center x coordinate
13.     '  oy  = center y coordinate
14.     '   a  = semimajor axis
15.     '   b  = semiminor axis
16.     ' col1 = outline color
17.     ' col2 = fill color
18.     IF a = 0 OR b = 0 THEN EXIT SUB
19.     DIM h2 AS _INTEGER64
20.     DIM w2 AS _INTEGER64
21.     DIM h2w2 AS _INTEGER64
22.     DIM x AS INTEGER
23.     DIM y AS INTEGER
24.     w2 = a * a
25.     h2 = b * b
26.     h2w2 = h2 * w2
27.     LINE (ox - a, oy)-(ox + a, oy), col2, BF
28.     DO WHILE y < b
29.         y = y + 1
30.         x = SQR((h2w2 - y * y * w2) \ h2)
31.         LINE (ox - x, oy + y)-(ox + x, oy + y), col2, BF
32.         LINE (ox - x, oy - y)-(ox + x, oy - y), col2, BF
33.     LOOP
34.     IF col1 <> col2 THEN CIRCLE (ox, oy), a, col1, , , b / a
35. END SUB
36.

I suppose the a possible best solution it to just draw the thing, PAINT the inside like I did a few pages ago, and let the user place that on screen using image handles

EDIT

This will work fastest for the tilted case, as its our only option.

For nontilted things, I guess the challenge is back out there? Oh god...

[bplus]

I suppose the best solution it to just draw the thing, PAINT the inside like I did a few pages ago, and let the user place that on screen using image handles.

As I recall, we had discovered PAINT is slow and doesn't do alpha... I listed problems of PAINT way back in this thread. This is why  the Tilted Ellipse Fill routine jumps through so many hoops to avoid it!

Again I say, can we do something with QB64 CIRCLE routine ie add fills to what it already does?

[STxAxTIC]

Again I say, can we do something with QB64 CIRCLE routine ie add fills to what it already does?

I defer you to [banned user] on that one...

[bplus]

OK maybe one of these days I will dig into the Source Code...

In meantime, I am keeping CircleFill in my tool box and IMO it should go in the forum's as the number 1 entry!

When I need an ellipse fill (and really how often is that?), I will use Titled Ellipse Fill (and no Fill switch?) because that code automatically includes the ability to do Flat Ellipses. This is the one with Steve's S and D fix.

If I really need speedier Flat Ellipses then STATIC's fudge of Pete's variation will do fine!

But I am trying to imagine Titled Ellipse No Fill, it could be draw directly to source no fooling around with isolated drawing. So build a switch onto Tilted Ellipse Fill or a whole separate sub? This is the question that remains for me because the requirements are so different.

[bplus]

For the record, Titled Ellipse Fill does not compare well with CIRCLE with same radius as a and aspect b/a. Look at what happens when b exceeds a! but I am supposed to switch radius for CIRCLE when b > a.

Code: QB64: [Select]

1. _TITLE "Tilted Ellipse Fill shape Study" ' B+ 2019-02-14
2. 'compare to CIRCLE with aspect = a/b
3.
4.
5. SCREEN _NEWIMAGE(1000, 700, 32)
6. _SCREENMOVE 180, 20
7.
8. FOR i = 0 TO 340 'draw ellipse at various heights and compare to CIRCLE with aspect i/300
9.     CLS
10.     PRINT "b Radius"; i; "   press any to get to 400, <backspace> to go back one, <esc> for next test."
11.
12.     TiltedEllipseFill 0, 500, 350, 300, i, 0, _RGBA(255, 255, 255, 100)
13.     IF i <> 0 THEN CIRCLE (500, 350), 300, _RGBA(255, 255, 255, 100), , , i / 300
14.     k$ = ""
15.     WHILE LEN(k$) = 0: k$ = INKEY$: WEND
16.     IF k$ = CHR$(8) THEN i = i - 2
17.     IF k$ = CHR$(27) THEN EXIT FOR
18. NEXT
19.
20. SUB TiltedEllipseFill (destHandle&, ox, oy, a, b, ang, col AS _UNSIGNED LONG)
21.     DIM max AS INTEGER, mx2 AS INTEGER, i AS INTEGER, j AS INTEGER
22.     DIM prc AS _UNSIGNED LONG
23.
24.     DIM D AS INTEGER, S AS INTEGER 'to preserve old settings
25.     D = _DEST: S = _SOURCE
26.
27.     prc = _RGB32(255, 255, 255, 255)
28.     IF a > b THEN max = a + 1 ELSE max = b + 1
29.     mx2 = max + max
30.     tef& = _NEWIMAGE(mx2, mx2)
31.     _DEST tef&
32.     _SOURCE tef& 'point wont read without this!
33.     FOR k = 0 TO 6.2832 + .05 STEP .1
34.         i = max + a * COS(k) * COS(ang) + b * SIN(k) * SIN(ang)
35.         j = max + a * COS(k) * SIN(ang) - b * SIN(k) * COS(ang)
36.         IF k <> 0 THEN
37.             LINE (lasti, lastj)-(i, j), prc
38.         ELSE
39.             PSET (i, j), prc
40.         END IF
41.         lasti = i: lastj = j
42.     NEXT
43.     DIM xleft(mx2) AS INTEGER, xright(mx2) AS INTEGER, x AS INTEGER, y AS INTEGER
44.     FOR y = 0 TO mx2
45.         x = 0
46.         WHILE POINT(x, y) <> prc AND x < mx2
47.             x = x + 1
48.         WEND
49.         xleft(y) = x
50.         WHILE POINT(x, y) = prc AND x < mx2
51.             x = x + 1
52.         WEND
53.         WHILE POINT(x, y) <> prc AND x < mx2
54.             x = x + 1
55.         WEND
56.         IF x = mx2 THEN xright(y) = xleft(y) ELSE xright(y) = x
57.     NEXT
58.     _DEST destHandle&
59.     FOR y = 0 TO mx2
60.         IF xleft(y) <> mx2 THEN LINE (xleft(y) + ox - max, y + oy - max)-(xright(y) + ox - max, y + oy - max), col, BF
61.     NEXT
62.     _DEST D: _DEST S 'restore those old settings
63.     _FREEIMAGE tef&
64. END SUB
65.
66.

[STxAxTIC]

I have to read the previous post in the reflection of a funhouse mirror to make sense of it...

OK maybe one of these days I will dig into the Source Code...

Here's what you do. Find every instance of CIRCLE in the qb64 source code, and make a copy of it - CIRCLE2 or whatever. As soon as you can use CIRCLE2 to completely replace circle, you're ready to do the filling and rename CIRCLE2 to whatever. If successful, the result will be your occult object and not much more unfortunately, it was decided long ago that we won't add this kind of stuff to the language itself until someone clearly and intelligently defines when to stop. That has never occurred and I doubt it will.

In meantime, I am keeping CircleFill in my tool box...

Based on the outline/pixels issue, I agree with this. Do you mind posting your freshest copy of the function? Be sure to nerf it down to handle just circles, which I imagine render without boobs.

...and IMO it should go in the forum's as the number 1 entry!

If the Librarian can figure out how to arrange posts alphabetically instead of by date, you may have your wish on this until an A- or B- named function claims the #1 spot.

If I really need speedier Flat Ellipses then STATIC's fudge of Pete's variation will do fine!

Something tells me you swapped the names here, but who's keeping track? Authors/contributors/useful testers will be credited in alphabetical order in the Toolbox forum. Whoever wants to do the research can click the link to this thread any they can see who worked on what.

But I am trying to imagine Titled Ellipse No Fill, it could be draw directly to source no fooling around with isolated drawing. So build a switch onto Tilted Ellipse Fill or a whole separate sub? This is the question that remains for me because the requirements are so different.

That's a great issue. I prefer our tooling stay as pure as possible, i.e. avoiding anything that brings in complexity with underscore commands, image handles, and all that, so long as it does the best job. (Just a weird preference.) Since unfilled ellipses are just PSET and LINE, I'm all about having two functions, one for filled, one for unfilled.

[STxAxTIC]

For the record, Titled Ellipse Fill does not compare well with CIRCLE with same radius as a and aspect b/a. Look at what happens when b exceeds a! but I am supposed to switch radius for CIRCLE when b > a.

Are you knocking down straw men intentionally, or just need some coffee?
