Author Topic: Pipecom Browser for Filename$ (Read 10802 times)

NOVARSEG · « **Reply #15 on:** February 09, 2021, 12:06:06 am »

Ok here is a negative h BMP

W = 1024
H = -831

It says 831 at the bottom of the image, but that is an ABS value

bplus · « **Reply #16 on:** February 09, 2021, 02:51:28 pm »

@NOVARSEG

Thanks I am convinced just changing H to Long Type is not enough. But we knew that, I guess, I did after I went and reread everything again. Steve never updated his fixed Sub with another?

I checked back to last version you posted, it may work but it isn't in a handy, portable and convenient Sub like I have here. So get to work man! ;-))

Sorry, the Interpreter muse has struck me again (won't Aurel be thrilled?) or I'd be fixing myself.

This pipecom code and array displayer are some new features planned for making editable code as well as retrieving files.
I have found my way to a "No double quotes for strings" theory, just bare naked text.

PS might need a Line Editor, not a full fledged WP.

NOVARSEG · « **Reply #17 on:** February 09, 2021, 08:12:27 pm »

Been awhile since I wrote a SUB

Do I have to put my DIMS inside the sub? I like my DIMS at the start of a program.

SMcNeill · « **Reply #18 on:** February 09, 2021, 08:30:33 pm »

Quote from: NOVARSEG on February 09, 2021, 08:12:27 pm

Been awhile since I wrote a SUB

Do I have to put my DIMS inside the sub? I like my DIMS at the start of a program.

Are the global, or local variables?

DIM inside a sub keeps the values local to the sub, whereas DIM SHARED in the main module makethem global.

NOVARSEG · « **Reply #19 on:** February 09, 2021, 09:37:24 pm »

OK the sub would have to be something like

SUB loadBMP24 (Filename as string$, W AS LONG, H AS LONG, HANDLE AS LONG)
retunrs W width of BMP
returns H height of BMP
returns handle generated from " HANDLE = _NEWIMAGE(W, ABS(H), 32) "
input Filename
****

Gettimg a "memory not initialized" these lines of code are inside the sub

SCREEN _NEWIMAGE(W, (ABS(H)), 32)
_PUTIMAGE (0, 0), HANDLE
_MEMFREE a

the _MEMFREE a is throwing the error

*******
later DIM SHARED a AS _MEM

fixed that error

bplus · « **Reply #20 on:** February 09, 2021, 09:46:24 pm »

@NOVARSEG

Once you get image loaded under handle you should be able to just pass handle back to main code through a Function that has type Long & on end of it's name.

I've got you started in BMP thread.

NOVARSEG · « **Reply #21 on:** February 09, 2021, 10:06:30 pm »

I have a SUB working

SUB loadBMP24 (FILENAME AS STRING, W AS LONG, H AS LONG, HANDLE AS LONG)

returns W width of BMP
returns H height of BMP
returns handle generated from " HANDLE = _NEWIMAGE(W, ABS(H), 32) "
input Filename

the SUB does not display any image. That has to be done outside the SUB

Over to the other thread

SMcNeill · « **Reply #22 on:** February 09, 2021, 10:12:16 pm »

Since you guys are almost done reinventing the wheel (24-bit BMP loader in this case), I’d like to also refer you to the wiki: https://www.qb64.org/wiki/Bitmaps

With it as a reference, you can expand and load 1, 4, 8 bit BMP files too, next. :)

NOVARSEG · « **Reply #23 on:** February 09, 2021, 11:51:00 pm »

Gonna try LOADIMAGE one day :)

bplus · « **Reply #24 on:** February 10, 2021, 12:43:12 am »

Quote from: NOVARSEG on February 09, 2021, 11:51:00 pm

Gonna try LOADIMAGE one day :)

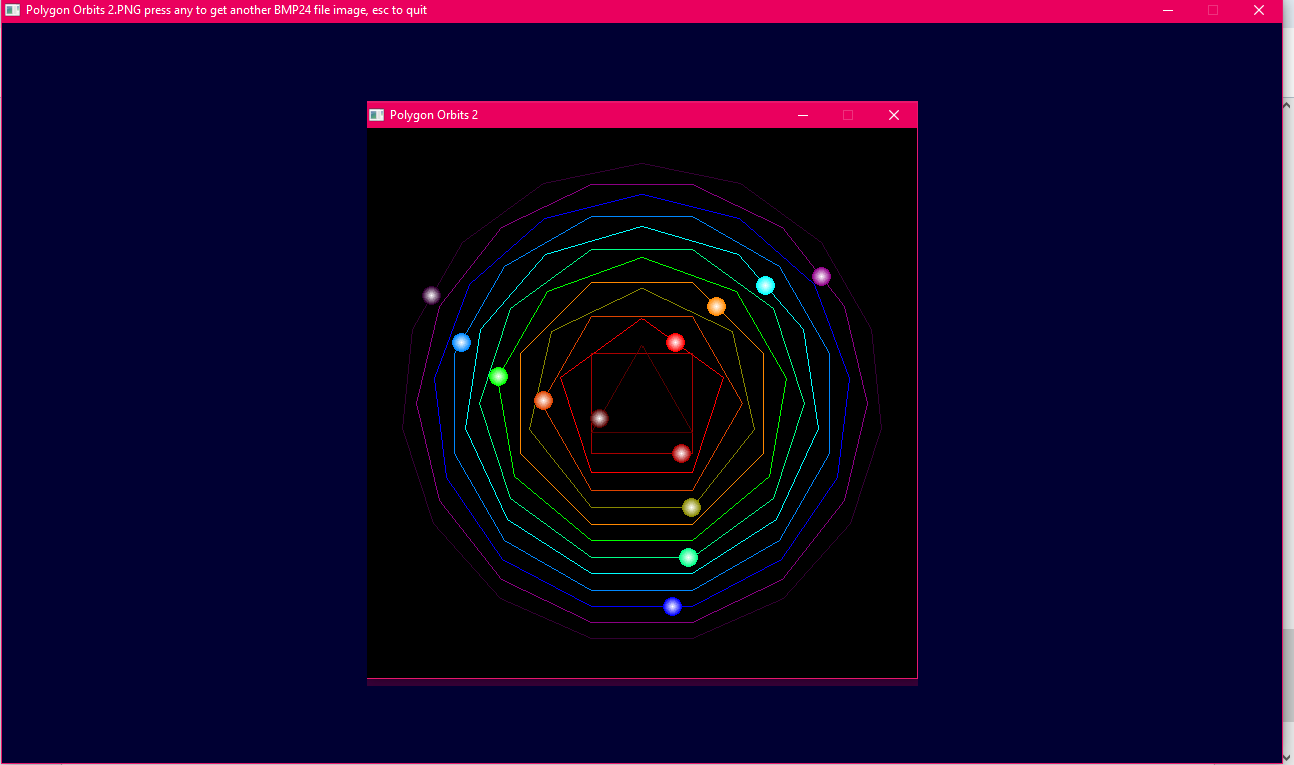

Pipecom Browser 3 All da Images! Kicks Butt with BMP24 files, gets them right, in fact this is faster than Windows.
But my fan is running?

Code: QB64: [Select]

Option _Explicit
_Title "Pipecom Browser for BMP24 File Display" 'b+ testing one array system with pipecom
' Thanks to Spriggsy, Zak, for convincing me pipecom is better!
' Using Steve's fixed BMP24 loader
' Also thanks to Dav for 1 window for file and folder selection idea
' Also thanks to NOVARSEG who got me going on this for a better filename$ retriever
' 2021-02-10 Browser 2 update with LoadBMP24 Sub
' 2021-02-10 Browser 3, just _Loadimage

Declare Library "pipecom"
    Function pipecom$ (cmd As String)
End Declare

Screen _NewImage(1280, 740, 32)
_Delay .25
_ScreenMove 65, 0 ' your screen might need different

ReDim myFile$
ReDim As Long col, row, charW, charH, W, H, image
Color , &HFF000033
Cls
Do 'test our new function
    ScnState 0
    col = 16: row = 3: charW = 128: charH = 40
    myFile$ = GetFileName$(row, col, charW, charH)
    ScnState -1 ' <<<<<<<<<<<<<<<<<<<<<<<<<<< this is supposed to restore back color
    'image& = loadBMP24&(myFile$)
    image = _LoadImage(myFile$)
    'loadBMP24 myFile$, W, H, image
    Color , &HFF000033
    Cls
    If image <> 0 Then
        _Title myFile$ + " press any to get another BMP24 file image, esc to quit"
        _PutImage ((_Width - _Width(image&)) / 2, (_Height - _Height(image&)) / 2)-Step(_Width(image&), _Height(image&)), image&, 0
        Sleep
        _FreeImage image&
    End If
Loop Until _KeyDown(27)

Function GetFileName$ (LocateR, LocateC, CharWide, CharHigh) ' < careful Locate Row, Col NOT x, y
    'This Funtion needs:
    ' pipecom.h in same folder as QB64.exe
    ' This in main code section near top:
    ' Declare Library "pipecom"
    '    Function pipecom$ (cmd As String)
    ' End Declare
    ' sub  Split source$, delimiter$, arr$()
    ' function GetArrayItem$(x, y, w, h, arr$())

    ReDim As String d, s, dr
    ReDim As _Unsigned Long fc, bc
    fc = _DefaultColor: bc = _BackgroundColor ' save colors
    Getfolder:
    Color fc, bc: Cls
    d = pipecom("dir /n /o:gend") '/n files on right (40) /o = order g for group dirs first, e extension, name, date
    d = Left$(d, Len(d) - 1) ' always ends with delimiter
    ReDim dir(1 To 1) As String
    Split d, Chr$(10), dir()
    s = GetArrayItem$(LocateR, LocateC, CharWide, CharHigh, dir())
    If InStr(s, "<DIR>") Then 'isolate name
        dr = _Trim$(Mid$(s, InStr(s, "<DIR>") + 6))
        ChDir dr
        GoTo Getfolder
    ElseIf InStr(s, "AM") Or InStr(s, "PM") Then
        GetFileName$ = _Trim$(Mid$(s, 40))
        Color fc, bc: Cls
    ElseIf s = "" Then 'cancel, escape, bad line
        Color fc, bc: Cls ' will return empty string
    End If
End Function

Sub Split (SplitMeString As String, delim As String, loadMeArray() As String)
    Dim curpos As Long, arrpos As Long, LD As Long, dpos As Long 'fix use the Lbound the array already has
    curpos = 1: arrpos = LBound(loadMeArray): LD = Len(delim)
    dpos = InStr(curpos, SplitMeString, delim)
    Do Until dpos = 0
        loadMeArray(arrpos) = Mid$(SplitMeString, curpos, dpos - curpos)
        arrpos = arrpos + 1
        If arrpos > UBound(loadMeArray) Then ReDim _Preserve loadMeArray(LBound(loadMeArray) To UBound(loadMeArray) + 1000) As String
        curpos = dpos + LD
        dpos = InStr(curpos, SplitMeString, delim)
    Loop
    loadMeArray(arrpos) = Mid$(SplitMeString, curpos)
    ReDim _Preserve loadMeArray(LBound(loadMeArray) To arrpos) As String 'get the ubound correct
End Sub


' Help: all this I hope is intuitive so Help window is provided
' "Mouse, mouse wheel, and arrow keys should work as expected for item selection."
' "Press spacebar to select a highlighted item or just click it."
' "Use number(s) + enter to select an array item by it's index number,"
' "backspace will remove last number pressed, delete will clear a number started.
' "Numbers started are shown in bottom right PgDn bar."
' "Enter will also select the highlighted item, if no number has been started."
' "Home starts you at lowest array index, End highlights then highest index."
' "Use PgUp and PgDn keys to flip through pages of array items."
'
' Escape to Cancel Return "" else Return the selected string from the array
Function GetArrayItem$ (LocateRoww, LocateColumn, BoxWidth, BoxHeight, Arr() As String)
    'Notes: locateRow, locateColumn for top right corner of selection box on screen in characters for LOCATE.
    'boxWidth and boxHeight are in character units, again for locate and print at correct places.
    'All displaying is restricted to inside the box, which has PgUP and PgDn as top and bottom lines in the display.

    ReDim As Long maxWidth, maxHeight, page, hlite, mx, my, locateRow, lastMX, lastMY, row, mb
    ReDim As Long lba, uba, choice, kh, index
    Dim clrStr As String, b As String

    'ScnState 0 ' use out side this function before and after
    locateRow = LocateRoww + 1 'fix a miscalc in coding
    maxWidth = BoxWidth '       number of characters in box
    maxHeight = BoxHeight - 2 ' number of lines displayed of array at one time = 1 page
    lba = LBound(arr)
    uba = UBound(arr)
    page = 0
    hlite = 0 '                 line in display ready for selection by spacebar or if no number is started, enter
    clrStr$ = Space$(maxWidth) 'clearing a display line

    GoSub update '              show the beginning of the array items for selection
    choice = -1719
    Do 'until get a selection or demand exit

        'handle the key stuff
        kh& = _KeyHit
        If kh& Then
            If kh& > 0 And kh& < 255 Then
                If InStr("0123456789", Chr$(kh&)) > 0 Then
                    b$ = b$ + Chr$(kh&): GoSub update
                ElseIf kh& = 13 Then 'enter pressed check if number is being entered?
                    If Len(b$) Then
                        If Val(b$) >= lba And Val(b$) <= uba Then 'we have number started
                            choice = Val(b$): Exit Do
                        Else 'clear b$ to show some response to enter
                            b$ = "": GoSub update 'clear the value that doesn't work
                        End If
                    Else
                        choice = hlite + page * maxHeight + lba 'must mean to select the highlighted item
                    End If
                ElseIf kh& = 27 Then
                    Exit Do 'escape clause offered to Cancel selection process
                ElseIf kh& = 32 Then
                    choice = hlite + page * maxHeight + lba 'best way to choose highlighted selection
                ElseIf kh& = 8 Then 'backspace to edit number
                    If Len(b$) Then b$ = Left$(b$, Len(b$) - 1): GoSub update
                End If
            Else
                Select Case kh& 'choosing sections of array to display and highlighted item
                    Case 21248 ' delete so clear b$
                        b$ = "": GoSub update
                    Case 20736 ' pg dn
                        If (page + 1) * maxHeight + lba <= uba Then page = page + 1: GoSub update
                    Case 18688 ' pg up
                        If (page - 1) * maxHeight + lba >= lba Then page = page - 1: GoSub update
                    Case 18432 ' up
                        If hlite - 1 < 0 Then
                            If page > 0 Then
                                page = page - 1: hlite = maxHeight - 1: GoSub update
                            End If
                        Else
                            hlite = hlite - 1: GoSub update
                        End If
                    Case 20480 'down
                        If (hlite + 1) + page * maxHeight + lba <= uba Then 'ok to move up
                            If hlite + 1 > maxHeight - 1 Then
                                page = page + 1: hlite = 0: GoSub update
                            Else
                                hlite = hlite + 1: GoSub update
                            End If
                        End If
                    Case 18176 'home
                        page = 0: hlite = 0: GoSub update
                    Case 20224 ' end
                        page = Int((uba - lba) / maxHeight): hlite = maxHeight - 1: GoSub update
                End Select
            End If
        End If

        'handle the mouse stuff
        While _MouseInput
            If _MouseWheel = -1 Then 'up?
                If hlite - 1 < 0 Then
                    If page > 0 Then
                        page = page - 1: hlite = maxHeight - 1: GoSub update
                    End If
                Else
                    hlite = hlite - 1: GoSub update
                End If
            ElseIf _MouseWheel = 1 Then 'down?
                If (hlite + 1) + page * maxHeight + lba <= uba Then 'ok to move up
                    If hlite + 1 > maxHeight - 1 Then
                        page = page + 1: hlite = 0: GoSub update
                    Else
                        hlite = hlite + 1: GoSub update
                    End If
                End If
            End If
        Wend
        mx = Int((_MouseX - LocateColumn * 8) / 8) + 2: my = Int((_MouseY - locateRow * 16) / 16) + 2
        If _MouseButton(1) Then 'click contols or select array item
            'clear mouse clicks
            mb = _MouseButton(1)
            If mb Then 'clear it
                While mb 'OK!
                    If _MouseInput Then mb = _MouseButton(1)
                    _Limit 100
                Wend
            End If

            If mx >= 1 And mx <= maxWidth And my >= 1 And my <= maxHeight Then
                choice = my + page * maxHeight + lba - 1 'select item clicked
            ElseIf mx >= 1 And mx <= maxWidth And my = 0 Then 'page up or exit
                If my = 0 And (mx <= maxWidth And mx >= maxWidth - 2) Then 'exit sign
                    Exit Do 'escape plan for mouse click top right corner of display box
                Else 'PgUp bar clicked
                    If (page - 1) * maxHeight + lba >= lba Then page = page - 1: GoSub update
                End If
            ElseIf mx >= 1 And mx <= maxWidth And my = maxHeight + 1 Then 'page down bar clicked
                If (page + 1) * maxHeight + lba <= uba Then page = page + 1: GoSub update
            End If
        Else '   mouse over highlighting, only if mouse has moved!
            If mx >= 1 And mx <= maxWidth And my >= 1 And my <= maxHeight Then
                If mx <> lastMX Or my <> lastMY Then
                    If my - 1 <> hlite And (my - 1 + page * maxHeight + lba <= uba) Then
                        hlite = my - 1
                        lastMX = mx: lastMY = my
                        GoSub update
                    End If
                End If
            End If
        End If
        _Limit 200
    Loop Until choice >= lba And choice <= uba
    If choice <> -1719 Then GetArrayItem$ = Arr(choice) 'set function and restore screen
    'ScnState -1 'restore
    Exit Function

    'display of array sections and controls on screen  ====================================================
    update:

    'fix hlite if it has dropped below last array item
    While hlite + page * maxHeight + lba > uba
        hlite = hlite - 1
    Wend

    'main display of array items at page * maxHeight (lines high)
    For row = 0 To maxHeight - 1
        If hlite = row Then Color _RGB(200, 200, 255), _RGB32(0, 0, 88) Else Color _RGB32(0, 0, 88), _RGB(200, 200, 255)
        Locate locateRow + row, LocateColumn: Print clrStr$;
        index = row + page * maxHeight + lba
        If index >= lba And index <= uba Then
            Locate locateRow + row, LocateColumn
            Print Left$(LTrim$(Str$(index)) + ") " + Arr(index), maxWidth);
        End If
    Next

    'make page up and down bars to click, print PgUp / PgDn if available
    Color _RGB32(200, 200, 255), _RGB32(0, 100, 50)
    Locate locateRow - 1, LocateColumn: Print Space$(maxWidth);
    If page <> 0 Then Locate locateRow - 1, LocateColumn: Print Left$(" Pg Up" + Space$(maxWidth), maxWidth);
    Locate locateRow + maxHeight, LocateColumn: Print Space$(maxWidth);
    If page <> Int(uba / maxHeight) Then
        Locate locateRow + maxHeight, LocateColumn: Print Left$(" Pg Dn" + Space$(maxWidth), maxWidth);
    End If
    'make exit sign for mouse click
    Color _RGB32(255, 255, 255), _RGB32(200, 100, 0)
    Locate locateRow - 1, LocateColumn + maxWidth - 3
    Print " X ";

    'if a number selection has been started show it's build = b$
    If Len(b$) Then
        Color _RGB(255, 255, 0), _RGB32(0, 0, 0)
        Locate locateRow + maxHeight, LocateColumn + maxWidth - Len(b$) - 1
        Print b$;
    End If
    _Display
    _Limit 100
    Return
End Function

Sub ScnState (restoreTF As Long) 'Thanks Steve McNeill  should we get a snap shot of screen?
    Static As _Unsigned Long defaultColor, backGroundColor
    Static As Long font, dest, source, row, col, autodisplay, mb, snap
    If restoreTF Then
        _Font font
        Color defaultColor, backGroundColor
        _Dest dest
        _Source source

        _KeyClear
        While _MouseInput: Wend 'clear mouse clicks
        mb = _MouseButton(1)
        If mb Then 'need this if line ?
            Do
                While _MouseInput: Wend
                mb = _MouseButton(1)
                _Limit 100
            Loop Until mb = 0
        End If
        _PutImage , snap, dest
        _FreeImage snap
        _Display
        If autodisplay Then _AutoDisplay Else _Display
        Locate row, col
    Else
        snap = _NewImage(_Width, _Height, 32)
        _PutImage , 0, snap
        font = _Font: defaultColor = _DefaultColor: backGroundColor = _BackgroundColor
        dest = _Dest: source = _Source
        row = CsrLin: col = Pos(0): autodisplay = _AutoDisplay
        While _MouseInput: Wend 'clear mouse clicks
        mb = _MouseButton(1)
        If mb Then 'need this if line ?
            Do
                While _MouseInput: Wend
                mb = _MouseButton(1)
                _Limit 100
            Loop Until mb = 0
        End If
        _KeyClear
    End If
End Sub



You will need this in your QB64.exe file:

NOVARSEG · « **Reply #25 on:** February 10, 2021, 02:15:49 am »

fast viewer. Gonna do another ver of BMP 24 viewer for speed.

Aurel · « **Reply #26 on:** February 10, 2021, 03:21:41 am »

(won't Aurel be thrilled?)

Youhooooo Mark....
very nice ......

johnno56 · « **Reply #27 on:** February 10, 2021, 04:23:30 pm »

If someone could provide a Linux command that produces a Directory Listing that distinguishes Files from Folders and provides a Sample Output Directory, I could adapt this for Linux.

@johnno56 can you help with this?

STxAxTIC · « **Reply #28 on:** February 10, 2021, 04:24:07 pm »

Quote from: johnno56 on February 10, 2021, 04:23:30 pm

If someone could provide a Linux command that produces a Directory Listing that distinguishes Files from Folders and provides a Sample Output Directory, I could adapt this for Linux.

@johnno56 can you help with this?

idk, can you?

johnno56 · « **Reply #29 on:** February 10, 2021, 04:47:42 pm »

Ho Ho. It is to laugh... lol

I was replying and hit ENTER before I had finished... Doh!

BPlus,

The commands 'ls' and 'dir' will display current directory contents. Main difference... the 'ls' command will display directories, executables and files in different colours. 'dir' is only white. Adding '-l' to the command will give a detailed list. To easily distinguish folders, commands and files, 'ls' or ls -l' would be the best.

There is probably a better way to do this but these are the commands that "I" use....

News:

Author Topic: Pipecom Browser for Filename$ (Read 10802 times)

NOVARSEG

Re: Pipecom Browser for Filename$

bplus

Re: Pipecom Browser for Filename$

NOVARSEG

Re: Pipecom Browser for Filename$

SMcNeill

Re: Pipecom Browser for Filename$

NOVARSEG

Re: Pipecom Browser for Filename$

bplus

Re: Pipecom Browser for Filename$

NOVARSEG

Re: Pipecom Browser for Filename$

SMcNeill

Re: Pipecom Browser for Filename$

NOVARSEG

Re: Pipecom Browser for Filename$

bplus

Re: Pipecom Browser for Filename$

NOVARSEG

Re: Pipecom Browser for Filename$

Aurel

Re: Pipecom Browser for Filename$

johnno56

Re: Pipecom Browser for Filename$

STxAxTIC

Re: Pipecom Browser for Filename$

johnno56

Re: Pipecom Browser for Filename$
