A dozen new and original IFS fractals

[AndyA]

I was playing with Apophysis (a fractal generator with design editing, which is what I've been using) and came up with these (all except Spiral Tunnel).

I made these so that they should fit on a 1366 x 768 screen. That's what I had for a few years. If it doesn't quite fit, just change the screen height to 750 or even 745, that should do the trick.

Three of these are just variations on the same theme, namely 'Pointy Star', 'Star Wings' and 'Fluffy Star'. Just small changes create quite different images.


This one I like because of the detail of nested self-similar spirals.
Braided Spirals

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Braided Spirals
3. _TITLE "IFS Braided Spirals"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 542.543
9. offsetX% = 280
10. offsetY% = 412
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 160.0
15.     grn! = 0.0
16.     blu! = 0.0
17.
18.     COLOR _RGB(red!, grn!, blu!)
19.     FOR i = 0 TO 755 STEP 3
20.         LINE (0, i)-(1023, i + 2), , BF
21.         red! = red! - .4
22.         COLOR _RGB(red!, grn!, blu!)
23.     NEXT
24. ELSE
25.     CLS , _RGB32(80, 0, 0)
26. END IF
27.
28. COLOR _RGB32(255, 255, 255, 60)
29. FOR iter& = 0 TO 1500000
30.     SELECT CASE RND
31.         CASE 0 TO 0.84
32.             nx! = -0.940076 * lastX! + 0.109322 * lastY! + 0.868750
33.             ny! = -0.132901 * lastX! + -0.959883 * lastY! + -0.061005
34.         CASE 0.8400001 TO 0.93
35.             nx! = -0.200339 * lastX! + -0.070879 * lastY! + 0.082227
36.             ny! = 0.119883 * lastX! + -0.250145 * lastY! + 0.019925
37.         CASE ELSE
38.             nx! = 0.059150 * lastX! + -0.264528 * lastY! + -0.375950
39.             ny! = 0.197019 * lastX! + -0.015262 * lastY! + 0.178505
40.     END SELECT
41.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
42.     lastX! = nx!
43.     lastY! = ny!
44. NEXT
45. SLEEP
46. SYSTEM
47.

IFS Dande-Leaf

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Dande-Leaf
3. _TITLE "IFS Dande-Leaf"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7. CLS , _RGB32(0, 0, 80)
8.
9. scale! = 124.552
10.
11. transpose = 1
12. IF transpose = 0 THEN
13.     'Plot in usual way
14.     offsetX% = 445: offsetY% = 201
15. ELSE
16.     'flip the X and Y axis to turn the graphic 90 degrees
17.     offsetX% = 301: offsetY% = 251
18. END IF
19.
20. red! = 128.0
21. grn! = 128.0
22. blu! = 0.0
23.
24. COLOR _RGB(red!, grn!, blu!)
25. FOR i = 0 TO 755 STEP 3
26.     LINE (0, i)-(1023, i + 2), , BF
27.     red! = red! - 0.4
28.     grn! = grn! - 0.4
29.     COLOR _RGB(red!, grn!, blu!)
30. NEXT
31.
32. COLOR _RGB32(255, 255, 255, 48)
33. FOR iter& = 0 TO 1000000
34.     SELECT CASE RND
35.         CASE 0 TO 0.67
36.             nx! = -0.843080 * lastX! + 0.508739 * lastY! + 0.366725
37.             ny! = 0.508739 * lastX! + 0.843080 * lastY! + 0.305420
38.         CASE 0.6700001 TO 0.97
39.             nx! = 0.626559 * lastX! + -0.250481 * lastY! + -0.212725
40.             ny! = 0.294432 * lastX! + 0.482080 * lastY! + 0.090219
41.         CASE ELSE
42.             nx! = -0.052541 * lastX! + -0.028642 * lastY! + -0.041935
43.             ny! = -0.125541 * lastX! + -0.110988 * lastY! + -0.679700
44.     END SELECT
45.     IF transpose = 0 THEN
46.         IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
47.     ELSE
48.         IF iter& > 20& THEN PSET (ny! * scale! + offsetY%, nx! * scale! + offsetX%)
49.     END IF
50.     lastX! = nx!
51.     lastY! = ny!
52. NEXT
53. SLEEP
54. SYSTEM

IFS Dry Leaves

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Dry Leaves
3. _TITLE "IFS Dry Leaves"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 324.140
9. offsetX% = 570
10. offsetY% = 297
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 255.0
15.     grn! = 255.0
16.     blu! = 255.0
17.     COLOR _RGB(red!, grn!, blu!)
18.     FOR i = 0 TO 755 STEP 3
19.         LINE (0, i)-(1023, i + 2), , BF
20.         red! = red! - .9
21.         grn! = grn! - .9
22.         blu! = blu! - .8
23.         COLOR _RGB(red!, grn!, blu!)
24.     NEXT
25. ELSE
26.     CLS , _RGB32(112, 112, 128)
27. END IF
28.
29. COLOR _RGB32(80, 48, 0, 60)
30. FOR iter& = 0 TO 1500000
31.     SELECT CASE RND
32.         CASE 0 TO 0.44
33.             nx! = -0.243869 * lastX! + -0.745420 * lastY! + -0.003990
34.             ny! = -0.745420 * lastX! + 0.243869 * lastY! + 0.425844
35.         CASE 0.4400001 TO 0.82
36.             nx! = 0.398172 * lastX! + -0.533236 * lastY! + -0.111045
37.             ny! = -0.564692 * lastX! + -0.362100 * lastY! + -0.200485
38.         CASE ELSE
39.             nx! = -0.139673 * lastX! + -0.110775 * lastY! + 0.406389
40.             ny! = 0.178204 * lastX! + 0.157489 * lastY! + -0.319936
41.     END SELECT
42.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
43.     lastX! = nx!
44.     lastY! = ny!
45. NEXT
46. SLEEP
47. SYSTEM

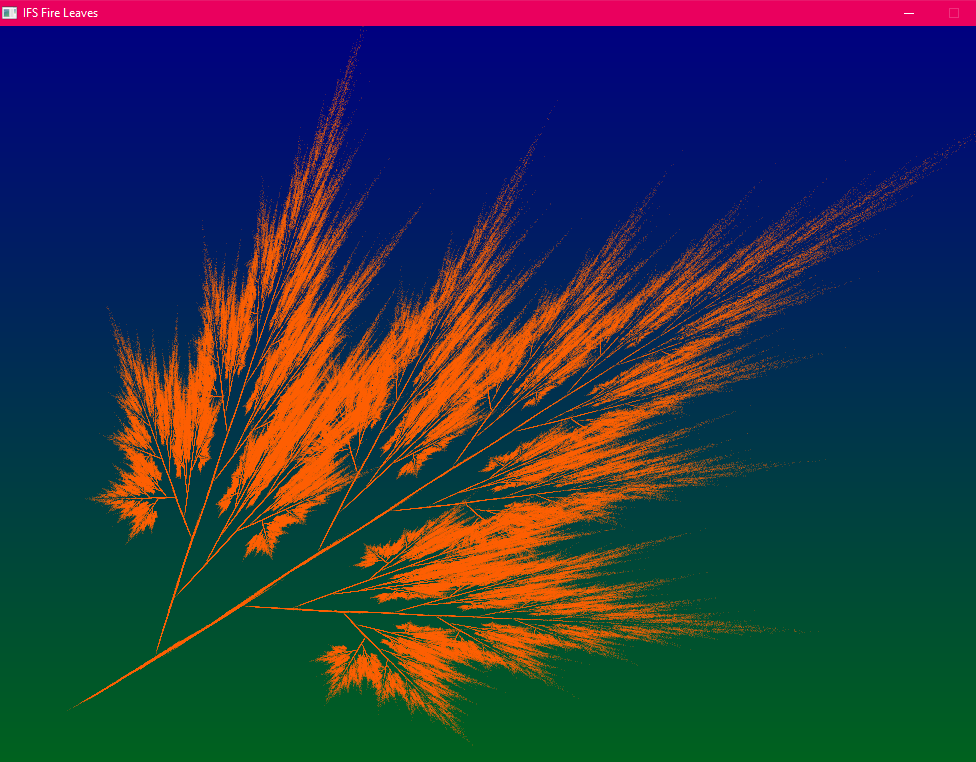

IFS Fire Leaves

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Fire Leaves
3. _TITLE "IFS Fire Leaves"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 323.610
9. offsetX% = 240
10. offsetY% = 305
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 0.0
15.     grn! = 128.0
16.     blu! = 0.0
17.     COLOR _RGB(red!, grn!, blu!)
18.     FOR i = 0 TO 755 STEP 3
19.         LINE (0, i)-(1023, i + 2), , BF
20.         'red! = red! - .4
21.         grn! = grn! - .4
22.         blu! = blu! + .4
23.         COLOR _RGB(red!, grn!, blu!)
24.     NEXT
25. ELSE
26.     CLS , _RGB32(0, 0, 64)
27. END IF
28.
29. COLOR _RGB32(255, 96, 0, 60)
30. FOR iter& = 0 TO 1500000
31.     SELECT CASE RND
32.         CASE 0 TO 0.55
33.             nx! = 0.450145 * lastX! + -0.725674 * lastY! + 0.850926
34.             ny! = -0.772767 * lastX! + -0.295871 * lastY! + 0.943063
35.         CASE 0.550001 TO 0.98
36.             nx! = -0.125597 * lastX! + -0.569436 * lastY! + 0.336491
37.             ny! = -0.435385 * lastX! + 0.435182 * lastY! + 0.274180
38.         CASE ELSE
39.             nx! = -0.132432 * lastX! + -0.278862 * lastY! + -0.051857
40.             ny! = 0.077123 * lastX! + 0.171443 * lastY! + 0.884371
41.     END SELECT
42.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
43.     lastX! = nx!
44.     lastY! = ny!
45. NEXT
46. SLEEP
47. SYSTEM

IFS Fluffy Star

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Fluffy Star
3. _TITLE "IFS Fluffy Star"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 324.349
9. offsetX% = 504
10. offsetY% = 401
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 0.0
15.     grn! = 0.0
16.     blu! = 128.0
17.     COLOR _RGB(red!, grn!, blu!)
18.     FOR i = 0 TO 755 STEP 3
19.         LINE (0, i)-(1023, i + 2), , BF
20.         blu! = blu! - .4
21.         COLOR _RGB(red!, grn!, blu!)
22.     NEXT
23. ELSE
24.     CLS , _RGB32(0, 0, 64)
25. END IF
26.
27. COLOR _RGB32(208, 208, 255, 48)
28. FOR iter& = 0 TO 1500000
29.     SELECT CASE RND
30.         CASE 0 TO 0.782261
31.             nx! = -0.816914 * lastX! + 0.561746 * lastY! + -0.003345
32.             ny! = -0.561746 * lastX! + -0.816914 * lastY! + 0.002228
33.         CASE ELSE
34.             nx! = 0.282758 * lastX! + 0.390905 * lastY! + -0.636573
35.             ny! = 0.010828 * lastX! + 0.310650 * lastY! + -0.176126
36.     END SELECT
37.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
38.     lastX! = nx!
39.     lastY! = ny!
40. NEXT
41. SLEEP
42. SYSTEM

IFS Lined Spiral

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Lined Spiral
3. _TITLE "IFS Lined Spiral"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 511.730
9. offsetX% = 309
10. offsetY% = 102
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 128.0
15.     grn! = 0.0
16.     blu! = 0.0
17.
18.     COLOR _RGB(red!, grn!, blu!)
19.     FOR i = 0 TO 755 STEP 3
20.         LINE (0, i)-(1023, i + 2), , BF
21.         red! = red! - .44
22.         blu! = blu! + .88
23.         COLOR _RGB(red!, grn!, blu!)
24.     NEXT
25. ELSE
26.     CLS , _RGB32(24, 16, 0)
27. END IF
28. COLOR _RGB32(255, 255, 255, 60)
29.
30. FOR iter& = 0 TO 1500000
31.     SELECT CASE RND
32.         CASE 0 TO 0.85
33.             nx! = 0.831291 * lastX! + 0.404627 * lastY! + -0.054528
34.             ny! = -0.404627 * lastX! + 0.831291 * lastY! + 0.327965
35.         CASE 0.8500001 TO 0.99
36.             nx! = 0.206141 * lastX! + 0.202595 * lastY! + -0.427254
37.             ny! = -0.202595 * lastX! + 0.206141 * lastY! + 0.093335
38.         CASE ELSE
39.             nx! = -0.065637 * lastX! + -0.060614 * lastY! + 0.174141
40.             ny! = 0.112378 * lastX! + 0.115166 * lastY! + -0.124196
41.     END SELECT
42.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
43.     lastX! = nx!
44.     lastY! = ny!
45. NEXT
46. SLEEP
47. SYSTEM

IFS Oak Leaves

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Oak Leaves
3. _TITLE "IFS Oak Leaves"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 324.140
9. offsetX% = 570
10. offsetY% = 297
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 96.0
15.     grn! = 0.0
16.     blu! = 192.0
17.     COLOR _RGB(red!, grn!, blu!)
18.     FOR i = 0 TO 755 STEP 3
19.         LINE (0, i)-(1023, i + 2), , BF
20.         red! = red! - .4
21.         blu! = blu! - .7
22.         COLOR _RGB(red!, grn!, blu!)
23.     NEXT
24. ELSE
25.     CLS , _RGB32(64, 0, 128)
26. END IF
27.
28. COLOR _RGB32(64, 255, 32, 60)
29. FOR iter& = 0 TO 1500000
30.     SELECT CASE RND
31.         CASE 0 TO 0.58
32.             nx! = -0.243869 * lastX! + -0.745420 * lastY! + -0.003990
33.             ny! = -0.745420 * lastX! + 0.243869 * lastY! + 0.425844
34.         CASE 0.5800001 TO 0.99
35.             nx! = 0.398172 * lastX! + -0.533236 * lastY! + -0.122126
36.             ny! = -0.564692 * lastX! + -0.362100 * lastY! + -0.184116
37.         CASE ELSE
38.             nx! = -0.139673 * lastX! + -0.110775 * lastY! + 0.406389
39.             ny! = 0.178204 * lastX! + 0.154489 * lastY! + -0.319936
40.     END SELECT
41.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
42.     lastX! = nx!
43.     lastY! = ny!
44. NEXT
45. SLEEP
46. SYSTEM

IFS Pinwheel

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Pinwheel
3. _TITLE "IFS Pinwheel"
4.
5. scale! = 253.200
6. offsetX% = 385
7. offsetY% = 428
8. SCREEN _NEWIMAGE(1024, 755, 32)
9. RANDOMIZE TIMER
10. CLS , _RGB32(0, 0, 80)
11.
12.
13. blu! = 255.0
14. COLOR _RGB(0, 0, blu!)
15.
16. FOR i = 0 TO 755 STEP 3
17.     LINE (0, i)-(1023, i + 2), , BF
18.     blu! = blu! - 0.85
19.     COLOR _RGB(0, 0, blu!)
20. NEXT
21.
22. COLOR _RGB32(255, 255, 96, 48)
23. FOR iter& = 0 TO 2000000
24.     SELECT CASE RND
25.         CASE 0 TO .8
26.             nx! = 0.004855 * lastX! + -0.990169 * lastY! + 0.333507
27.             ny! = 0.990169 * lastX! + 0.004855 * lastY! + -0.690207
28.         CASE ELSE
29.             nx! = 0.143532 * lastX! + 0.552904 * lastY! + -0.165432
30.             ny! = -0.266752 * lastX! + 0.203483 * lastY! + 0.086279
31.     END SELECT
32.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
33.     lastX! = nx!
34.     lastY! = ny!
35. NEXT
36. SLEEP
37. SYSTEM

IFS Pointy Star

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Pointy Star
3. _TITLE "IFS Pointy Star"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6.
7. scale! = 270.0
8. offsetX% = 509
9. offsetY% = 376
10.
11. gradient% = 1
12. IF gradient% = 1 THEN
13.     red! = 0.0
14.     grn! = 0.0
15.     blu! = 128.0
16.     COLOR _RGB(red!, grn!, blu!)
17.     FOR i = 0 TO 755 STEP 3
18.         LINE (0, i)-(1023, i + 2), , BF
19.         blu! = blu! - .4
20.         COLOR _RGB(red!, grn!, blu!)
21.     NEXT
22. ELSE
23.     CLS , _RGB32(0, 0, 64)
24. END IF
25.
26. COLOR _RGB32(208, 208, 255, 48)
27. FOR iter& = 0 TO 1500000
28.     SELECT CASE RND
29.         CASE 0 TO 0.782261
30.             nx! = -0.814831 * lastX! + 0.574685 * lastY! + -0.003345
31.             ny! = -0.564763 * lastX! + -0.741019 * lastY! + 0.002228
32.         CASE ELSE
33.             nx! = 0.364791 * lastX! + 0.278183 * lastY! + -0.630902
34.             ny! = 0.221807 * lastX! + 0.418540 * lastY! + -0.204482
35.     END SELECT
36.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
37.     lastX! = nx!
38.     lastY! = ny!
39. NEXT
40. SLEEP
41. SYSTEM

This one is an old one, but I'm a sucker for spiral variations.

IFS Spiral Tunnel   (generated by J.C. Sprott - IFS.bas)

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Spiral Tunnel
3. _TITLE "IFS Spiral Tunnel"
4.
5. scaleX! = 709.466
6. scaleY! = 380.466
7. offsetX% = 367
8. offsetY% = 327
9. SCREEN _NEWIMAGE(1024, 755, 32)
10. RANDOMIZE TIMER
11.
12. red! = 255.0
13. grn! = 255.0
14. blu! = 0.0
15. COLOR _RGB(red!, grn!, blu!)
16.
17. FOR i = 0 TO 755 STEP 3
18.     LINE (0, i)-(1023, i + 2), , BF
19.     red! = red! - 0.85
20.     grn! = grn! - 0.95
21.     COLOR _RGB(red!, grn!, blu!)
22. NEXT
23.
24. COLOR _RGB32(64, 0, 160, 48)
25. FOR iter& = 0 TO 2000000
26.     SELECT CASE RND
27.         CASE 0 TO .833
28.             nx! = -0.70 * lastX! + 0.30 * lastY! + 0.30
29.             ny! = -0.90 * lastX! + -0.80 * lastY! + 0.50
30.         CASE ELSE
31.             nx! = -0.20 * lastX! + 0.30 * lastY! + -0.10
32.             ny! = 0.90 * lastX! + -0.80 * lastY! + 0.00
33.     END SELECT
34.     IF iter& > 20& THEN PSET (nx! * scaleX! + offsetX%, ny! * scaleY! + offsetY%)
35.     lastX! = nx!
36.     lastY! = ny!
37. NEXT
38. SLEEP
39. SYSTEM

IFS Star Wings

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Star Wings
3. _TITLE "IFS Star Wings"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 324.349
9. offsetX% = 504
10. offsetY% = 401
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 0.0
15.     grn! = 0.0
16.     blu! = 128.0
17.     COLOR _RGB(red!, grn!, blu!)
18.     FOR i = 0 TO 755 STEP 3
19.         LINE (0, i)-(1023, i + 2), , BF
20.         blu! = blu! - .4
21.         COLOR _RGB(red!, grn!, blu!)
22.     NEXT
23. ELSE
24.     CLS , _RGB32(0, 0, 64)
25. END IF
26.
27. COLOR _RGB32(208, 208, 255, 48)
28. FOR iter& = 0 TO 1500000
29.     SELECT CASE RND
30.         CASE 0 TO 0.782261
31.             nx! = -0.816914 * lastX! + 0.561746 * lastY! + -0.003345
32.             ny! = -0.561746 * lastX! + -0.816914 * lastY! + 0.002228
33.         CASE ELSE
34.             nx! = 0.282758 * lastX! + 0.390905 * lastY! + -0.636573
35.             ny! = 0.010828 * lastX! + 0.310650 * lastY! + -0.176126
36.     END SELECT
37.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
38.     lastX! = nx!
39.     lastY! = ny!
40. NEXT
41. SLEEP
42. SYSTEM

This one reminded me of those creatures from the movie 'Tremors'.

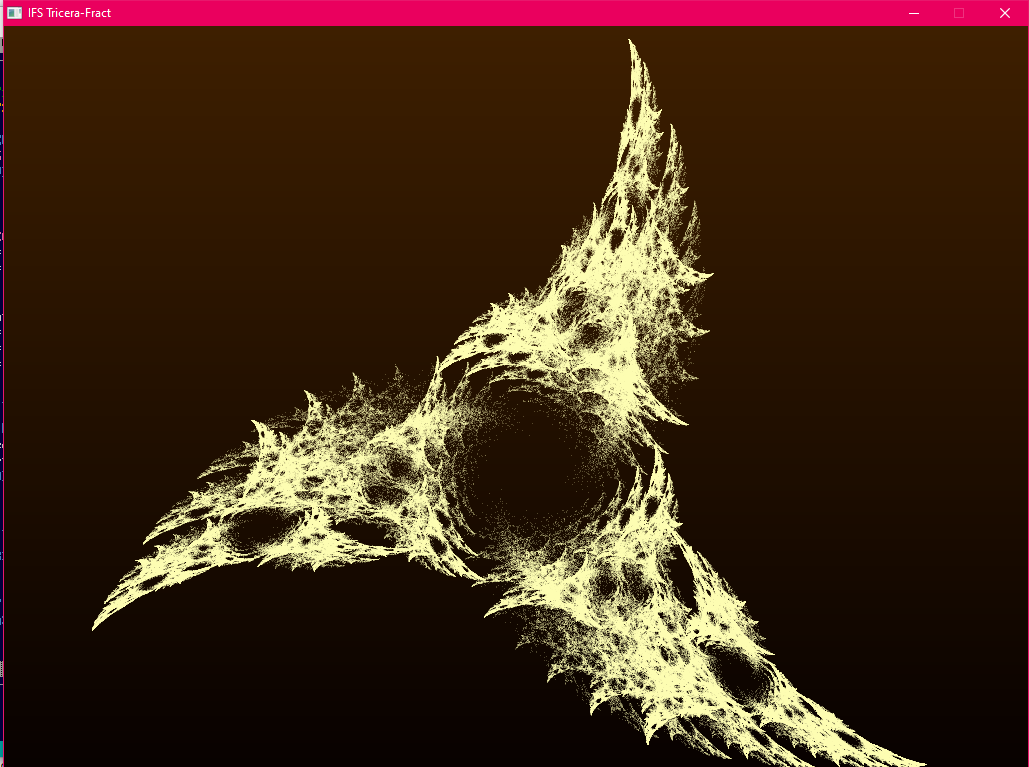

IFS Tricera-Fract

Code: QB64: [Select]

1. 'Original IFS fractal by Andy Amaya
2. 'Tricera-Fract
3. _TITLE "IFS Tricera-Fract"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. RANDOMIZE TIMER
7.
8. scale! = 264.736
9. offsetX% = 630
10. offsetY% = 425
11.
12. gradient% = 1
13. IF gradient% = 1 THEN
14.     red! = 62.0
15.     grn! = 31.0
16.     blu! = 0.0
17.
18.     COLOR _RGB(red!, grn!, blu!)
19.     FOR i = 0 TO 755 STEP 3
20.         LINE (0, i)-(1023, i + 2), , BF
21.         red! = red! - .22
22.         grn! = grn! - .12
23.         COLOR _RGB(red!, grn!, blu!)
24.     NEXT
25. ELSE
26.     CLS , _RGB32(24, 16, 0)
27. END IF
28. COLOR _RGB32(255, 255, 180, 60)
29.
30. FOR iter& = 0 TO 1500000
31.     SELECT CASE RND
32.         CASE 0 TO 0.62
33.             nx! = -0.516076 * lastX! + -0.792133 * lastY! + -0.542779
34.             ny! = 0.792133 * lastX! + -0.516076 * lastY! + 0.412808
35.         CASE 0.6200001 TO 0.84
36.             nx! = 0.294921 * lastX! + 0.240110 * lastY! + 0.493068
37.             ny! = -0.032464 * lastX! + 0.345342 * lastY! + 0.808644
38.         CASE ELSE
39.             nx! = -0.170761 * lastX! + -0.276078 * lastY! + -0.229303
40.             ny! = 0.265610 * lastX! + -0.179727 * lastY! + -0.375222
41.     END SELECT
42.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
43.     lastX! = nx!
44.     lastY! = ny!
45. NEXT
46. SLEEP
47. SYSTEM

[bplus]

Very nice! I think you've been working on background colorings, fire leaf definitely struck me with color usage, and some of fractals look they are being rotated in 3D. Beautiful works of art all!

Oh also they are rendered almost immediately.

After Screen _NewImage....
_delay .25
_ScreenMove _middle ' to center

[bplus]

Reversed Green and Blue:


Code: QB64: [Select]

1.  'Original IFS fractal by Andy Amaya
2. 'Fire Leaves
3. _TITLE "IFS Fire Leaves"
4.
5. SCREEN _NEWIMAGE(1024, 755, 32)
6. _DELAY .25
7. _SCREENMOVE _MIDDLE
8.
9. RANDOMIZE TIMER
10.
11. scale! = 323.610
12. offsetX% = 240
13. offsetY% = 305
14.
15. gradient% = 1
16. IF gradient% = 1 THEN
17.     red! = 0.0
18.     grn! = 0
19.     blu! = 128
20.     COLOR _RGB(red!, grn!, blu!)
21.     FOR i = 0 TO 755 STEP 3
22.         LINE (0, i)-(1023, i + 2), , BF
23.         'red! = red! - .4
24.         grn! = grn! + .4
25.         blu! = blu! - .4
26.         COLOR _RGB(red!, grn!, blu!)
27.     NEXT
28. ELSE
29.     CLS , _RGB32(0, 0, 64)
30. END IF
31.
32. COLOR _RGB32(255, 96, 0, 60)
33. FOR iter& = 0 TO 1500000
34.     SELECT CASE RND
35.         CASE 0 TO 0.55
36.             nx! = 0.450145 * lastX! + -0.725674 * lastY! + 0.850926
37.             ny! = -0.772767 * lastX! + -0.295871 * lastY! + 0.943063
38.         CASE 0.550001 TO 0.98
39.             nx! = -0.125597 * lastX! + -0.569436 * lastY! + 0.336491
40.             ny! = -0.435385 * lastX! + 0.435182 * lastY! + 0.274180
41.         CASE ELSE
42.             nx! = -0.132432 * lastX! + -0.278862 * lastY! + -0.051857
43.             ny! = 0.077123 * lastX! + 0.171443 * lastY! + 0.884371
44.     END SELECT
45.     IF iter& > 20& THEN PSET (nx! * scale! + offsetX%, ny! * scale! + offsetY%)
46.     lastX! = nx!
47.     lastY! = ny!
48. NEXT
49. SLEEP
50. SYSTEM

[Dav]

These are absolutely beautiful.  Well deserving of obtaining a special folder in my qb64 directory.  Thanks for sharing!

- Dav

[bplus]

I am looking at Fire Leaves again and thinking one can render a fire effect faster maybe if:

1. Don't start drawing the sticky parts until the level is reached they dont look like sticks,
2. Alter the color red with fire pallet or palette, oh color by recurs level the lower levels white and yellow really low a dash of blue!
3. Overlap several renderings
4. Point the first sticks up

maybe? well maybe for a still shot.

[bplus]

Oh! To see the Beast run this in Roto and rotate 40 degrees +/-



The Beast has a Vortex for mouth and nose that sucks in star systems or you! like a vacuum cleaner, it is most anti-anti-gravity.


Oh heck run this in rotozoom with cls by fades.

[AndyA]

Thanks for the kind words.

@Dav
I did some other IFS fractals on this post: https://www.qb64.org/forum/index.php?topic=1965.0

Ashish has also done some IFS fractals and L-System fractals.

Someone else did some fractals converted from 'Ultra Fractal' or something similar.

Just goes to show what can be done mathematically to draw images.


@bplus
I like the reversal of the background in 'Fire Leaves' that you did, it somehow looks better, even though the color palette is the same.

As for 'Fire Leaves' (and all the others for that matter), the image is drawn one point at a random location in the 'orbit' of the 'attractor'. This boils down to, there's no way to procedurally draw anything, it's always going to be a single point drawn at a random location in the image.

[bplus]

This boils down to, there's no way to procedurally draw anything, it's always going to be a single point drawn at a random location in the image.

I managed to draw the classic fern and your pine tree any where on screen with different palettes, did you see Christmas 2020? ;-))

Reply #17 Christmas 2020 Thread
https://www.qb64.org/forum/index.php?topic=3332.msg126398#msg126398

These snippets have a center x, y they are drawn albeit randomly but you can rubber stamp process and alter colors and scales... even sway the ferns in the wind!

Code: QB64: [Select]

1. _TITLE "Fernerator, press spacebar for new landscape, esc to quit" 'b+ 2020-08-06
2. SCREEN _NEWIMAGE(1000, 600, 32)
3. _DELAY .25
4. _SCREENMOVE _MIDDLE
5. WINDOW (-5, 0)-(5, 11)
6. RANDOMIZE TIMER
7.
8. TYPE obj
9.     x AS SINGLE 'offset from centered fern
10.     y AS SINGLE 'offest from centered fern
11.     scale AS SINGLE ' from 0 to 1
12.     c AS _UNSIGNED LONG
13. END TYPE
14.
15. DIM SHARED nFerns
16. REDIM SHARED fern(1 TO nFerns) AS obj
17. '   f& = _LOADIMAGE("clipartkey_1043733.png")  ' the code isn't working with the image anymore???
18.
19. initFerns
20. wind = 0: dw = .01: dir = 1
21. WHILE _KEYDOWN(27) = 0
22.     IF INKEY$ = " " THEN initFerns
23.     FOR i = 4 TO 11 STEP .2
24.         LINE (-5, i)-(5, i + .2), _RGB32(60, (1 - i / 11) * 150 + 60, (1 - i / 11) * 75 + 180), BF
25.     NEXT
26.     FOR i = 0 TO 4 STEP .2
27.         LINE (-5, i)-(5, i + .2), _RGB32(i / 4 * 90 + 10, i / 4 * 45 + 5, i / 4 * 22 + 2), BF
28.     NEXT
29.     ''''''''''''''''''''''''''''''''''''''''''''_PUTIMAGE (-5, 0), f&, 0 ' the code isn't working with the image anymore???
30.
31.     FOR i = 1 TO nFerns
32.         drawFern fern(i).x, fern(i).y, fern(i).scale, fern(i).c, wind
33.     NEXT
34.
35.     _DISPLAY
36.     _LIMIT 10
37.     wind = wind + dir * dw
38.     IF wind > .06 OR wind < -.72 THEN dir = -dir
39. WEND
40.
41. SUB initFerns
42.     nFerns = 4 + INT(RND * 9)
43.     REDIM fern(1 TO nFerns) AS obj
44.     FOR i = 1 TO nFerns
45.         fern(i).x = RND * 10 - 5
46.         fern(i).y = RND * 2 - 1
47.         fern(i).scale = RND * .7 + .3
48.         g = RND * 100 + 40
49.         fern(i).c = _RGB32(g - 20 - RND * 60, g, g - 20 - RND * 60)
50.     NEXT
51. END SUB
52.
53. SUB drawFern (xoff0, yoff0, scale, c AS _UNSIGNED LONG, w)
54.     yAdj = yoff0 + (1 - scale) * 5
55.     FOR i = 1 TO 90000 'enough dots to get idea
56.         SELECT CASE RND
57.             CASE IS < .01
58.                 nextX = 0
59.                 nextY = .16 * y
60.             CASE .01 TO .08
61.                 nextX = .2 * x - .26 * y
62.                 nextY = .23 * x + .22 * y + 1.6
63.             CASE .08 TO .15
64.                 nextX = -.15 * x + .28 * y
65.                 nextY = .26 * x + .24 * y + .44
66.             CASE ELSE
67.                 nextX = .85 * x + .04 * y
68.                 nextY = -.04 * x + .85 * y + 1.6
69.         END SELECT
70.         x = nextX + w * nextY / 10
71.         y = nextY
72.         LINE (x * scale + xoff0, y * scale + yAdj)-STEP(0, 0), c, BF
73.     NEXT
74. END SUB
75.
76.

EDIT: the code isn't working right with image any more, dang!

Also could alter the images my alternating the random rendering of x, y points so ferns dont look so cloned.


[AndyA]

Those are clever changes to the plotting and post-rendering of the images, but I prefer using images for post processing the IFS like the attached pic. Using images for post processing allows me more flexibility in making a more realistic IFS picture. It's not everybody's cup of tea but I like it just fine.

[bplus]

@AndyA  well your post processing looks fabulous!

[AndyA]

Thanks bplus,

I believe the leaf itself turned out well, the background on the other hand... well, it was used as a backdrop rather hurriedly.

Just a reminder, if you use the IFS Viewer 3 app in JustBasic (until I can motivate myself to do the port to QB64), you can 1) plot an IFS fractal that you like then 2) press the 'Render Using an Image' button, choose an image from disk that you want to color the fractal with 3) save the .BMP of the fractal rendered using an image disk. Keep in mind the JustBasic is like 100 times slower than QB64, so plotting, and rendering with an image will take minutes, instead of seconds.

For placing on a custom background you'll need to mess with MS Paint and Paint.net using a couple of simple procedures to drop the fractal onto a nice background.

P.S. I forgot about the BlitzPlus version of IFS Viewer 3. It's waaaay faster than the JustBasic version. It can be found here https://socoder.net/?Showcase=54548

[OldMoses]

These are amazing. I wish I had the ability to understand the stuff behind it.

Another thing that Tricera-fract reminds me of, being a bit of a Trekkie, it looks like a slight variation of the Klingon symbol.

[AndyA]

Hi OldMoses,

You know, I hadn't thought about it but, you're right I does look like a Klingon symbol. I'm surprised Johnno56, didn't mention that (just look at his avatar ).

[ edit]
Just a mild ribbing for Johnno56. I've talked to Johnno56 on and off over the last 5 years here and at other forums. I don't want him, or anyone else to think I meant anything mean or inappropriate. I meant it as a mild joke, but sometimes it doesn't seem like a joke in plain text.
[ /edit]
