Terrain Grid

[SierraKen]

Using Petr's Sound Visualization code, I converted it to this small simulation of flying over a green terrain grid and a blue sky. I might look into this more sometime to see if there is ways to turn, etc. But here is the general code for it. I started this new thread so it wouldn't take over Petr's and in case anyone wants to make mods of it.
Petr's Music Visualization code is here: https://qb64forum.alephc.xyz/index.php?topic=4719.0

Code: QB64: [Select]

1. 'Almost all of this code comes from Petr's Music Visualizer.
2. Screen _NewImage(800, 600, 32)
3. Do Until InKey$ = Chr$(27)
4.     ShiftIt = 89
5.     $NoPrefix
6.     Dest Texture
7.     Cls
8.     Paint (1, 1), _RGB32(127, 255, 127)
9.     For diY = 0 To 100
10.         Line (diY + 20, diY + 20)-(235 - diY, 235 - diY), RGB32(0, diY, 0), B
11.     Next
12.     Dest 0
13.     Dim M3D(90, 90) As Single
14.     Dim M2D(90, 90) As Single
15.     DW = 800
16.     DH = 600
17.     HT = CopyImage(Texture, 33)
18.     If Texture <> 0 Then FreeImage Texture
19.     Screen NewImage(DW, DH, 32)
20.     Do Until ShiftIt < 0
21.         For rows = 0 To 90
22.             Swap M3D(rows, ShiftIt), M3D(rows, ShiftIt + 1)
23.             Swap M2D(rows, ShiftIt), M2D(rows, ShiftIt + 1)
24.         Next
25.         ShiftIt = ShiftIt - 1
26.     Loop
27.     Depth = 0
28.     Do Until Depth = 90000
29.         M3D(ra, 0) = Rnd * 2.5
30.         M2D(ra, 0) = Rnd * 2.5
31.         Depth = Depth + 1000
32.         ra = ra + 1
33.     Loop
34.
35.     ra = 0
36.
37.     For Z = 0 To 89
38.         For X = 0 To 89
39.             HX = -45 + X
40.             HX2 = HX + 1
41.             HZ = -89 + Z
42.             HZ2 = HZ + 1
43.             HY1 = -3 + M3D(X, Z): HY2 = -3 + M3D(X + 1, Z): HY3 = -3 + M3D(X, Z + 1): HY4 = -3 + M3D(X + 1, Z + 1)
44.             HY11 = 3 - M2D(X, Z): HY12 = 3 - M2D(X + 1, Z): HY13 = 3 - M2D(X, Z + 1): HY14 = 3 - M2D(X + 1, Z + 1)
45.             'Ground
46.             MapTriangle (0, 0)-(255, 0)-(0, 255), HT To(HX, HY1, HZ)-(HX2, HY2, HZ)-(HX, HY3, HZ2), 0, Smooth
47.             MapTriangle (255, 0)-(0, 255)-(255, 255), HT To(HX2, HY2, HZ)-(HX, HY3, HZ2)-(HX2, HY4, HZ2), 0, Smooth
48.             'Ceiling
49.             'MapTriangle (0, 0)-(255, 0)-(0, 255), HT To(HX, HY11, HZ)-(HX2, HY12, HZ)-(HX, HY13, HZ2), 0, Smooth
50.             'MapTriangle (255, 0)-(0, 255)-(255, 255), HT To(HX2, HY12, HZ)-(HX, HY13, HZ2)-(HX2, HY14, HZ2), 0, Smooth
51.     Next X, Z
52.     'Sky
53.     Paint (1, 1), _RGB32(128, 255, 255)
54.     Display
55.     Limit 20
56.
57. Loop
58.

[bplus]

Well that does look pretty cool! Nice Mod!

[SierraKen]

Thanks B+ :). Thank you also Petr for the code!

[SierraKen]

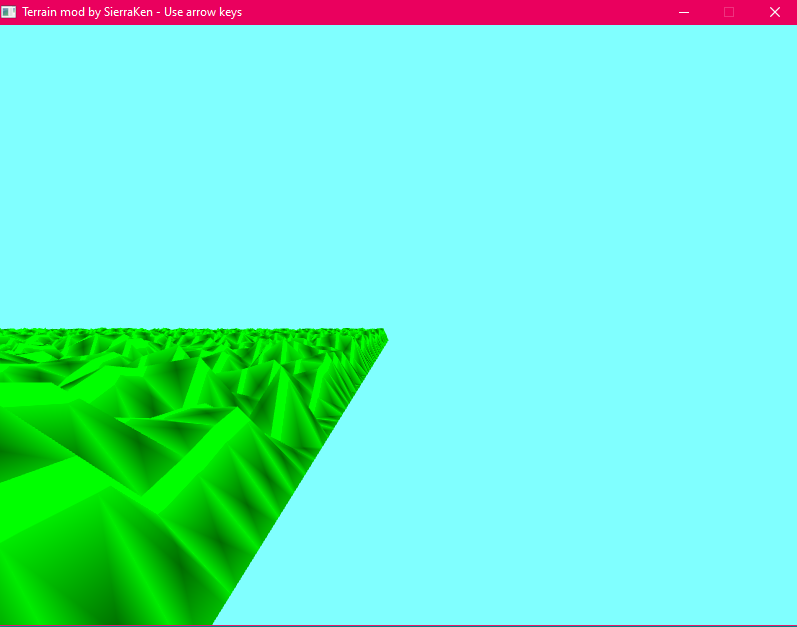

Here's an improved version. I made the terrain look brighter and thicker and found out how to turn left and right and speed up and slow down, using the arrow keys. I still may improve on it later sometime but here is what I have. Notice that there's no central line going straight down. I was able to remove that when you turn left or right by using xx=xx+.33 and xx=xx-.33 so there's no pattern to the grid on turning which makes it more real looking.

Code: QB64: [Select]

1. 'Almost all of this code comes from Petr's Music Visualizer.
2. Screen _NewImage(800, 600, 32)
3. _Title "Terrain mod by SierraKen - Use arrow keys"
4. lim = 20
5. Do Until a$ = Chr$(27)
6.     Limit lim
7.     a$ = InKey$
8.     If a$ = Chr$(0) + Chr$(75) Then xx = xx + .33
9.     If a$ = Chr$(0) + Chr$(77) Then xx = xx - .33
10.     If a$ = Chr$(0) + Chr$(72) Then lim = lim + .1
11.     If a$ = Chr$(0) + Chr$(80) Then lim = lim - .1
12.     If lim < 10 Then lim = 10
13.     If lim > 30 Then lim = 30
14.     ShiftIt = 89
15.     $NoPrefix
16.     Dest Texture
17.     Cls
18.     Paint (1, 1), _RGB32(0, 177, 0)
19.     For diY = 0 To 1000
20.         Line (diY + 20, diY + 20)-(235 - diY, 235 - diY), RGB32(0, diY, 0), B
21.     Next
22.     Dest 0
23.     Dim M3D(90, 90) As Single
24.     Dim M2D(90, 90) As Single
25.     DW = 800
26.     DH = 600
27.     HT = CopyImage(Texture, 33)
28.     If Texture <> 0 Then FreeImage Texture
29.     Screen NewImage(DW, DH, 32)
30.     Do Until ShiftIt < 0
31.         For rows = 0 To 90
32.             Swap M3D(rows, ShiftIt), M3D(rows, ShiftIt + 1)
33.             Swap M2D(rows, ShiftIt), M2D(rows, ShiftIt + 1)
34.         Next
35.         ShiftIt = ShiftIt - 1
36.     Loop
37.     Depth = 0
38.     Do Until Depth = 90000
39.         M3D(ra, 0) = Rnd * 2.5
40.         M2D(ra, 0) = Rnd * 2.5
41.         Depth = Depth + 1000
42.         ra = ra + 1
43.     Loop
44.
45.     ra = 0
46.     For Z = 0 To 89
47.         For x = 0 To 89
48.             HX = -45 + x
49.             HX2 = HX + 1
50.             HZ = -89 + Z
51.             HZ2 = HZ + 1
52.             HY1 = -3 + M3D(x, Z): HY2 = -3 + M3D(x + 1, Z): HY3 = -3 + M3D(x, Z + 1): HY4 = -3 + M3D(x + 1, Z + 1)
53.             HY11 = 3 - M2D(x, Z): HY12 = 3 - M2D(x + 1, Z): HY13 = 3 - M2D(x, Z + 1): HY14 = 3 - M2D(x + 1, Z + 1)
54.             'Ground
55.             MapTriangle (0 + xx, 0)-(255 + xx, 0)-(0 + xx, 255), HT To(HX + xx, HY1, HZ)-(HX2 + xx, HY2, HZ)-(HX + xx, HY3, HZ2), 0, _Smooth
56.             MapTriangle (255 + xx, 0)-(0 + xx, 255)-(255 + xx, 255), HT To(HX2 + xx, HY2, HZ)-(HX + xx, HY3, HZ2)-(HX2 + xx, HY4, HZ2), 0, _Smooth
57.             'Ceiling
58.             'MapTriangle (0, 0)-(255, 0)-(0, 255), HT To(HX, HY11, HZ)-(HX2, HY12, HZ)-(HX, HY13, HZ2), 0, Smooth
59.             'MapTriangle (255, 0)-(0, 255)-(255, 255), HT To(HX2, HY12, HZ)-(HX, HY13, HZ2)-(HX2, HY14, HZ2), 0, Smooth
60.     Next x, Z
61.     'Sky
62.     Paint (1, 1), _RGB32(128, 255, 255)
63.     Display
64.
65. Loop
66.
67.
68.
69.
70.

[bplus]

This would be good for Pi Day


[SierraKen]

I fixed the left and right land edges by just making xx start back from its opposite number when it reaches a certain point. Although there is still the edge you see from far away, which I can't seem to fix. I know I have to make a wider land area in order to do this, somehow. I'm still learning. I also changed the up and down arrow keys to go higher or lower like an airplane simulator. I also made it so the terrain is lower the higher you go and the terrain is higher the lower you go. I changed the speed to the + and - keys as well.

Code: QB64: [Select]

1. 'Almost all of this code comes from Petr's Music Visualizer.
2. Screen _NewImage(800, 600, 32)
3. _Title "Terrain mod by SierraKen - Use arrow keys and plus and minus keys for speed."
4. lim = 20
5. altitude = 1.9
6. Do Until a$ = Chr$(27)
7.     Limit lim
8.     a$ = InKey$
9.     If a$ = Chr$(0) + Chr$(75) Then xx = xx + .33
10.     If a$ = Chr$(0) + Chr$(77) Then xx = xx - .33
11.     If a$ = Chr$(0) + Chr$(72) Then altitude = altitude + .05: al = al + .1
12.     If a$ = Chr$(0) + Chr$(80) Then altitude = altitide - .05: al = al - .1
13.     If altitude > 3 Then altitude = 3
14.     If altitude < .5 Then altitude = .5
15.     If al > 0 Then al = 0
16.     If al < -20 Then al = -20
17.     If a$ = "+" Then lim = lim + .1
18.     If a$ = "-" Then lim = lim - .1
19.     If xx > 25 Then xx = -25
20.     If xx < -25 Then xx = 25
21.     If lim < 10 Then lim = 10
22.     If lim > 30 Then lim = 30
23.     ShiftIt = 89
24.     $NoPrefix
25.     Dest Texture
26.     Cls
27.     Paint (1, 1), _RGB32(0, 177, 0)
28.     For diY = -1000 To 2000
29.         Line (diY + 20, diY + 20)-(235 - diY, 235 - diY), RGB32(0, diY, 0), B
30.     Next
31.     Dest 0
32.     Dim M3D(300, 300) As Single
33.     Dim M2D(300, 300) As Single
34.     DW = 800
35.     DH = 600
36.     HT = CopyImage(Texture, 33)
37.     If Texture <> 0 Then FreeImage Texture
38.     Screen NewImage(DW, DH, 32)
39.     Do Until ShiftIt < 0
40.         For rows = 0 To 90
41.             Swap M3D(rows, ShiftIt), M3D(rows, ShiftIt + 1)
42.             Swap M2D(rows, ShiftIt), M2D(rows, ShiftIt + 1)
43.         Next
44.         ShiftIt = ShiftIt - 1
45.     Loop
46.     Depth = 0
47.     Do Until Depth = 90000
48.         M3D(ra, 0) = Rnd * altitude
49.         M2D(ra, 0) = Rnd * altitude
50.         Depth = Depth + 1000
51.         ra = ra + 1
52.     Loop
53.     ra = 0
54.     For Z = 0 To 89
55.         For x = 0 To 178
56.             HX = -45 + x
57.             HX2 = HX + 1
58.             HZ = -89 + Z
59.             HZ2 = HZ + 1
60.             HY1 = -3 + M3D(x, Z): HY2 = -3 + M3D(x + 1, Z): HY3 = -3 + M3D(x, Z + 1): HY4 = -3 + M3D(x + 1, Z + 1)
61.             HY11 = 3 - M2D(x, Z): HY12 = 3 - M2D(x + 1, Z): HY13 = 3 - M2D(x, Z + 1): HY14 = 3 - M2D(x + 1, Z + 1)
62.             'Ground
63.             MapTriangle _Seamless(0 + xx, al)-(255 + xx, al)-(0 + xx, 255 + al), HT To(HX + xx, HY1 + al, HZ)-(HX2 + xx, HY2 + al, HZ)-(HX + xx, HY3 + al, HZ2), 0, _Smooth
64.             MapTriangle _Seamless(255 + xx, al)-(0 + xx, 255 + al)-(255 + xx, 255 + al), HT To(HX2 + xx, HY2 + al, HZ)-(HX + xx, HY3 + al, HZ2)-(HX2 + xx, HY4 + al, HZ2), 0, _Smooth
65.
66.             'Ceiling
67.             'MapTriangle (0, 0)-(255, 0)-(0, 255), HT To(HX, HY11, HZ)-(HX2, HY12, HZ)-(HX, HY13, HZ2), 0, Smooth
68.             'MapTriangle (255, 0)-(0, 255)-(255, 255), HT To(HX2, HY12, HZ)-(HX, HY13, HZ2)-(HX2, HY14, HZ2), 0, Smooth
69.     Next x, Z
70.     'Sky
71.     Paint (1, 1), _RGB32(128, 255, 255)
72.     Display
73. Loop
74.

[SierraKen]
