QPrint (falcon.h simplified)

[SMcNeill]

There's several programs out there that make use of falcon.h by now, but I wanted to take a shot at tossing in my own personal version of a simplified wrapper for the command -- QPRINT.

Code: QB64: [Select]

1. DECLARE LIBRARY "falcon"
2.     SUB uprint_extra (BYVAL x&, BYVAL y&, BYVAL chars%&, BYVAL length%&, BYVAL kern&, BYVAL do_render&, txt_width&, BYVAL charpos%&, charcount&, BYVAL colour~&, BYVAL max_width&)
3.     FUNCTION uprint (BYVAL x&, BYVAL y&, chars$, BYVAL txt_len&, BYVAL colour~&, BYVAL max_width&)
4.     FUNCTION uprintwidth (chars$, BYVAL txt_len&, BYVAL max_width&)
5.     FUNCTION uheight& ()
6.     FUNCTION uspacing& ()
7.     FUNCTION uascension& ()
8. END DECLARE
9.
10. SCREEN _NEWIMAGE(640, 480, 32)
11. _FONT _LOADFONT("cyberbit.ttf", 20)
12.
13. LOCATE 1, 100
14. QPrint "This is a whole bunch of crap." + CHR$(10) + "What happens to my crap, when there's too much crap to be printed on the screen, as I told it to be?  Will it wrap, or be truncated? Or what the heck will happen to my text when I have a crapload of it to print to the screen?"
15. SLEEP: QPrint "And what happens if I follow up with another line of crap?  Will it print below the other as it should, or is my positioning all wrong?"
16. SLEEP: QPrint "This is a whole bunch of crap.  What happens to my crap, when there's too much crap to be printed on the screen, as I told it to be?  Will it wrap, or be truncated? Or what the heck will happen to my text when I have a crapload of it to print to the screen?"
17. SLEEP: QPrint "And what happens if I follow up with another line of crap?  Will it print below the other as it should, or is my positioning all wrong?"
18. SLEEP: QPrint "This is a whole bunch of crap.  What happens to my crap, when there's too much crap to be printed on the screen, as I told it to be?  Will it wrap, or be truncated? Or what the heck will happen to my text when I have a crapload of it to print to the screen?"
19. SLEEP: QPrint "And what happens if I follow up with another line of crap?  Will it print below the other as it should, or is my positioning all wrong?"
20. SLEEP: QPrint "This is a whole bunch of crap.  What happens to my crap, when there's too much crap to be printed on the screen, as I told it to be?  Will it wrap, or be truncated? Or what the heck will happen to my text when I have a crapload of it to print to the screen?"
21. SLEEP: QPrint "And what happens if I follow up with another line of crap?  Will it print below the other as it should, or is my positioning all wrong?"
22. SLEEP
23. CLS
24.
25. QPrint "This is a whole bunch of crap.  What happens to my crap, when there's too much crap to be printed on the screen, as I told it to be?  Will it wrap, or be truncated? Or what the heck will happen to my text when I have a crapload of it to print to the screen?"
26. QPrint "And what happens if I follow up with another line of crap?  Will it print below the other as it should, or is my positioning all wrong?"
27.
28.
29. LOCATE 7, 1
30. COLOR _RGB32(255, 255, 0), _RGB32(0, 0, 255) 'Yellow on Blue
31. QPrint "Foo"
32. COLOR _RGB32(255, 0, 0) 'Red
33. QPrint "Bar"
34. COLOR _RGB32(0, 255, 0) ' Green
35. LOCATE 15, 1: PRINT "(For comparison, a normal PRINT statement)  ";
36.
37. PRINT "This is a whole bunch of crap.  What happens to my crap, when there's too much crap to be printed on the screen, as I told it to be?  Will it wrap, or be truncated? Or what the heck will happen to my text when I have a crapload of it to print to the screen?"
38.
39. COLOR _RGB(255, 0, 0), 0 '_RGB32(0, 0, 0)
40. FOR i = 1 TO 15
41.     SLEEP
42.     LOCATE i, 1
43.     QPrint STR$(i) + "To showcase locate at work with p's and q's and t's"
44. NEXT
45.
46.
47. SUB QPrint (temp$)
48.     STATIC m AS _MEM: m = _MEMIMAGE(0)
49.     DIM BreakPoint AS STRING
50.     BreakPoint = ",./- ;:!" 'I consider all these to be valid breakpoints.  If you want something else, change them.
51.     text$ = _TRIM$(temp$)
52.     count = -1
53.     DO
54.         'first find the natural length of the line
55.         x = POS(0): IF _FONTWIDTH THEN x = x * _FONTWIDTH
56.         y = CSRLIN
57.         wide% = _WIDTH - x - 1
58.         FOR i = 1 TO LEN(text$)
59.             IF ASC(text$, i) = 10 OR ASC(text$, i) = 13 THEN i = i - 1: EXIT FOR
60.             p = uprintwidth(text$, i, 0)
61.             IF p > wide% THEN EXIT FOR
62.         NEXT
63.         'IF i < LEN(text$) THEN lineend = i - 1 ELSE
64.         lineend = i
65.
66.         t$ = RTRIM$(LEFT$(text$, lineend)) 'at most, our line can't be any longer than what fits the screen.
67.         FOR i = lineend TO 1 STEP -1
68.             IF INSTR(BreakPoint, MID$(text$, i, 1)) THEN lineend = i: EXIT FOR
69.         NEXT
70.         out$ = RTRIM$(LEFT$(text$, lineend))
71.         text$ = LTRIM$(MID$(text$, lineend + 1))
72.         IF LEFT$(text$, 2) = CHR$(13) + CHR$(10) THEN text$ = MID$(text$, 3)
73.         IF LEFT$(text$, 2) = CHR$(10) + CHR$(13) THEN text$ = MID$(text$, 3)
74.         IF LEFT$(text$, 1) = CHR$(13) THEN text$ = MID$(text$, 2)
75.         IF LEFT$(text$, 1) = CHR$(10) THEN text$ = MID$(text$, 2)
76.         IF _BACKGROUNDCOLOR <> 0 THEN
77.             LINE (x - 1, (y - 1) * uheight)-STEP(uprintwidth(out$, LEN(out$), 0), uheight), _BACKGROUNDCOLOR, BF
78.         END IF
79.         w& = uprint(x - 1, (y - 1) * uheight, out$, LEN(out$), _DEFAULTCOLOR, 0)
80.         x = 1
81.         IF y + 1 >= _HEIGHT / uheight THEN 'scroll up
82.             w = uheight * _WIDTH * 4
83.             t$ = SPACE$(m.SIZE - w)
84.             _MEMGET m, m.OFFSET + w, t$
85.             CLS , 0
86.             _MEMPUT m, m.OFFSET, t$
87.             LOCATE y, x
88.         ELSE
89.             LOCATE y + 1, x
90.         END IF
91.
92.     LOOP UNTIL text$ = ""
93.     clean_exit:
94. END SUB
95.

Instead of trying to track all sorts of parameters for uprint  -- (x&, y&, chars$, txt_len&, colour~&, max_width&)  -- I've written a wrapper to break it down to one little command QPrint text$.

If you want colors, simply use QB64's normal COLOR command.  If you want to position your text, simply use LOCATE, like you normally would with your code.  It word wraps automatically, as well as scrolls the screen for us if we end up printing down on the bottom line of the screen.   Basically, use it more or less like you would a simplified PRINT statement that can only handle a single string output.

The advantage to this little command?  (And to falcon.h, in general?)

No cutting off parts of your characters.  Some fonts are terrible about having half the letter cut off (I was using a script font the other day that lost the whole top half of my T's and F's, and their flourishes.), and you should be able to see the difference and the problem with the example code, which relies on cyberbit.ttf.

One thing of note here:  QB64 v1.4 comes with cyberbit.ttf packaged with it.  V1.5 (the latest development build) doesn't.  If you're running the latest development build, you may want to download the file below and toss it in your folder for testing purposes.

NOTE 2:  QPrint's LOCATE and PRINT's LOCATE are two completely different areas of your screen.  Don't expect the two to match at all for you.   With the example, QPRINT is printing a character 26 pixels high, whereas PRINT cuts off segments of it and only prints a character 20 pixels high... That difference is going to naturally lead to the rows being at different heights, so don't expect to LOCATE y,x and then QPRINT, and then LOCATE y,x and PRINT, and have the numbers match up at all.

[SpriggsySpriggs]

Ooooo I shall save this for use when I decide to start making graphical applications again haha

[Pete]

Ooooo I shall save this for use when I decide to start making graphical applications again haha

Go to the dark side and leave SCREEN 0? No way!

Well I can finally say, I ran one of Steve's programs, and it was full of crap! :D :D :D

Next time, use foo. I think that's Latin for crap.

Pete

[SMcNeill]

Now that I'm finally home and able to work on things once again, here's an updated version of QPrint, and a couple of screenshots showcasing it:

Code: QB64: [Select]

1. $IF FALCON = UNDEFINED THEN
2.     $LET FALCON = TRUE
3.     DECLARE LIBRARY "falcon"
4.         SUB uprint_extra (BYVAL x&, BYVAL y&, BYVAL chars%&, BYVAL length%&, BYVAL kern&, BYVAL do_render&, txt_width&, BYVAL charpos%&, charcount&, BYVAL colour~&, BYVAL max_width&)
5.         FUNCTION uprint (BYVAL x&, BYVAL y&, chars$, BYVAL txt_len&, BYVAL colour~&, BYVAL max_width&)
6.         FUNCTION uprintwidth (chars$, BYVAL txt_len&, BYVAL max_width&)
7.         FUNCTION uheight& ()
8.         FUNCTION uspacing& ()
9.         FUNCTION uascension& ()
10.     END DECLARE
11.     DIM SHARED QPrintTextType AS STRING
12.     QPrintTextType = "ASCII"
13. $END IF
14.
15.
16. SCREEN _NEWIMAGE(1024, 720, 32)
17. _FONT _LOADFONT("cyberbit.ttf", 16, "monospace")
18.
19. QPrintTextType = "UTF8"
20.
21. OPEN "test.txt" FOR INPUT AS #1
22. DO UNTIL EOF(1)
23.     LINE INPUT #1, temp$
24.     QPrint temp$
25.     SLEEP
26. LOOP
27. END
28.
29.
30. FOR y = 0 TO 15
31.     FOR x = 0 TO 15
32.         QPrintString x * 30, y * uheight, CHR$(count)
33.         count = count + 1
34.     NEXT
35. NEXT
36. END
37.
38. SUB QPrint (temp$)
39.     STATIC m AS _MEM: m = _MEMIMAGE(0)
40.     DIM BreakPoint AS STRING
41.     BreakPoint = ",./- ;:!" 'I consider all these to be valid breakpoints.  If you want something else, change them.
42.     IF QPrintTextType = "ASCII" OR QPrintTextType = "" THEN text$ = _TRIM$(AnsiTextToUtf8Text$(temp$)) ELSE text$ = temp$
43.     count = -1
44.     DO
45.         'first find the natural length of the line
46.         x = POS(0): IF _FONTWIDTH THEN x = x * _FONTWIDTH
47.         y = CSRLIN
48.         wide% = _WIDTH - x - 1
49.         FOR i = 1 TO LEN(text$)
50.             IF ASC(text$, i) = 10 OR ASC(text$, i) = 13 THEN i = i - 1: EXIT FOR
51.             p = uprintwidth(text$, i, 0)
52.             IF p > wide% THEN EXIT FOR
53.         NEXT
54.         'IF i < LEN(text$) THEN lineend = i - 1 ELSE
55.         lineend = i
56.
57.         t$ = RTRIM$(LEFT$(text$, lineend)) 'at most, our line can't be any longer than what fits the screen.
58.         FOR i = lineend TO 1 STEP -1
59.             IF INSTR(BreakPoint, MID$(text$, i, 1)) THEN lineend = i: EXIT FOR
60.         NEXT
61.         out$ = RTRIM$(LEFT$(text$, lineend))
62.         text$ = LTRIM$(MID$(text$, lineend + 1))
63.         IF LEFT$(text$, 2) = CHR$(13) + CHR$(10) THEN text$ = MID$(text$, 3)
64.         IF LEFT$(text$, 2) = CHR$(10) + CHR$(13) THEN text$ = MID$(text$, 3)
65.         IF LEFT$(text$, 1) = CHR$(13) THEN text$ = MID$(text$, 2)
66.         IF LEFT$(text$, 1) = CHR$(10) THEN text$ = MID$(text$, 2)
67.         IF _BACKGROUNDCOLOR <> 0 THEN
68.             LINE (x - 1, (y - 1) * uheight)-STEP(uprintwidth(out$, LEN(out$), 0), uheight), _BACKGROUNDCOLOR, BF
69.         END IF
70.         w& = uprint(x - 1, (y - 1) * uheight, out$, LEN(out$), _DEFAULTCOLOR, 0)
71.         x = 1
72.         IF y + 1 >= _HEIGHT / uheight THEN 'scroll up
73.             h = uheight * _WIDTH * 4
74.             t$ = SPACE$(m.SIZE - h)
75.             _MEMGET m, m.OFFSET + h, t$
76.             CLS , 0
77.             _MEMPUT m, m.OFFSET, t$
78.             LOCATE y, x
79.         ELSE
80.             LOCATE y + 1, x
81.         END IF
82.
83.     LOOP UNTIL text$ = ""
84.     clean_exit:
85. END SUB
86.
87. FUNCTION QPrintWidth& (out$)
88.     QPrintWidth = uprintwidth(out$, LEN(out$), 0)
89. END FUNCTION
90.
91. FUNCTION QFontHeight
92.     QFontHeight = uheight
93. END FUNCTION
94.
95. SUB QPrintString (x, y, text$)
96.     IF QPrintTextType = "ASCII" OR QPrintTextType = "" THEN temp$ = _TRIM$(AnsiTextToUtf8Text$(text$)) ELSE temp$ = text$
97.     IF _BACKGROUNDCOLOR <> 0 THEN
98.         LINE (x, y)-STEP(uprintwidth(temp$, LEN(temp$), 0), uheight), _BACKGROUNDCOLOR, BF
99.     END IF
100.     w& = uprint(x, y, temp$, LEN(temp$), _DEFAULTCOLOR, 0)
101. END SUB
102.
103. FUNCTION AnsiTextToUtf8Text$ (text$)
104.     DIM chi&, ascii%, unicode&, aci%
105.     FOR chi& = 1 TO LEN(text$)
106.         '--- get ANSI char code, reset Unicode ---
107.         unicode& = _MAPUNICODE(ASC(text$, chi&))
108.         IF unicode& = 0 THEN unicode& = 65533 'replacement character
109.         AnsiTextToUtf8Text$ = AnsiTextToUtf8Text$ + UnicodeToUtf8Char$(unicode&)
110.     NEXT chi&
111. END FUNCTION
112.
113. FUNCTION UnicodeToUtf8Char$ (unicode&)
114.     '--- option _explicit requirements ---
115.     DIM uc&, first%, remain%, conti%
116.     '--- UTF-8 encoding ---
117.     IF unicode& < 128 THEN
118.         '--- standard ASCII (0-127) goes as is ---
119.         UnicodeToUtf8Char$ = CHR$(unicode&)
120.         EXIT FUNCTION
121.     ELSE
122.         '--- encode the Unicode into UTF-8 notation ---
123.         UnicodeToUtf8Char$ = "": uc& = unicode& 'avoid argument side effect
124.         first% = &B10000000: remain% = 63
125.         DO
126.             first% = &B10000000 OR (first% \ 2): remain% = (remain% \ 2)
127.             conti% = &B10000000 OR (uc& AND &B00111111): uc& = uc& \ 64
128.             UnicodeToUtf8Char$ = CHR$(conti%) + UnicodeToUtf8Char$
129.             IF uc& <= remain% THEN
130.                 first% = (first% OR uc&): uc& = 0
131.             END IF
132.         LOOP UNTIL uc& = 0
133.         UnicodeToUtf8Char$ = CHR$(first%) + UnicodeToUtf8Char$
134.     END IF
135. END FUNCTION
136.

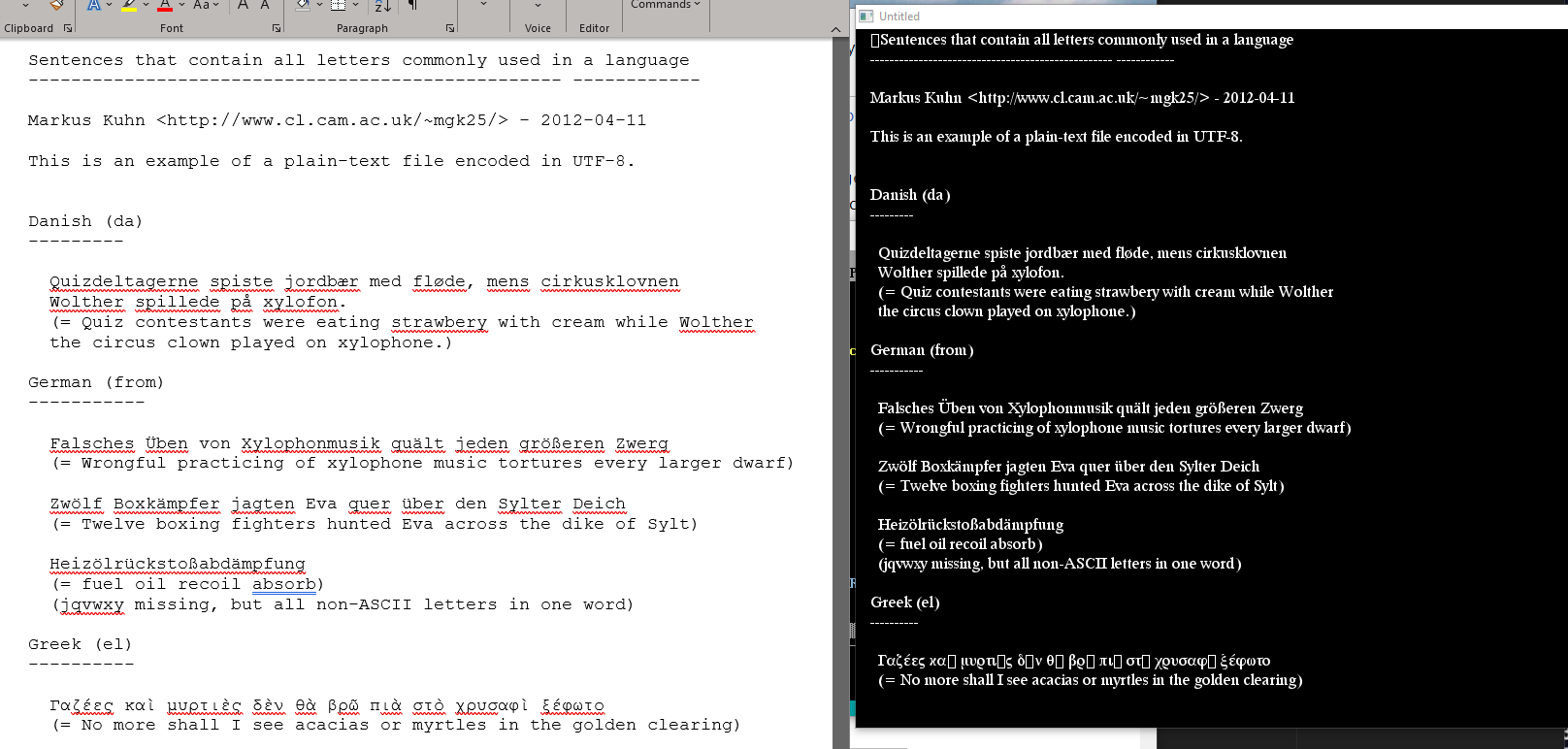

Now, the first image above, is using QPrint to print Unicode (UTF-8) formatted text.  The image on the left is test.txt opened in Microsoft Word, and the image on the right is what we generate using QPrint.  As you can see, the font sizes and windows might be a little different resolution, but all the characters are displaying and matching properly for us.  We're printing valid unicode to the screen.

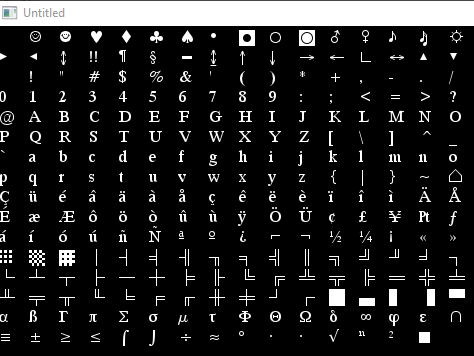

The second image, you guys might recognize as our ASCII chart.  It's the whole ASCII range of characters mapped over and converted from QB64's codepages over to UTF8 format, and then printed to the screen for us.

By default, QPrint is set to print ASCII-code pages, but it can be converted to use UTF-8 code pages with a simple variable change:

QPrintTextType = "ASCII"  <-- This sets us to our default printing using the ASCII code page.  (Or just leave it blank as "" does the same.)

QPrintTextType = <ANYTHING ELSE> and we try to print it as UTF-8 formatted text.

Change the global variable, change how you're printing...

It's now THAT simple to display UTF-8 code on to the screen.


NOTE:  To use QPrint, you have to load a custom font with it.  QB64's in-built fonts currently aren't working as you'd think they should with it, so be certain to load your own font.


Now all I need to do is tie these into my Extended Keyboard library, and add them to our functionality there, and we'll not only have a way to print the full UTF8 character set, but also a means to input from keyboards which use such extended keys.  (That is, after someone takes the time to map the proper keys to their specific keyboard layout.  At the moment, the library only supports US, German, Italian, and UK keyboard layouts, if I remember correctly.)

File test.txt is included below for those who'd like to test it for themselves.  ;)

[SMcNeill]

Code: QB64: [Select]

1. $If FALCON = UNDEFINED Then
2.     $Let FALCON = TRUE
3.     Declare Library "./falcon"
4.         Sub uprint_extra (ByVal x&, Byval y&, Byval chars%&, Byval length%&, Byval kern&, Byval do_render&, txt_width&, Byval charpos%&, charcount&, Byval colour~&, Byval max_width&)
5.         Function uprint (ByVal x&, Byval y&, chars$, Byval txt_len&, Byval colour~&, Byval max_width&)
6.         Function uprintwidth (chars$, Byval txt_len&, Byval max_width&)
7.         Function uheight& ()
8.         Function uspacing& ()
9.         Function uascension& ()
10.     End Declare
11.     Dim Shared QPrintTextType As String
12.     QPrintTextType = "ASCII"
13. $End If
14.
15.
16. Screen _NewImage(1024, 720, 32)
17. f = _LoadFont("cyberbit.ttf", 20, "monospace")
18. _Font f
19.
20.
21. QPrintTextType = "ASCII"
22.
23.
24.
25. For y = 0 To 15
26.     For x = 0 To 15
27.         QPrintString x * 30, y * uheight, Chr$(count)
28.         count = count + 1
29.     Next
30. Next
31. End
32.
33. Sub QPrint (temp$)
34.     Static m As _MEM: m = _MemImage(0)
35.     Dim BreakPoint As String
36.     BreakPoint = ",./- ;:!" 'I consider all these to be valid breakpoints.  If you want something else, change them.
37.     If QPrintTextType = "ASCII" Or QPrintTextType = "" Then text$ = _Trim$(AnsiTextToUtf8Text$(temp$)) Else text$ = temp$
38.     count = -1
39.     Do
40.         'first find the natural length of the line
41.         x = Pos(0) - 1: If _FontWidth Then x = x * _FontWidth
42.         y = CsrLin
43.         wide% = _Width - x - 1
44.         For i = 1 To Len(text$)
45.             If Asc(text$, i) = 10 Or Asc(text$, i) = 13 Then i = i - 1: Exit For
46.             p = uprintwidth(text$, i, 0)
47.             If p > wide% Then Exit For
48.         Next
49.         'IF i < LEN(text$) THEN lineend = i - 1 ELSE
50.         lineend = i
51.
52.         t$ = RTrim$(Left$(text$, lineend)) 'at most, our line can't be any longer than what fits the screen.
53.         For i = lineend To 1 Step -1
54.             If InStr(BreakPoint, Mid$(text$, i, 1)) Then lineend = i: Exit For
55.         Next
56.         out$ = RTrim$(Left$(text$, lineend))
57.         text$ = LTrim$(Mid$(text$, lineend + 1))
58.         If Left$(text$, 2) = Chr$(13) + Chr$(10) Then text$ = Mid$(text$, 3)
59.         If Left$(text$, 2) = Chr$(10) + Chr$(13) Then text$ = Mid$(text$, 3)
60.         If Left$(text$, 1) = Chr$(13) Then text$ = Mid$(text$, 2)
61.         If Left$(text$, 1) = Chr$(10) Then text$ = Mid$(text$, 2)
62.         If _BackgroundColor <> 0 Then
63.             Line (x - 1, (y - 1) * uheight)-Step(uprintwidth(out$, Len(out$), 0), uheight), _BackgroundColor, BF
64.         End If
65.         w& = uprint(x - 1, (y - 1) * uheight, out$, Len(out$), _DefaultColor, 0)
66.         x = 1
67.         If y + 1 >= _Height / uheight Then 'scroll up
68.             h = uheight * _Width * 4
69.             t$ = Space$(m.SIZE - h)
70.             _MemGet m, m.OFFSET + h, t$
71.             Cls , 0
72.             _MemPut m, m.OFFSET, t$
73.             Locate y, x
74.         Else
75.             Locate y + 1, x
76.         End If
77.
78.     Loop Until text$ = ""
79.     clean_exit:
80. End Sub
81.
82. Function QPrintWidth& (out$)
83.     QPrintWidth = uprintwidth(out$, Len(out$), 0)
84. End Function
85.
86. Function QFontHeight
87.     QFontHeight = uheight
88. End Function
89.
90. Sub QPrintString (x, y, text$)
91.     If QPrintTextType = "ASCII" Or QPrintTextType = "" Then temp$ = _Trim$(AnsiTextToUtf8Text$(text$)) Else temp$ = text$
92.     If _BackgroundColor <> 0 Then
93.         Line (x, y)-Step(uprintwidth(temp$, Len(temp$), 0), uheight), _BackgroundColor, BF
94.     End If
95.     w& = uprint(x, y, temp$, Len(temp$), _DefaultColor, 0)
96. End Sub
97.
98. Function AnsiTextToUtf8Text$ (text$)
99.     Dim chi&, ascii%, unicode&, aci%
100.     For chi& = 1 To Len(text$)
101.         '--- get ANSI char code, reset Unicode ---
102.         unicode& = _MapUnicode(Asc(text$, chi&))
103.         If unicode& = 0 Then unicode& = 65533 'replacement character
104.         temp$ = temp$ + UnicodeToUtf8Char$(unicode&)
105.     Next chi&
106.     AnsiTextToUtf8Text$ = temp$
107. End Function
108.
109. Function UnicodeToUtf8Char$ (unicode&)
110.     '--- option _explicit requirements ---
111.     Dim uc&, first%, remain%, conti%
112.     '--- UTF-8 encoding ---
113.     If unicode& < 128 Then
114.         '--- standard ASCII (0-127) goes as is ---
115.         UnicodeToUtf8Char$ = Chr$(unicode&)
116.         Exit Function
117.     Else
118.         '--- encode the Unicode into UTF-8 notation ---
119.         temp$ = "": uc& = unicode& 'avoid argument side effect
120.         first% = &B10000000: remain% = 63
121.         Do
122.             first% = &B10000000 Or (first% \ 2): remain% = (remain% \ 2)
123.             conti% = &B10000000 Or (uc& And &B00111111): uc& = uc& \ 64
124.             temp$ = Chr$(conti%) + temp$
125.             If uc& <= remain% Then
126.                 first% = (first% Or uc&): uc& = 0
127.             End If
128.         Loop Until uc& = 0
129.         UnicodeToUtf8Char$ = Chr$(first%) + temp$
130.     End If
131. End Function
132.

Functions updated to work in version 2.0+, without any glitches from the recursive function fix causing things to error out on us.  ;)
