Author Topic: Spilling Paint Non-Stop  (Read 4408 times)

0 Members and 1 Guest are viewing this topic.

Offline SierraKen

  • Forum Resident
  • Posts: 1454
    • View Profile
Spilling Paint Non-Stop
« on: January 11, 2020, 05:39:49 pm »
Code: QB64: [Select]
  1. _TITLE "Spilling Paint Non-Stop by SierraKen"
  2. SCREEN _NEWIMAGE(800, 600, 32)
  5.     a = INT(RND * 300) + 60
  6.     st = INT(RND * 1000)
  7.     st = st / 900
  8.     IF st < .1 THEN st = .1
  9.     c1 = INT(RND * 200) + 54
  10.     c2 = INT(RND * 200) + 54
  11.     c3 = INT(RND * 200) + 54
  12.     s = 0
  13.     FOR d = 0 TO 250 STEP st
  14.         _LIMIT 2000
  15.         s = s + .5
  16.         x = COS(s * 3.141592 / a) * d
  17.         y = SIN(s * 3.151492 / a) * d
  18.         CIRCLE (x + 400, y + 300), 30, _RGB32(c1, c2, c3)
  19.         PAINT (x + 400, y + 300), _RGB32(c1, c2, c3)
  20.     NEXT d
  22.
« Last Edit: January 11, 2020, 05:42:17 pm by SierraKen »
Logged

Offline johnno56

  • Forum Resident
  • Posts: 1270
  • Live long and prosper.
    • View Profile
Re: Spilling Paint Non-Stop
« Reply #1 on: January 12, 2020, 06:04:24 am »
"Cleanup on aisle #3"... lol

Cool...
Logged
Logic is the beginning of wisdom.

Offline Petr

  • Forum Resident
  • Posts: 1720
  • The best code is the DNA of the hops.
    • View Profile
Re: Spilling Paint Non-Stop
« Reply #2 on: January 12, 2020, 10:42:38 am »
Hi Sierraken, try it with Steve' s CircleFill:

Code: QB64: [Select]
  1. _TITLE "Spilling Paint Non-Stop by SierraKen"
  2. SCREEN _NEWIMAGE(800, 600, 32)
  5.     a = INT(RND * 300) + 60
  6.     st = INT(RND * 1000)
  7.     st = st / 900
  8.     IF st < .1 THEN st = .1
  9.     c1 = INT(RND * 200) + 54
  10.     c2 = INT(RND * 200) + 54
  11.     c3 = INT(RND * 200) + 54
  12.     s = 0
  13.     FOR d = 0 TO 250 STEP st
  14.         _LIMIT 2000
  15.         s = s + .5
  16.         x = COS(s * 3.141592 / a) * d
  17.         y = SIN(s * 3.151492 / a) * d
  18.         '   CIRCLE (x + 400, y + 300), 30, _RGB32(c1, c2, c3)
  19.         '   PAINT (x + 400, y + 300), _RGB32(c1, c2, c3)
  20.         CircleFill x + 400, y + 300, 30, _RGB32(c1, c2, c3)
  21.     NEXT d
  23.
  24.
  25. SUB CircleFill (CX AS INTEGER, CY AS INTEGER, R AS INTEGER, C AS _UNSIGNED LONG)
  26.     ' CX = center x coordinate
  27.     ' CY = center y coordinate
  28.     '  R = radius
  29.     '  C = fill color
  30.     DIM Radius AS INTEGER, RadiusError AS INTEGER
  31.     DIM X AS INTEGER, Y AS INTEGER
  32.     Radius = ABS(R)
  33.     RadiusError = -Radius
  34.     X = Radius
  35.     Y = 0
  36.     IF Radius = 0 THEN PSET (CX, CY), C: EXIT SUB
  37.     LINE (CX - X, CY)-(CX + X, CY), C, BF
  38.     WHILE X > Y
  39.         RadiusError = RadiusError + Y * 2 + 1
  40.         IF RadiusError >= 0 THEN
  41.             IF X <> Y + 1 THEN
  42.                 LINE (CX - Y, CY - X)-(CX + Y, CY - X), C, BF
  43.                 LINE (CX - Y, CY + X)-(CX + Y, CY + X), C, BF
  44.             END IF
  45.             X = X - 1
  46.             RadiusError = RadiusError - X * 2
  47.         END IF
  48.         Y = Y + 1
  49.         LINE (CX - X, CY - Y)-(CX + X, CY - Y), C, BF
  50.         LINE (CX - X, CY + Y)-(CX + X, CY + Y), C, BF
  51.     WEND
  53.
  54.
  55.

Logged

Offline bplus

  • Global Moderator
  • Forum Resident
  • Posts: 8053
  • b = b + ...
    • View Profile
Re: Spilling Paint Non-Stop
« Reply #3 on: January 12, 2020, 05:07:03 pm »
Here is my try at slinging paint, wear your goggles:
Code: QB64: [Select]
  1. _TITLE "Splats" 'b+ 2020-01-12
  2. ' from eRATication/cheese wedge tests/ multiple explosions.bas 2018-07-28 translated from
  3. 'bomb.bas for SmallBASIC 0.12.2 [B+=MGA] 2016-05-09 from explosion study
  4.
  5. CONST xmax = 1300, ymax = 760, pi2 = 6.283185
  6. TYPE particle
  7.     x AS SINGLE
  8.     y AS SINGLE
  9.     dx AS SINGLE
  10.     dy AS SINGLE
  11.     size AS SINGLE
  12.     spread AS SINGLE
  13.     'tf AS INTEGER
  15. REDIM SHARED dots(1) AS particle
  16. SCREEN _NEWIMAGE(xmax, ymax, 32)
  20.
  22.     COLOR , _RGB32(RND * 255, RND * 255, RND * 255)
  23.     CLS
  24.     stopit = (RND * 100) \ 1 + 15
  25.     FOR i = 1 TO stopit
  26.         dx = RND * 60 - 30: dy = RND * 60 - 30: a = 7 * (RND * 10 - 5): b = 7 * (RND * 10 - 5)
  27.         x = xmax * RND: y = ymax * RND
  28.         kolor = _RGB32(RND * 255, RND * 255, RND * 255)
  29.         WHILE x > -100 AND x < xmax + 100 AND y > -100 AND y < ymax + 100
  30.             splat x, y, kolor
  31.             x = x + dx: y = y + dy
  32.             dx = dx + a: dy = dy + b
  33.             _DISPLAY
  34.             '_LIMIT 5
  35.         WEND
  36.         '_DELAY 1
  37.     NEXT
  38.     _DELAY 5
  41.
  42. SUB splat (x, y, kolor AS _UNSIGNED LONG)
  43.     round = 5
  44.     nRounds = (RND * 10) \ 1 + 1
  45.     nDots = nRounds * round
  46.
  47.     REDIM dots(1 TO nDots) AS particle
  48.     FOR i = 1 TO round
  49.         NewDot i, x, y
  50.     NEXT
  51.     rounds = round
  52.     FOR loopCount = 0 TO 20
  53.         IF _KEYDOWN(27) THEN END
  54.         FOR i = 1 TO rounds
  55.             dots(i).x = dots(i).x + dots(i).dx
  56.             dots(i).y = dots(i).y + dots(i).dy
  57.             dots(i).dx = dots(i).dx * dots(i).spread
  58.             dots(i).dy = dots(i).dy * dots(i).spread
  59.             fcirc dots(i).x, dots(i).y, dots(i).size / 2, kolor
  60.             dots(i).size = dots(i).size * dots(i).spread
  61.         NEXT
  62.         IF rounds < nDots THEN
  63.             FOR i = 1 TO round
  64.                 NewDot i, x, y
  65.             NEXT
  66.             rounds = rounds + round
  67.         END IF
  68.         _DISPLAY
  69.     NEXT
  71.
  72. SUB NewDot (i, x, y)
  73.     angle = RND * pi2
  74.     r = RND * 5
  75.     dots(i).x = x + r * COS(angle)
  76.     dots(i).y = y + r * SIN(angle)
  77.     dots(i).size = RND * 15 + 5
  78.     r = RND * 3
  79.     dots(i).dx = r * (15 - dots(i).size) * COS(angle)
  80.     dots(i).dy = r * (15 - dots(i).size) * SIN(angle)
  81.     dots(i).spread = RND * .3 + .2
  83.
  84. SUB fcirc (CX AS INTEGER, CY AS INTEGER, R AS INTEGER, C AS _UNSIGNED LONG)
  85.     DIM Radius AS INTEGER, RadiusError AS INTEGER
  86.     DIM X AS INTEGER, Y AS INTEGER
  87.     Radius = ABS(R): RadiusError = -Radius: X = Radius: Y = 0
  88.     IF Radius = 0 THEN PSET (CX, CY), C: EXIT SUB
  89.     LINE (CX - X, CY)-(CX + X, CY), C, BF
  90.     WHILE X > Y
  91.         RadiusError = RadiusError + Y * 2 + 1
  92.         IF RadiusError >= 0 THEN
  93.             IF X <> Y + 1 THEN
  94.                 LINE (CX - Y, CY - X)-(CX + Y, CY - X), C, BF
  95.                 LINE (CX - Y, CY + X)-(CX + Y, CY + X), C, BF
  96.             END IF
  97.             X = X - 1
  98.             RadiusError = RadiusError - X * 2
  99.         END IF
  100.         Y = Y + 1
  101.         LINE (CX - X, CY - Y)-(CX + X, CY - Y), C, BF
  102.         LINE (CX - X, CY + Y)-(CX + X, CY + Y), C, BF
  103.     WEND
  105.
  106.
  107.
Logged

Offline johnno56

  • Forum Resident
  • Posts: 1270
  • Live long and prosper.
    • View Profile
Re: Spilling Paint Non-Stop
« Reply #4 on: January 12, 2020, 05:28:16 pm »
I don't think goggles are going to be enough! Cool...
Logged
Logic is the beginning of wisdom.

Offline SierraKen

  • Forum Resident
  • Posts: 1454
    • View Profile
Re: Spilling Paint Non-Stop
« Reply #5 on: January 12, 2020, 10:25:30 pm »
Thanks Petr! I need to learn how to use that code.

LOL B+! Great job.
Logged

Offline SMcNeill

  • QB64 Developer
  • Forum Resident
  • Posts: 3972
    • View Profile
    • Steve’s QB64 Archive Forum
Re: Spilling Paint Non-Stop
« Reply #6 on: January 13, 2020, 12:00:41 am »
Quote from: SierraKen on January 12, 2020, 10:25:30 pm
Thanks Petr! I need to learn how to use that code.

LOL B+! Great job.
Code: [Select]
        ‘ CIRCLE (x + 400, y + 300), 30, _RGB32(c1, c2, c3)
        CircleFill x + 400, y + 300, 30, _RGB32(c1, c2, c3)
As you can see from Petr’s replacement above, it’s usually just as simple as using the sub name CircleFill instead of using Circle.  Just don’t put the X/Y coordinates in parentheses.
Logged
https://github.com/SteveMcNeill/Steve64 — A github collection of all things Steve!

Offline bplus

  • Global Moderator
  • Forum Resident
  • Posts: 8053
  • b = b + ...
    • View Profile
Re: Spilling Paint Non-Stop
« Reply #7 on: January 13, 2020, 02:44:24 am »

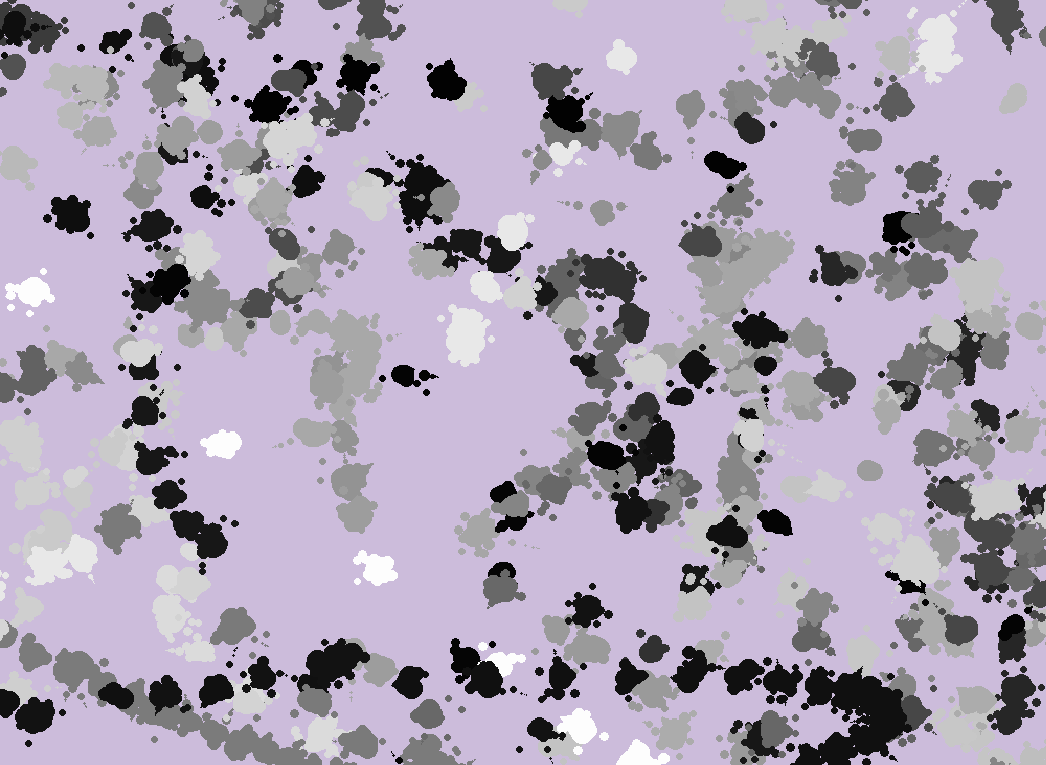

I added a toggle with space bar to go between color and shades of gray fro white to black which looks better less color is more sometimes:
Code: QB64: [Select]
  1. _TITLE "Splats" 'b+ 2020-01-12
  2. ' from eRATication/cheese wedge tests/ multiple explosions.bas 2018-07-28 translated from
  3. 'bomb.bas for SmallBASIC 0.12.2 [B+=MGA] 2016-05-09 from explosion study
  4.
  5. CONST xmax = 1300, ymax = 760, pi2 = 6.283185
  6. TYPE particle
  7.     x AS SINGLE
  8.     y AS SINGLE
  9.     dx AS SINGLE
  10.     dy AS SINGLE
  11.     size AS SINGLE
  12.     spread AS SINGLE
  13.     'tf AS INTEGER
  15. REDIM SHARED dots(1) AS particle
  16. SCREEN _NEWIMAGE(xmax, ymax, 32)
  20.
  22.     COLOR , _RGB32(RND * 255, RND * 255, RND * 255)
  23.     CLS
  24.     stopit = (RND * 100) \ 1 + 15
  25.     FOR i = 1 TO stopit
  26.         dx = RND * 60 - 30: dy = RND * 60 - 30: a = 7 * (RND * 10 - 5): b = 7 * (RND * 10 - 5)
  27.         x = xmax * RND: y = ymax * RND
  28.         r = RND * 255
  29.         IF INKEY$ = " " THEN toggle = 1 - toggle
  30.         IF toggle THEN
  31.             kolor = _RGB32(r, r, r)
  32.         ELSE
  33.             kolor = _RGB32(RND * 255, RND * 255, RND * 255)
  34.         END IF
  35.         WHILE x > -100 AND x < xmax + 100 AND y > -100 AND y < ymax + 100
  36.             splat x, y, kolor
  37.             x = x + dx: y = y + dy
  38.             dx = dx + a: dy = dy + b
  39.             _DISPLAY
  40.         WEND
  41.     NEXT
  42.     _DELAY 5
  45.
  46. SUB splat (x, y, kolor AS _UNSIGNED LONG)
  47.     round = 5
  48.     nRounds = (RND * 10) \ 1 + 1
  49.     nDots = nRounds * round
  50.
  51.     REDIM dots(1 TO nDots) AS particle
  52.     FOR i = 1 TO round
  53.         NewDot i, x, y
  54.     NEXT
  55.     rounds = round
  56.     FOR loopCount = 0 TO 20
  57.         IF _KEYDOWN(27) THEN END
  58.         FOR i = 1 TO rounds
  59.             dots(i).x = dots(i).x + dots(i).dx
  60.             dots(i).y = dots(i).y + dots(i).dy
  61.             dots(i).dx = dots(i).dx * dots(i).spread
  62.             dots(i).dy = dots(i).dy * dots(i).spread
  63.             fcirc dots(i).x, dots(i).y, dots(i).size / 2, kolor
  64.             dots(i).size = dots(i).size * dots(i).spread
  65.         NEXT
  66.         IF rounds < nDots THEN
  67.             FOR i = 1 TO round
  68.                 NewDot i, x, y
  69.             NEXT
  70.             rounds = rounds + round
  71.         END IF
  72.         _DISPLAY
  73.     NEXT
  75.
  76. SUB NewDot (i, x, y)
  77.     angle = RND * pi2
  78.     r = RND * 5
  79.     dots(i).x = x + r * COS(angle)
  80.     dots(i).y = y + r * SIN(angle)
  81.     dots(i).size = RND * 15 + 5
  82.     r = RND * 3
  83.     dots(i).dx = r * (15 - dots(i).size) * COS(angle)
  84.     dots(i).dy = r * (15 - dots(i).size) * SIN(angle)
  85.     dots(i).spread = RND * .3 + .2
  87.
  88. SUB fcirc (CX AS INTEGER, CY AS INTEGER, R AS INTEGER, C AS _UNSIGNED LONG)
  89.     DIM Radius AS INTEGER, RadiusError AS INTEGER
  90.     DIM X AS INTEGER, Y AS INTEGER
  91.     Radius = ABS(R): RadiusError = -Radius: X = Radius: Y = 0
  92.     IF Radius = 0 THEN PSET (CX, CY), C: EXIT SUB
  93.     LINE (CX - X, CY)-(CX + X, CY), C, BF
  94.     WHILE X > Y
  95.         RadiusError = RadiusError + Y * 2 + 1
  96.         IF RadiusError >= 0 THEN
  97.             IF X <> Y + 1 THEN
  98.                 LINE (CX - Y, CY - X)-(CX + Y, CY - X), C, BF
  99.                 LINE (CX - Y, CY + X)-(CX + Y, CY + X), C, BF
  100.             END IF
  101.             X = X - 1
  102.             RadiusError = RadiusError - X * 2
  103.         END IF
  104.         Y = Y + 1
  105.         LINE (CX - X, CY - Y)-(CX + X, CY - Y), C, BF
  106.         LINE (CX - X, CY + Y)-(CX + X, CY + Y), C, BF
  107.     WEND
  109.
  110.
  111.

shades of grey.PNG
* shades of grey.PNG (Filesize: 84.14 KB, Dimensions: 1046x765, Views: 176)
Logged
Pages: [1]   Go Up
« previous next »
