Author Topic: Northern Lights  (Read 4800 times)

0 Members and 1 Guest are viewing this topic.

Offline Richard Frost

  • Seasoned Forum Regular
  • Posts: 316
  • Needle nardle noo. - Peter Sellers
    • View Profile
Northern Lights
« on: January 06, 2020, 01:42:50 am »
Code: QB64: [Select]
  1. _TITLE "Aurora by rfrost@mail.com"
  3. DEFINT A-Z
  4. nw1 = 10: nw2 = 14: ar! = ATN(1) / 45: xm = _DESKTOPWIDTH: ym = _DESKTOPHEIGHT
  5. DIM r(32), g(32), b(32), sw!(1, nw2), si!(nw2), miny(1, xm), maxy(1, xm), sines(360)
  6. i& = _NEWIMAGE(xm, ym, 32)
  8. _DELAY .2 '                                           let screen stabilize
  10. FOR i = 0 TO 360 '                                    color offsets
  11.     sines(i) = 30 * SIN(_D2R(i))
  13. FOR i = 0 TO 31 '                                     colors
  14.     READ z$, r$, g$, b$
  15.     r(i) = VAL(r$): g(i) = VAL(g$): b(i) = VAL(b$)
  18.     FOR i = 1 TO nw2
  19.         sw!(0, i) = RND * 360 * ar! '                 sine wave
  20.         sw!(1, i) = sw!(0, i) '                       duplicate
  21.         si!(i) = (RND * 50 - 25) / 200 * ar! '        sine wave increment
  22.     NEXT i
  23.     FOR x = 0 TO xm - 1: FOR z = 0 TO 1
  24.             miny(z, x) = 999
  25.             maxy(z, x) = -999
  26.     NEXT z: NEXT x
  27.     pass = 0
  28.     DO: _LIMIT 10
  29.         CLS
  30.         FOR x = 0 TO xm - 1
  31.             FOR z = 0 TO 1 '                          two waves
  32.                 t! = 0 '                              total
  33.                 IF z THEN j = nw2 ELSE j = nw1
  34.                 FOR i = 1 TO j '                      sum of 10 waves for top, 14 for bottom
  35.                     t! = t! + (20 + RND * 10) * COS(sw!(z, i))
  36.                     sw!(z, i) = sw!(z, i) + si!(i) * 5
  37.                 NEXT i
  38.                 y = 150 + t! + z * (70 + x / 3)
  39.                 IF y < miny(z, x) THEN miny(z, x) = y
  40.                 IF y > maxy(z, x) THEN maxy(z, x) = y
  41.                 dd = (maxy(z, x) - miny(z, x)) \ 8
  42.                 miny(z, x) = miny(z, x) + RND * dd
  43.                 maxy(z, x) = maxy(z, x) - RND * dd
  44.                 yd = maxy(z, x) - miny(z, x) + 1
  45.                 rr = RND * 10
  46.                 IF rr < 3 THEN
  47.                     IF rr = 0 THEN ra = (ra + RND * 20 + 1) MOD 360
  48.                     IF rr = 1 THEN ga = (ga + RND * 20 + 1) MOD 360
  49.                     IF rr = 2 THEN ba = (ba + RND * 20 + 1) MOD 360
  50.                 END IF
  51.                 FOR y = miny(z, x) TO maxy(z, x)
  52.                     i = (y - miny(z, x)) / yd * 30 + 1
  53.                     j = (j + 1) MOD ((RND * 100) + 100)
  54.                     IF j = 1 THEN k = RND * 3 + 1
  55.                     rt = r(i) * k + sines(ra)
  56.                     gt = g(i) * k + sines(ga)
  57.                     bt = b(i) * k + sines(ba)
  58.                     PSET (x, y), _RGB32(rt, gt, bt)
  59.                 NEXT y
  60.             NEXT z
  61.         NEXT x
  62.         IF pass > 4 THEN _DISPLAY
  63.         i$ = INKEY$
  64.         IF i$ = CHR$(27) THEN SYSTEM '                Esc to quit
  65.         IF i$ = " " THEN SLEEP '                      spacebar to pause
  66.         i = RND * (nw2 - 1) + 1
  67.         si!(i) = (RND * 50 - 25) / 200 * ar!
  68.         pass = pass + 1
  69.     LOOP UNTIL pass > 999
  71. '         r    g    b
  72. DATA 00," 0"," 0","25"
  73. DATA 01," 0"," 0","35"
  74. DATA 02," 0"," 0","45"
  75. DATA 03," 0"," 0","50"
  76. DATA 04," 0"," 0","55"
  77. DATA 05," 0"," 0","60"
  78. DATA 06," 0"," 0","63"
  79. DATA 07," 0","10","40"
  80. DATA 08," 0","25","30"
  81. DATA 09," 0","30","20"
  82. DATA 10," 0","35","10"
  83. DATA 11," 0","38"," 0"
  84. DATA 12," 0","40"," 0"
  85. DATA 13," 0","45"," 0"
  86. DATA 14," 0","50"," 0"
  87. DATA 15," 0","51"," 0"
  88. DATA 16," 0","52"," 0"
  89. DATA 17," 0","53"," 0"
  90. DATA 18," 0","54"," 0"
  91. DATA 19," 0","55"," 0"
  92. DATA 20," 0","56"," 0"
  93. DATA 21," 0","57"," 0"
  94. DATA 22," 0","58"," 0"
  95. DATA 23," 0","59"," 0"
  96. DATA 24," 0","60"," 0"
  97. DATA 25," 0","61"," 0"
  98. DATA 26," 0","62"," 0"
  99. DATA 27," 0","63"," 0"
  100. DATA 28,"45"," 0"," 0"
  101. DATA 29,"50"," 0"," 0"
  102. DATA 30,"55"," 0"," 0"
  103. DATA 31,"63"," 0"," 0"
  104.
Logged
It works better if you plug it in.

Offline Pete

  • Forum Resident
  • Posts: 2361
  • Cuz I sez so, varmint!
    • View Profile
Re: Northern Lights
« Reply #1 on: January 06, 2020, 02:00:09 am »
Experienced a sudden craving for ribbon candy.

Pete
Logged
Want to learn how to write code on cave walls? https://www.tapatalk.com/groups/qbasic/qbasic-f1/

Offline Richard Frost

  • Seasoned Forum Regular
  • Posts: 316
  • Needle nardle noo. - Peter Sellers
    • View Profile
Ribbon Candy
« Reply #2 on: January 06, 2020, 08:30:44 am »
Code: QB64: [Select]
  1. _TITLE "Ribbon Candy"
  2. DEFINT A-Z
  4. DIM SHARED st(20), rgb(140, 2), d(3)
  7. FOR t = 0 TO 2
  8.     rgb(0, t) = RND * (62 - 8) + 8
  9.     d(t) = SGN(INT(RND * 8) - 4.1)
  11. LINE (0, 0)-(639, 479), 15, B
  12. xo = 50
  13. yo = 30
  14. xq! = 1.2
  15. yq! = .9
  16. FOR di = 3 TO 3 STEP -1
  17.     GOSUB 100
  18. NEXT di
  19. w! = TIMER + 1
  21.     i$ = INKEY$
  22. LOOP UNTIL (i$ > "") OR (TIMER > w!)
  23. IF i$ = CHR$(27) THEN END
  25.     ShiftPalette
  26.     w! = TIMER + .1
  27.     WHILE TIMER < w!
  28.         IF LEN(INKEY$) THEN END
  29.     WEND
  31.
  32. 100: ho = 460: sp = 0: h = ho / 4: x = 2 * h: y = 3 * h: i = 0
  33. 110: i = i + 1: x = x - h: h = h / 2: y = y + h: IF i < di THEN GOTO 110
  34. ps = i: GOSUB 600
  35. GOSUB 200: a = h: b = -h: GOSUB 800
  36. GOSUB 300: a = -h: b = -h: GOSUB 800
  37. GOSUB 400: a = -h: b = h: GOSUB 800
  38. GOSUB 500: a = h: b = h: GOSUB 800
  39. GOSUB 700
  41. 200: IF tp <= 0 THEN RETURN
  42. ps = tp - 1: GOSUB 600
  43. GOSUB 200: a = h: b = -h: GOSUB 800
  44. GOSUB 300: a = 2 * h: b = 0: GOSUB 800
  45. GOSUB 500: a = h: b = h: GOSUB 800
  46. GOSUB 200: GOSUB 700
  48. 300: IF tp <= 0 THEN RETURN
  49. ps = tp - 1: GOSUB 600
  50. GOSUB 300: a = -h: b = -h: GOSUB 800
  51. GOSUB 400: a = 0: b = -2 * h: GOSUB 800
  52. GOSUB 200: a = h: b = -h: GOSUB 800
  53. GOSUB 300: GOSUB 700
  55. 400: IF tp <= 0 THEN RETURN
  56. ps = tp - 1: GOSUB 600
  57. GOSUB 400: a = -h: b = h: GOSUB 800
  58. GOSUB 500: a = -2 * h: b = 0: GOSUB 800
  59. GOSUB 300: a = -h: b = -h: GOSUB 800
  60. GOSUB 400: GOSUB 700
  62. 500: IF tp <= 0 THEN RETURN
  63. ps = tp - 1: GOSUB 600
  64. GOSUB 500: a = h: b = h: GOSUB 800
  65. GOSUB 200: a = 0: b = 2 * h: GOSUB 800
  66. GOSUB 400: a = -h: b = h: GOSUB 800
  67. GOSUB 500: GOSUB 700
  69. 600: sp = sp + 1: st(sp) = ps: tp = ps
  71. 700: sp = sp - 1: tp = st(sp)
  73. 800:
  74. x1 = x * xq! + xo
  75. y1 = (y * yq!) + yo
  76. x2 = (x + a) * xq! + xo
  77. y2 = (y + b) * yq! + yo
  78. FOR z = 1 TO 15
  79.     z2 = (z - 8) * 3
  80.     FOR t = 0 TO 2
  81.         z3 = z2 + t
  82.         px1 = x1 + z3
  83.         py1 = y1 + z3
  84.         px2 = x2 + z3
  85.         py2 = y2 + z3
  86.         DO
  87.             IF POINT(px1, py1) <= z THEN PSET (px1, py1), z
  88.             px1 = px1 + SGN(px2 - px1)
  89.             py1 = py1 + SGN(py2 - py1)
  90.         LOOP UNTIL (px1 = px2) AND (py1 = py2)
  91.         _DELAY .0001
  92.         IF INKEY$ = CHR$(27) THEN
  93.             SCREEN 0, 0, 0, 0
  94.             END
  95.         END IF
  96.     NEXT t
  98. x = x + a: y = y + b
  100.
  101. SUB ShiftPalette
  102.     FOR c = 15 TO 1 STEP -1
  103.         OUT &H3C8, c
  104.         FOR t = 0 TO 2
  105.             rgb(c, t) = rgb(c - 1, t)
  106.             OUT &H3C9, rgb(c, t)
  107.         NEXT t
  108.     NEXT c
  109.     FOR t = 0 TO 2
  110.         IF (rgb(0, t) < 8) OR (rgb(0, t) > 60) THEN d(t) = -d(t)
  111.         rgb(0, t) = rgb(0, t) + d(t) * 2
  112.     NEXT t
  114.
Logged
It works better if you plug it in.

Offline bplus

  • Global Moderator
  • Forum Resident
  • Posts: 8053
  • b = b + ...
    • View Profile
Re: Northern Lights
« Reply #3 on: January 06, 2020, 12:22:03 pm »

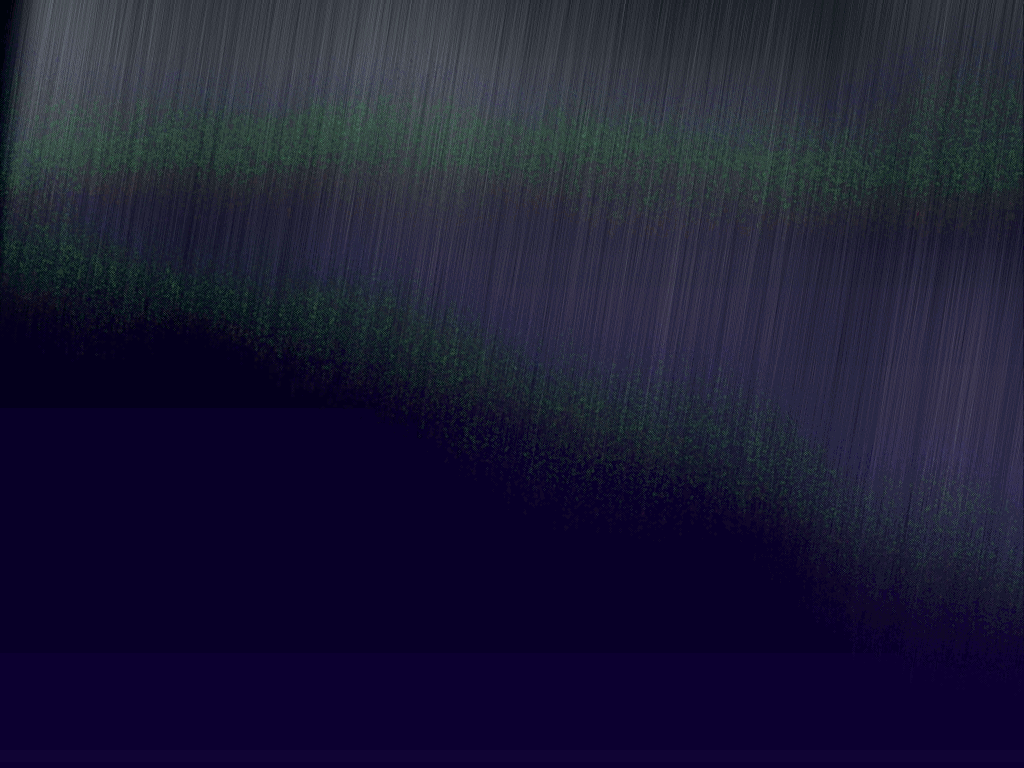

Here is mod I tried to soften lines and add white lines reaching up:
Code: QB64: [Select]
  1. _TITLE "Aurora by rfrost@mail.com B+ mod massive softening of lines and adding white lines  2020-01-06"
  3. DEFINT A-Z
  4. nw1 = 10: nw2 = 14: ar! = ATN(1) / 45: xm = _DESKTOPWIDTH: ym = _DESKTOPHEIGHT
  5. DIM r(32), g(32), b(32), sw!(1, nw2), si!(nw2), miny(1, xm), maxy(1, xm), sines(360)
  6. i& = _NEWIMAGE(xm, ym, 32)
  8. _DELAY .2 '                                           let screen stabilize
  10. FOR i = 0 TO 360 '                                    color offsets
  11.     sines(i) = 30 * SIN(_D2R(i))
  13. FOR i = 0 TO 31 '                                     colors
  14.     READ z$, r$, g$, b$
  15.     r(i) = VAL(r$): g(i) = VAL(g$): b(i) = VAL(b$)
  18.     FOR i = 1 TO nw2
  19.         sw!(0, i) = RND * 360 * ar! '                 sine wave
  20.         sw!(1, i) = sw!(0, i) '                       duplicate
  21.         si!(i) = (RND * 50 - 25) / 200 * ar! '        sine wave increment
  22.     NEXT i
  23.     FOR x = 0 TO xm - 1: FOR z = 0 TO 1
  24.             miny(z, x) = 999
  25.             maxy(z, x) = -999
  26.     NEXT z: NEXT x
  27.     pass = 0
  28.     DO: _LIMIT 20
  29.         FOR i = 0 TO _HEIGHT
  30.             LINE (0, i)-(_WIDTH, i), _RGBA32(i * 20 / _HEIGHT, 5, i * 50 / _HEIGHT + 10, 40), BF
  31.         NEXT
  32.         FOR x = 0 TO xm - 1
  33.             FOR z = 0 TO 1 '                          two waves
  34.                 t! = 0 '                              total
  35.                 IF z THEN j = nw2 ELSE j = nw1
  36.                 FOR i = 1 TO j '                      sum of 10 waves for top, 14 for bottom
  37.                     t! = t! + (20 + RND * 10) * COS(sw!(z, i))
  38.                     sw!(z, i) = sw!(z, i) + si!(i) * 5
  39.                 NEXT i
  40.                 y = 150 + t! + z * (70 + x / 3)
  41.                 IF y < miny(z, x) THEN miny(z, x) = y
  42.                 IF y > maxy(z, x) THEN maxy(z, x) = y
  43.                 dd = (maxy(z, x) - miny(z, x)) \ 8
  44.                 miny(z, x) = miny(z, x) + RND * dd
  45.                 maxy(z, x) = maxy(z, x) - RND * dd
  46.                 yd = maxy(z, x) - miny(z, x) + 1
  47.                 rr = RND * 10
  48.                 IF rr < 3 THEN
  49.                     IF rr = 0 THEN ra = (ra + RND * 20 + 1) MOD 360
  50.                     IF rr = 1 THEN ga = (ga + RND * 20 + 1) MOD 360
  51.                     IF rr = 2 THEN ba = (ba + RND * 20 + 1) MOD 360
  52.                 END IF
  53.                 FOR y = miny(z, x) TO maxy(z, x)
  54.                     i = (y - miny(z, x)) / yd * 30 + 1
  55.                     j = (j + 1) MOD ((RND * 100) + 100)
  56.                     IF j = 1 THEN k = RND * 3 + 1
  57.                     rt = r(i) * k + sines(ra)
  58.                     gt = g(i) * k + sines(ga)
  59.                     bt = b(i) * k + sines(ba)
  60.                     IF RND < .06 THEN
  61.                         CIRCLE (x, y), 1, _RGB32(1.75 * rt, 2.0 * gt, 1.25 * bt, 10):
  62.                         LINE (x, y)-STEP(50, -220 + RND * -200), &H01FFFFFF
  63.                     END IF
  64.                 NEXT y
  65.             NEXT z
  66.         NEXT x
  67.         IF pass > 4 THEN _DISPLAY
  68.         i$ = INKEY$
  69.         IF i$ = CHR$(27) THEN SYSTEM '                Esc to quit
  70.         IF i$ = " " THEN SLEEP '                      spacebar to pause
  71.         i = RND * (nw2 - 1) + 1
  72.         si!(i) = (RND * 50 - 25) / 200 * ar!
  73.         pass = pass + 1
  74.     LOOP UNTIL pass > 999
  76. '         r    g    b
  77. DATA 00," 0"," 0","25"
  78. DATA 01," 0"," 0","35"
  79. DATA 02," 0"," 0","45"
  80. DATA 03," 0"," 0","50"
  81. DATA 04," 0"," 0","55"
  82. DATA 05," 0"," 0","60"
  83. DATA 06," 0"," 0","63"
  84. DATA 07," 0","10","40"
  85. DATA 08," 0","25","30"
  86. DATA 09," 0","30","20"
  87. DATA 10," 0","35","10"
  88. DATA 11," 0","38"," 0"
  89. DATA 12," 0","40"," 0"
  90. DATA 13," 0","45"," 0"
  91. DATA 14," 0","50"," 0"
  92. DATA 15," 0","51"," 0"
  93. DATA 16," 0","52"," 0"
  94. DATA 17," 0","53"," 0"
  95. DATA 18," 0","54"," 0"
  96. DATA 19," 0","55"," 0"
  97. DATA 20," 0","56"," 0"
  98. DATA 21," 0","57"," 0"
  99. DATA 22," 0","58"," 0"
  100. DATA 23," 0","59"," 0"
  101. DATA 24," 0","60"," 0"
  102. DATA 25," 0","61"," 0"
  103. DATA 26," 0","62"," 0"
  104. DATA 27," 0","63"," 0"
  105. DATA 28,"45"," 0"," 0"
  106. DATA 29,"50"," 0"," 0"
  107. DATA 30,"55"," 0"," 0"
  108. DATA 31,"63"," 0"," 0"
  109.
  110.
  111.
Logged

Offline Pete

  • Forum Resident
  • Posts: 2361
  • Cuz I sez so, varmint!
    • View Profile
Re: Northern Lights
« Reply #4 on: January 06, 2020, 01:54:55 pm »
Sorry Mark, I couldn't get to yoour's. I tried Robert's, and now my keyboard is all sticky. Dammit Bill, yes, I mean the ribbon candy one!

Hey, nice ribbon candy and I actually did try the "softening" effect aurora. All good stuff to showcase what can be done with QB64, if you have the artistic ability to create it. Me, I'm still working on a fill function for blocks. Oh well...

Pete
Logged
Want to learn how to write code on cave walls? https://www.tapatalk.com/groups/qbasic/qbasic-f1/

Offline Qbee

  • Newbie
  • Posts: 27
    • View Profile
Re: Northern Lights
« Reply #5 on: January 06, 2020, 04:02:31 pm »
Aurora and Ribbon Candy by rfrost@mail.com and Aurora-Mod by bplus look all interesting.

To show guests, who otherwise have to imagine the beauty directly from code,  I made a very short (a few seconds, but still takes nearly 14 MB after reducing from 74 MB) GIF-Animation from the Aurora-Mod.

Aurora-bplus 2020-01-06 21-46-40-33-optimized.gif
* Aurora-bplus 2020-01-06 21-46-40-33-optimized.gif (Filesize: 13.64 MB, Dimensions: 1024x768, Views: 301)
« Last Edit: January 06, 2020, 04:03:35 pm by Qbee »
Logged

Offline Pete

  • Forum Resident
  • Posts: 2361
  • Cuz I sez so, varmint!
    • View Profile
Re: Northern Lights
« Reply #6 on: January 06, 2020, 04:25:30 pm »
Interesting. I was thinking of making a gif of Marks fireworks program I have software that can record from the screen, but I'm curious, what did you use to convert to a .gif?

Pete
Logged
Want to learn how to write code on cave walls? https://www.tapatalk.com/groups/qbasic/qbasic-f1/

Offline Qbee

  • Newbie
  • Posts: 27
    • View Profile
Re: Northern Lights
« Reply #7 on: January 06, 2020, 04:27:32 pm »
I use GIF Movie Gear (Full version).
It is a little bit old, supports Windows XP, but works fine with Windows 10.
Logged

Offline bplus

  • Global Moderator
  • Forum Resident
  • Posts: 8053
  • b = b + ...
    • View Profile
Re: Northern Lights
« Reply #8 on: January 06, 2020, 04:39:47 pm »
I really like first part of Richard Frost's ribbon candy.

It reminds me of an experiment I've been meaning to try but keep getting distracted. Stay tuned...
Logged

Offline Richard Frost

  • Seasoned Forum Regular
  • Posts: 316
  • Needle nardle noo. - Peter Sellers
    • View Profile
Re: Northern Lights
« Reply #9 on: January 06, 2020, 05:08:42 pm »
That softening Bplus did makes it way more realistic.

But it's too dim.

Pete, shoot down the Sun.
Logged
It works better if you plug it in.

Offline Pete

  • Forum Resident
  • Posts: 2361
  • Cuz I sez so, varmint!
    • View Profile
Re: Northern Lights
« Reply #10 on: January 06, 2020, 05:25:51 pm »
Yeah, soary bout that, varmint. Me aveetar gits carried away with the six-guns sometimez.

I agree, softening makes it more realistic, but brighter would be better.

Pete
Logged
Want to learn how to write code on cave walls? https://www.tapatalk.com/groups/qbasic/qbasic-f1/

Offline SierraKen

  • Forum Resident
  • Posts: 1454
    • View Profile
Re: Northern Lights
« Reply #11 on: January 06, 2020, 06:07:01 pm »
Really cool Robert!
Logged
Pages: [1]   Go Up
« previous next »
