Title: Graphics Test #2 - are you certifiable?
Post by: bplus on November 29, 2021, 08:37:35 am
Can you write code for this?
  [ This attachment cannot be displayed inline in 'Print Page' view ]
Title: Re: Graphics Test #2 - are you certifiable?
Post by: FellippeHeitor on November 29, 2021, 08:50:43 am
No.
Title: Re: Graphics Test #2 - are you certifiable?
Post by: SMcNeill on November 29, 2021, 08:53:39 am
Quote from: bplus on November 29, 2021, 08:37:35 am
Can you write code for this?

Nope.  LOL!  I'm too busy working on my Xmas project with my free time right now.  :P

Are we even having a Xmas collection/competition this year?  Nobody has posted anything about one yet.  Or have I just jumped the gun and gotten an early start while everyone else is waiting until December to actually begin?
Title: Re: Graphics Test #2 - are you certifiable?
Post by: Dav on November 29, 2021, 10:23:32 am
Not me, yet.  I'm still trying to pass #1...

- Dav
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on November 29, 2021, 10:51:29 am
Oh a Star for your Christmas Tree!
  [ This attachment cannot be displayed inline in 'Print Page' view ]
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on November 29, 2021, 11:21:55 am
Xmax Tree Star  ;-))
Title: Re: Graphics Test #2 - are you certifiable?
Post by: Petr on November 29, 2021, 11:48:05 am
Of course...
If a screenshot is enough...

:)

Title: Re: Graphics Test #2 - are you certifiable?
Post by: OldMoses on November 29, 2021, 01:24:09 pm
I'm seeing a two power advancing loop, but I must confess that trying to figure out the line control is making my brain smoke...
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on November 29, 2021, 02:26:52 pm
Quote from: OldMoses on November 29, 2021, 01:24:09 pm
I'm seeing a two power advancing loop, but I must confess that trying to figure out the line control is making my brain smoke...

That's right, structured on circles of increasing radius divided evenly by powers of 2.

It took three tries, twice I started over.
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on November 29, 2021, 03:32:00 pm
Once you get the hang of it:






There's a Christmas Tree Star!
Title: Re: Graphics Test #2 - are you certifiable?
Post by: Dimster on November 30, 2021, 04:17:35 pm
Now if you can get it to rotate with a voice over repeated saying "LOOK into my Eye", then provide an address to send money, I think you could make a fortune. Very neat work. Reminds me of Mandelbrot or Mandrake.
Title: Re: Graphics Test #2 - are you certifiable?
Post by: SMcNeill on November 30, 2021, 05:45:59 pm
I was playing around with something to recursively create a pattern like this, and the initial start of it looked promising...

  [ This attachment cannot be displayed inline in 'Print Page' view ]

Of course, my angle here is much greater than the one bplus used, but you can see where I was making two branches and dividing them out as I go along towards the edge...

My end result, however, ended up looking a ton different than bplus's:

  [ This attachment cannot be displayed inline in 'Print Page' view ]

In some ways, this reminds me of a 3d rendering of the internal structure of an apartment building or some such (rotated somewhat), like some of the 3d maps which you could zoom in and out form in some of the old games I used to play...

Now, anyone can make something PRETTY, with enough effort.   MY question for bplus is to see if he's completely certifiable.  Can he purposely reproduce a mess like this one?  LOL!

Title: Re: Graphics Test #2 - are you certifiable?
Post by: johnno56 on November 30, 2021, 06:21:51 pm
Quote from: bplus on November 29, 2021, 02:26:52 pm
That's right, structured on circles of increasing radius divided evenly by powers of 2.

Grammar check. Spoiler alert. Your reference to 'circles' (multiple), must by inference, be transferable to 'radius' as 'radii'... Moo Ha Ha...
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on November 30, 2021, 06:30:20 pm
Here are the shelves before Steve caught a snap of them falling over ;-))
  [ This attachment cannot be displayed inline in 'Print Page' view ]
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on November 30, 2021, 06:36:08 pm
Quote from: johnno56 on November 30, 2021, 06:21:51 pm
Grammar check. Spoiler alert. Your reference to 'circles' (multiple), must by inference, be transferable to 'radius' as 'radii'... Moo Ha Ha...

But I am only increasing one radius in a loop, that leaves behind a circle at each round. I am left with circles and an single big radius at the end.

@Dimster thank you! I have an idea to try now and to quote a friend, Moo Ha Ha...

Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on November 30, 2021, 07:41:37 pm
Warning! Do not run this if you are prone to Epileptic Seizures.

Code: QB64: [Select]
  1. _Title "Rotating Spokes" 'b+ 2021-11-30
  2. DefDbl A-Z
  3. Const ss = 700: ssd2 = ss / 2: pi = _Pi
  4. Screen _NewImage(ss, ss, 32)
  5. _ScreenMove 280, 40
  7.     Cls
  8.     For r = 1 To 9
  9.         n = 2 ^ r
  10.         stepper = pi * (2 / n)
  11.         oa = oa * -1
  12.         For a = 0 To _Pi(2) - .0000001 Step stepper
  13.             x1 = ssd2 + (r - 1) * 35 * Cos(a + oa): y1 = ssd2 + (r - 1) * 35 * Sin(a + oa)
  14.             x2 = ssd2 + r * 35 * Cos(a + oa): y2 = ssd2 + r * 35 * Sin(a + oa)
  15.             If r Mod 2 Then Line (x1, y1)-(x2, y2), _RGB32(0, 128 + 128 * a / (2 * pi), 0) Else Line (x1, y1)-(x2, y2), _RGB32(0, 0, 128 + 128 * a / (2 * pi))
  16.         Next
  17.     Next
  18.     oa = Abs(oa) + pi / 360
  19.     _Display
  20.     _Limit 20
  22.


No really, there is no message to send money, send money, send money...

Actually this is pretty close to what I did in OP and also I think I can make it recursive now, stay tuned...
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on December 01, 2021, 11:33:48 am
Couldn't get the recursive version working last night but this morning with fresh eyes found a bunch of typos and got slightly different results in middle with 2/3 the code, but looks better I think!

  [ This attachment cannot be displayed inline in 'Print Page' view ]

Code: QB64: [Select]
  1. _Title "Globe - recurs 2 branching" 'b+ 2021-12-01 got it working
  2. DefDbl A-Z
  3. Const ss = 700, SSD2 = ss / 2, PI = _Pi
  4. Screen _NewImage(ss, ss, 32)
  5. _ScreenMove 280, 40
  6. r2branch 1
  7.
  8. Sub r2branch (r)
  9.     If r = 9 Then Exit Sub
  10.     n = 2 ^ r
  11.     stepper = PI * (2 / n)
  12.     ao = .5 * stepper
  13.     ao2 = .25 * stepper
  14.     For a = 0 To 2 * PI - .0000001 Step stepper
  15.         x1 = SSD2 + (r - 1) * 40 * Cos(a + ao): y1 = SSD2 + (r - 1) * 40 * Sin(a + ao)
  16.         x2 = SSD2 + r * 40 * Cos(a + ao - ao2): y2 = SSD2 + r * 40 * Sin(a + ao - ao2)
  17.         Line (x1, y1)-(x2, y2)
  18.         x2 = SSD2 + r * 40 * Cos(a + ao + ao2): y2 = SSD2 + r * 40 * Sin(a + ao + ao2)
  19.         Line (x1, y1)-(x2, y2)
  20.     Next
  21.     r2branch r + 1
  23.

Before recursive effort, I saved the points in an array and used a simple formula for points in array to draw lines from point on one circle to 2 or more points on the next. Then the main problem was getting things to line up pretty.

Really now you can change out the recursive sub for a Main For Loop:
Code: QB64: [Select]
  1. _Title "Globe - elim recurs 2 branching" 'b+ 2021-12-01 got it working
  2. DefDbl A-Z
  3. Const ss = 700, SSD2 = ss / 2, PI = _Pi
  4. Screen _NewImage(ss, ss, 32)
  5. _ScreenMove 280, 40
  6. For r = 1 To 8
  7.     n = 2 ^ r
  8.     stepper = PI * (2 / n)
  9.     ao = .5 * stepper
  10.     ao2 = .25 * stepper
  11.     For a = 0 To 2 * PI - .0000001 Step stepper
  12.         x1 = SSD2 + (r - 1) * 40 * Cos(a + ao): y1 = SSD2 + (r - 1) * 40 * Sin(a + ao)
  13.         x2 = SSD2 + r * 40 * Cos(a + ao - ao2): y2 = SSD2 + r * 40 * Sin(a + ao - ao2)
  14.         Line (x1, y1)-(x2, y2)
  15.         x2 = SSD2 + r * 40 * Cos(a + ao + ao2): y2 = SSD2 + r * 40 * Sin(a + ao + ao2)
  16.         Line (x1, y1)-(x2, y2)
  17.     Next
  19.
Title: Re: Graphics Test #2 - are you certifiable?
Post by: Dimster on December 01, 2021, 12:22:53 pm
Ran "Rotating Spokes", lucky for me there was no money in my pocket. Pretty cool how it rotates in opposite directions at the same time.
Steve's reminds me of the aftermath of an earthquake. Needs a go fund me site to generate $$$$ from the effort.
Wonder if you guys could live off the proceeds? Maybe consider NFT's??????
Title: Re: Graphics Test #2 - are you certifiable?
Post by: johannhowitzer on December 01, 2021, 06:48:09 pm
Code: QB64: [Select]
  3.
  4. type node_structure
  5.    angle  as single
  6.    ring   as byte    ' Which ring to draw on
  7.    parent as integer ' Parent node
  9. dim shared node(65535) as node_structure
  10. dim shared node_count as integer
  11.
  12. input "Number of rings:    ", rings
  13. input "Number of branches: ", branches
  14.
  15. for ring = 1 to rings
  16.    new_branches = branches ^ ring
  17.
  18.    for n = 1 to new_branches
  19.       node_count = node_count + 1
  20.       node(node_count).angle  = (8 * atn(1)) * (n / new_branches)
  21.       node(node_count).ring   = ring
  22.       node(node_count).parent = first_parent + int((n - 1) / branches)
  23.    next n
  24.
  25.    first_parent = first_parent + int(new_branches / branches)
  26. next ring
  27.
  29. for n = 1 to node_count
  30.    p = node(n).parent
  31.    v1 = 240 * (node(n).ring / rings)
  32.    v2 = 240 * (node(p).ring / rings)
  33.    line(320 + (v1 * cos(node(n).angle)), 240 + (v1 * sin(node(n).angle)))-_
  34.        (320 + (v2 * cos(node(p).angle)), 240 + (v2 * sin(node(p).angle))), 15
  36.

Without looking at others' code, while I was in some downtime at work I glanced at the OP, and threw this together in about ten minutes.  I see I took a different approach; while others seem to be going straight to the drawing step, I started by building a network of references, and letting the user input the number of rings, as well as the number of branches from each node.

My result is a little different, because the new ring of nodes are grouping up to the previous ring via an int() modifier on the stack index.  But I think this looks even cooler, and since all the nodes are saved, I can do more things to them if I want.  Fun challenge!


Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on December 01, 2021, 10:20:04 pm
Oh very nice challenge @johannhowitzer

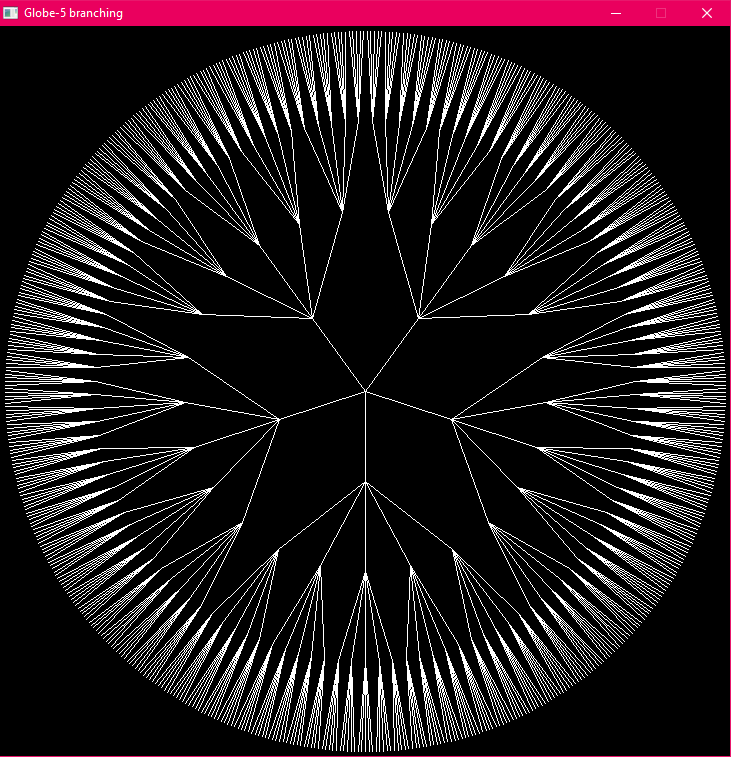

Here I calculate the number of rings that will have enough space to keep each spoke separate from the others around the edge. Here is 2 to 9 branching, press any when the screen is sleeping ie "ZZZ..."

Code: QB64: [Select]
  1. _Title "Globe - N(2 to 9) Branching" 'b+ 2021-12-01
  2. DefDbl A-Z
  3. Const ss = 730, pi32 = _Pi(3 / 2)
  4. Screen _NewImage(ss, ss, 32)
  5. _ScreenMove 250, 10
  6. Dim As Integer power, radius, n, i, branch, rings
  7.
  8. For branch = 2 To 9
  9.     Cls
  10.
  11.     rings = 1 ' according to number branches decide number of rings that will fit
  12.     While ss / 2 * _Pi(2) / branch ^ rings > 3
  13.         rings = rings + 1
  14.     Wend
  15.     rings = Int(rings) - 1
  16.     deltaRadius = Int((ss / 2) / rings) ' divide max radius by rings
  17.
  18.     'save points of ring in these 2D arrays d1 = ring d2 = point number on ring
  19.     ReDim xp(0 To rings, 0 To branch ^ (rings + 1)), yp(0 To rings, 0 To branch ^ (rings + 1))
  20.
  21.     For power = 0 To rings ' load points from rings
  22.         radius = power * deltaRadius
  23.         n = branch ^ power
  24.         stepper = _Pi(2 / n)
  25.         ao = .5 * stepper
  26.         i = 0
  27.         For a = 0 To _Pi(2) - .000001 Step stepper
  28.             xp(power, i) = ss / 2 + radius * Cos(a + ao + pi32)
  29.             yp(power, i) = ss / 2 + radius * Sin(a + ao + pi32)
  30.             i = i + 1
  31.         Next
  32.     Next
  33.
  34.     power = 0 ' OK draw the lines
  35.     For power = 0 To rings - 1
  36.         accum = 0
  37.         For i = 0 To branch ^ power - 1
  38.             For k = 0 To branch - 1
  39.                 Line (xp(power, i), yp(power, i))-(xp(power + 1, accum + k), yp(power + 1, accum + k))
  40.             Next
  41.             accum = accum + branch
  42.         Next
  43.     Next
  44.     Print "Branches:"; branch; "  ZZZ... "
  45.     Sleep
  47.
  48.

Alas, it took me more than 10 minutes to whip up ;-))
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on December 03, 2021, 07:28:28 am

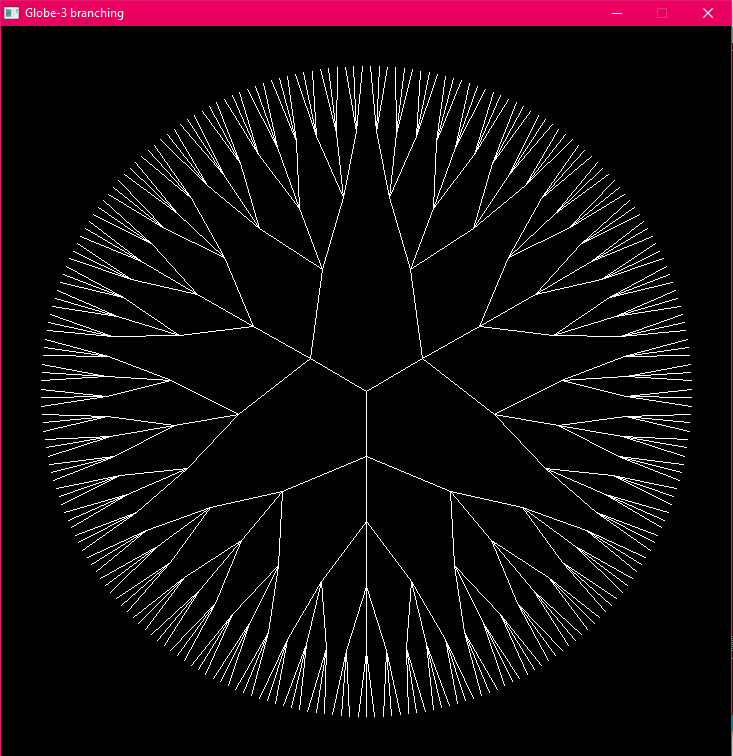

Recursive 3 branching from tsh73 at JB, translated and adopted to my style of display:
Code: QB64: [Select]
  1. _Title "3 branching recurs by tsh73" 'b+ trans from JB 2021-12-02
  2. Const ss = 600, cx = ss / 2, cy = cx, pi = _Pi
  3. Screen _NewImage(ss, ss, 32)
  4. _ScreenMove 300, 60
  5. drawBranches cx, cy, 0, 0, 45, 0
  6. Sub drawBranches (x, y, a, totLen, legth, level)
  7.     If level > 6 Then Exit Sub
  8.     x1 = cx + Cos(a) * totLen
  9.     y1 = cy + Sin(a) * totLen
  10.     Line (x, y)-(x1, y1)
  11.     N = 3 ^ (level + 1)
  12.     da = 2 * pi / N
  13.     drawBranches x1, y1, (a - da), (totLen + legth), legth, level + 1
  14.     drawBranches x1, y1, a, (totLen + legth), legth, level + 1
  15.     drawBranches x1, y1, (a + da), (totLen + legth), legth, level + 1
  17.
  18.



Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on December 03, 2021, 07:49:29 am
Actually this looks more like his original, pretty cool too!:
Code: QB64: [Select]
  1. _Title "3 branching recurs by tsh73 more like original" 'b+ trans from JB 2021-12-03
  2. Const ss = 600, cx = ss / 2, cy = cx, pi = _Pi
  3. Screen _NewImage(ss, ss, 32)
  4. _ScreenMove 300, 60
  5. Color &HFF000011, &HFFBBBBFF
  7. drawBranches cx, cy, 0, 0, 256, 0
  9.
  10. Sub drawBranches (x, y, a, totLen, leg, level)
  11.     '                   This had me stuck for awhile!!!
  12.     legth = leg ' <<<< change name of variable for recursive sub in QB64 before passing changed value in next call
  13.     If legth < 1 Then Exit Sub
  14.     x1 = cx + Cos(a) * totLen
  15.     y1 = cy + Sin(a) * totLen
  16.     Circle (cx, cy), totLen
  17.     Line (x, y)-(x1, y1)
  18.     N = 3 ^ (level + 1)
  19.     da = 2 * pi / N
  20.     legth = legth / 2  ' >> changed value requires the name change in QB64 (not in JB that passes by value not reference)
  21.     drawBranches x1, y1, (a - da), (totLen + legth), legth, level + 1
  22.     drawBranches x1, y1, a, (totLen + legth), legth, level + 1
  23.     drawBranches x1, y1, (a + da), (totLen + legth), legth, level + 1
  25.


Title: Re: Graphics Test #2 - are you certifiable?
Post by: _vince on December 14, 2021, 06:32:32 pm
have a pretty flower, bplus

Code: QB64: [Select]
  1. defdbl a-z
  2. pi = 4*atn(1)
  3. screen _newimage(640, 640, 32)
  4. _title "Plumeria"
  5. for t=0 to 2*_pi step 0.001
  6.         x = 190*cos(t) + 200*cos(t*6)
  7.         y = 190*sin(t) + 200*sin(t*6)
  8.         d = sqr(x*x + y*y)
  9.         if d < 250 then
  10.                 c = 255 - d
  11.                 if d > od or d > 110 then
  12.                         pset (320 + x, 320 + y),_rgb(255,200 - 0.8*c,225 - 0.8*c)
  13.                 end if
  14.         end if
  15.         od = d
  19.
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on December 14, 2021, 07:54:32 pm
Back to you @_vince :)

Code: QB64: [Select]
  1. _Title "Plumeria - colorized and motorized by b+"
  2. Screen _NewImage(700, 700, 32)
  3. _ScreenMove 300, 40
  5.     For t = 0 To 2 * _Pi Step 0.001
  6.         x = 190 * Cos(t + ao) + 200 * Cos(t * 6 + ao)
  7.         y = 190 * Sin(t + ao) + 200 * Sin(t * 6 + ao)
  8.         PSet (350 + x, 350 + y), _RGB(255 * y / 390, 255 * t / 5, ao * 255)
  9.     Next
  10.     ao = ao + .001
  11.     If ao > 2 * _Pi(1 / 5) Then ao = 0
  13.
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on December 18, 2021, 11:27:08 pm
More generalized variation with interesting pattern at mult > 6

Code: QB64: [Select]
  1. _Title "Press spacebar for new mult"
  2. Screen _NewImage(700, 700, 32)
  3. _ScreenMove 300, 40
  4. For mult = 2 To 16
  5.     Cls
  6.     Print mult
  7.     Do
  8.         For t = 0 To 2 * _Pi Step 0.001
  9.             x = 200 * Cos(t + ao) + 200 * Cos(t * mult + ao)
  10.             y = 200 * Sin(t + ao) + 200 * Sin(t * mult + ao)
  11.             PSet (350 + x, 350 + y), _RGB(255 * y / 390, 0, 255 * t / _Pi(2))
  12.         Next
  13.         ao = ao + .001
  14.         If ao > _Pi(2 / (mult - 1)) Then ao = 0
  15.         If InKey$ = " " Then Exit Do
  16.     Loop
  18.
  19.
Title: Re: Graphics Test #2 - are you certifiable?
Post by: _vince on December 19, 2021, 04:53:07 am
nice, bplus

How did you generate the cubes or steve's shelves?
Title: Re: Graphics Test #2 - are you certifiable?
Post by: bplus on December 19, 2021, 08:31:26 am
Quote from: _vince on December 19, 2021, 04:53:07 am
nice, bplus

How did you generate the cubes or steve's shelves?

Hi _vince

I was doing experiments in "Real" 3d rendering here:
https://www.qb64.org/forum/index.php?topic=1904.15
Text Only | Text with Attachments
