'* --- QB64 Simon ---
'* ------------------
'*
'* By Terry Ritchie
'*
'* Written from March 22nd to March 28th, 2015
'* Version 1.0
'*
'--------------------------------
'- VARIABLE DECLARATION SECTION -
'--------------------------------
CONST FALSE = 0 ' boolean: false indicator
CONST TRUE = NOT FALSE ' boolean: true indicator
CONST MOUSE% = 200 ' call PADPRESS with mouse button
DIM Pad&(3, 1) ' color pads: 0,x=BLUE, 1,x=RED, 2,x=GREEN, 3,x=YELLOW
DIM PadXY%(3, 1) ' x,y locations of color pads
DIM Tone&(4) ' game sounds: 0=BLUE, 1=RED, 2=GREEN, 3=YELLOW, 4=LOSE
DIM Simon& ' simon graphics image
DIM SimonHelp& ' simon help screen
DIM Keys&(3, 1) ' keyboard key images 0=Q, 1=W, 2=S, 3=A
DIM Bslider& ' blue slider switch image
DIM Rslider& ' red slider switch image
DIM OnOff& ' on/off slider switch
DIM KeysXY%(3, 1) ' location of keyboard key images on play screen
DIM GameOver% ' boolean: true when game has ended
DIM Game% ' the position the blue slider switch is in (0-2)
DIM Skill% ' the position the red slider switch is in (0-3)
DIM GameDir% ' the direction blue slider switch will move (1, -1)
DIM SkillDir% ' the direction red slider switch will move (1, -1)
DIM Longest$ ' the longest tune correctly played by a player
DIM Last$ ' the last tune played by the player
DIM Count% ' generic counter
DIM KeyPress$ ' any keys pressed by the player
DIM Pcolor~&(3) ' color pad base colors: 0=BLUE, 1=RED, 2=GREEN, 3=YELLOW
'----------------
'- MAIN PROGRAM -
'----------------
INITIALIZE ' prepare graphics, sounds and variables

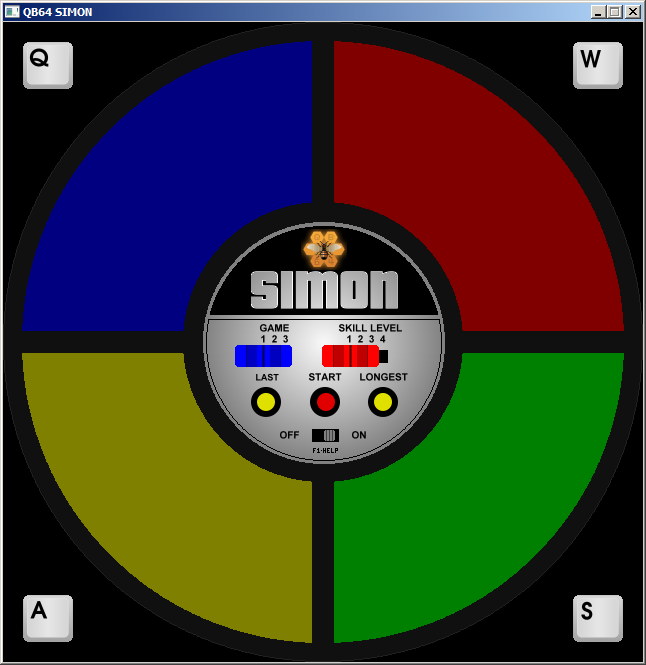

SCREEN _NEWIMAGE(640, 640, 32) ' create game screen
_TITLE "QB64 SIMON" ' give game screen a title
_SCREENMOVE _MIDDLE ' move game screen to middle of desktop
_DELAY .5 ' light delay to move to middle of screen
CLS ' remove black transparency
DO ' BEGIN MAIN GAME LOOP
GameOver% = FALSE ' reset game over flag
PRESSPAD 0, 0 ' reset game board
_DISPLAY
DO ' BEGIN PLAY GAME LOOP
_LIMIT 120 ' limit to 120 loops per second
WHILE _MOUSEINPUT: WEND ' get to last mouse event
IF _MOUSEBUTTON(1) THEN ' did player click left mouse button?
IF POINTER%(232 + Game% * 10, 323, 289 + Game% * 10, 345) THEN ' test blue slider area?
IF Game% = 0 OR Game% = 2 THEN ' yes, is blue slider at its limit?
GameDir% = -GameDir% ' yes, reverse blue slider direction
END IF
Game% = Game% + GameDir% ' change game level
PRESSPAD 0, .125 ' display change on screen
WAIT4RELEASE
ELSEIF POINTER%(319 + Skill% * 10, 323, 375 + Skill% * 10, 345) THEN ' test red slider area?
IF Skill% = 0 OR Skill% = 3 THEN ' yes, is red slider at its limit?
SkillDir% = -SkillDir% ' yes, reverse red slider direction
END IF
Skill% = Skill% + SkillDir% ' change skill level
PRESSPAD 1, .125 ' display change on screen
WAIT4RELEASE
ELSEIF POINTER%(254, 371, 271, 388) THEN ' test last button area?
WAIT4RELEASE
FOR Count% = 1 TO LEN(Last$) ' cycle through last tune string
PRESSPAD VAL(MID$(Last$, Count%, 1)), .5 ' play each individual tone
_DELAY .125 ' pause for 1/8 second
NEXT Count%
ELSEIF POINTER%(371, 371, 388, 388) THEN ' test longest button area?
Count% = 0 ' yes, reset 1/120 counter
DO ' BEGIN MOUSE RELEASE LOOP
_LIMIT 120 ' don't hog CPU while looping
WHILE _MOUSEINPUT: WEND ' get to last mouse event
Count% = Count% + 1 ' increment 1/120 second counter
IF Count% > 360 THEN ' have 3 seconds elapsed?
FOR Count% = 0 TO 3 ' yes, cycle through all four color pads
PRESSPAD Count%, .125 ' light pad and play tone quickly
NEXT Count%
Longest$ = "" ' reset longest tune string
SIMONFILE 2 ' delete simon.sav file
END IF
LOOP UNTIL NOT _MOUSEBUTTON(1) ' END MOUSE RELEASE LOOP when left button released
FOR Count% = 1 TO LEN(Longest$) ' cycle through longest tune string
PRESSPAD VAL(MID$(Longest$, Count%, 1)), .5 ' play each individual tone
_DELAY .125 ' pause 1/8 second
NEXT Count%
ELSEIF POINTER%(314, 371, 331, 388) THEN ' test start button area?
_DELAY .5 ' 1/2 second delay before game start
PLAYGAME ' play game
ELSEIF POINTER%(321, 408, 332, 419) THEN ' test power button slider area?
ENDGAME ' yes, end the game
END IF
END IF
KeyPress$ = INKEY$ ' get any key player may have pressed
IF KeyPress$ = CHR$(0) + CHR$(59) THEN ' did player press the F1 key?
DISPLAYHELP ' yes, display help screen to player
END IF
LOOP UNTIL GameOver% ' END PLAY GAME LOOP
LOOP ' MAIN GAME LOOP end
'--------------------
'- END MAIN PROGRAM -
'--------------------
'---------------------------
'- SUBROUTINES & FUNCTIONS -
'---------------------------
'----------------------------------------------------------------------------------------------------------------------
' DISPLAYHELP
SUB DISPLAYHELP ()
'---------------------------------------
'- Display the help screen to the player
'---------------------------------------
SHARED SimonHelp& ' simon help screen
_PUTIMAGE (0, 0), SimonHelp& ' display help screen
_DISPLAY ' update screen with change
DO ' BEGIN KEY/MOUSE LOOP
_LIMIT 120 ' don't hog the CPU
WHILE _MOUSEINPUT: WEND ' get latest mouse events
LOOP UNTIL INKEY$ <> "" OR _MOUSEBUTTON(1) ' END KEY/MOUSE LOOP when left button clicked or key pressed
PRESSPAD 0, 0 ' restore game screen
END SUB
'----------------------------------------------------------------------------------------------------------------------
' WAIT4RELEASE
SUB WAIT4RELEASE ()
'--------------------------------------------
'- Waits for left mouse button to be released
'--------------------------------------------
DO ' BEGIN MOUSE RELEASE LOOP
_LIMIT 120 ' don't hog the CPU
WHILE _MOUSEINPUT: WEND ' get to last mouse event
LOOP UNTIL NOT _MOUSEBUTTON(1) ' END MOUSE RELEASE LOOP when left button released
END SUB
'----------------------------------------------------------------------------------------------------------------------
' SIMONFILE
SUB SIMONFILE (Task%)
'------------------------------------------
'- Loads, updates, or deletes the save file
'-
'- Task%: 0 - load file
'- 1 - update file
'- 2 - delete file
'------------------------------------------
SHARED Longest$ ' the longest tune correctly played by a player
SELECT CASE Task% ' load, update, or delete?
CASE 0 ' load file
IF _FILEEXISTS("simon.sav") THEN ' does the save file exist?
OPEN "simon.sav" FOR INPUT AS #1 ' yes, open the file for reading
LINE INPUT #1, Longest$ ' get the longest tune ever played
CLOSE #1 ' close the file
END IF
CASE 1 ' update file
OPEN "simon.sav" FOR OUTPUT AS #1 ' open the file for output
PRINT #1, Longest$ ' write the longest tune ever played
CLOSE #1 ' close the file
CASE 2 ' delete file
IF _FILEEXISTS("simon.sav") THEN ' does the save file exist?
KILL "simon.sav" ' yes, delete it
END IF
END SELECT
END SUB
'----------------------------------------------------------------------------------------------------------------------
' POINTER%
FUNCTION POINTER% (x1%, y1%, x2%, y2%)
'------------------------------------------------------------------------------
'- Returns TRUE if the mouse pointer falls within x1%,y1% - x2%,y2% coordinates
'-
'- x1%: upper left hand corner x coordinate of box area
'- y1%: upper left hand corner y coordinate of box area
'- x2%: lower right hand corner x coordinate of box area
'- y2%: lower right hand corner y coordinate of box area
'------------------------------------------------------------------------------
DIM mx% ' current mouse pointer x coordinate
DIM my% ' current mouse pointer y coordinate
POINTER% = FALSE ' assume pointer does not fall within coordinates
WHILE _MOUSEINPUT: WEND ' get latest mouse event
mx% = _MOUSEX ' get current mouse pointer x coordinate
my% = _MOUSEY ' get current mouse pointer y coordinate
IF mx% >= x1% THEN ' could pointer be within x coordinates?
IF mx% <= x2% THEN ' yes, is pointer within x coordinates?
IF my% >= y1% THEN ' yes, could pointer be within y coordinates?
IF my% <= y2% THEN ' yes, is pointer within y coordinates?
POINTER% = TRUE ' yes, report back that pointer falls within coordinates
END IF
END IF
END IF
END IF
END FUNCTION
'----------------------------------------------------------------------------------------------------------------------
' PLAYGAME
SUB PLAYGAME ()
'-----------------------
'- Plays a game of simon
'-----------------------
SHARED GameOver% ' boolean: true when game has ended
SHARED Game% ' the position the blue slider switch is in (0-2)
SHARED Skill% ' the position the red slider switch is in (0-3)
SHARED Longest$ ' the longest tune correctly played by a player
SHARED Last$ ' the last tune played by the player
DIM Tune$ ' string of random tunes generated during game play
DIM KeyPress& ' contains value of any key pressed
DIM PlaySpeed! ' speed that simon plays notes
DIM Count% ' generic counter
DIM Notes% ' player note counter
DIM PadPress% ' value of colored pad pressed by player
DIM Plongest$ ' current player's longest tune
DIM Win% ' number of correct tones to win
'-------------
'- MAIN CODE -
'-------------
PRESSPAD 0, 0 ' reset game screen
PlaySpeed! = 1 ' reset game speed
Win% = 12 + Skill% * 6 ' calculate number of tones to win
Tune$ = "" ' reset random tune string
DO ' BEGIN PLAY GAME LOOP
FOR Count% = 1 TO Game% + 1 ' number of notes to add
Tune$ = Tune$ + LTRIM$(RTRIM$(STR$(INT(RND(1) * 4)))) ' add a random tone
IF LEN(Tune$) MOD 3 = 0 THEN ' divisible evenly by 3?
PlaySpeed! = PlaySpeed! - .125 ' yes, increase speed of play
IF PlaySpeed! < .125 THEN PlaySpeed! = .125 ' keep play speed at certain minimum
END IF
NEXT Count%
FOR Count% = 1 TO LEN(Tune$) ' cycle through the tones
PRESSPAD VAL(MID$(Tune$, Count%, 1)), PlaySpeed! ' play the tone
_DELAY PlaySpeed! / 4 ' pause between tones
NEXT Count%
Notes% = 0 ' reset player note count
DO ' BEGIN PLAY ROUND LOOP
DO ' BEGIN BUFFER CLEAR LOOP
_LIMIT 120 ' don't hog CPU
KeyPress& = _KEYHIT ' get keypress from keyboard buffer
LOOP WHILE KeyPress& ' END BUFFER CLEAR LOOP when buffer clear
Notes% = Notes% + 1 ' increment player note count
PadPress% = PLAYERINPUT% ' get player's next color pad press
IF PadPress% <> VAL(MID$(Tune$, Notes%, 1)) THEN ' did the player press the right color pad?
GameOver% = TRUE ' no, set game over flag
PRESSPAD 4, 2 ' play loser sound and light up simon
END IF
LOOP UNTIL Notes% = LEN(Tune$) OR GameOver% ' END PLAY ROUND LOOP when player success or game over
IF NOT GameOver% THEN Plongest$ = Tune$ ' remember last attempt as player's longest
IF Notes% = Win% THEN ' did player win?
GameOver% = TRUE ' yes, set game over
FOR Win% = 1 TO 6 ' cycle 6 times
FOR Count% = 0 TO 3 ' cycle through all color pads
PRESSPAD Count%, .125 ' press color pad
NEXT Count%
NEXT Win%
END IF
_DELAY PlaySpeed! * 2 ' slight delay between rounds
LOOP UNTIL GameOver% ' END PLAY GAME LOOP when game over
Last$ = Tune$ ' remember the entire last tune played
IF LEN(Plongest$) > LEN(Longest$) THEN ' did player set a new longest record?
Longest$ = Plongest$ ' yes, remember the new longest tune
SIMONFILE 1 ' update simon.sav with new longest tune
END IF
END SUB
'----------------------------------------------------------------------------------------------------------------------
' PLAYERINPUT%
FUNCTION PLAYERINPUT% ()
' -----------------------------------------------------------------------
' Waits for player input then returns the color pad pressed by the player
' -----------------------------------------------------------------------
SHARED Pcolor~&() ' color pad base colors: 0=BLUE, 1=RED, 2=GREEN, 3=YELLOW
DIM PadPress% ' the color pad that was pressed
DIM KeyPress& ' a key the player has pressed
DIM mx% ' current mouse pointer x coordinate
DIM my% ' current mouse pointer y coordinate
DIM Clr~& ' color of pixel clicked on
PadPress% = -1 ' reset pad press indicator
DO ' BEGIN INPUT LOOP
_LIMIT 120 ' don't hog the CPU
KeyPress& = _KEYHIT ' get the latest key status
WHILE _MOUSEINPUT: WEND ' get the latest mouse status
IF KeyPress& THEN ' was a key pressed?
SELECT CASE KeyPress& ' yes, which one?
CASE 81, 113 ' Q or q key
PRESSPAD 0, KeyPress& ' press blue pad on simon
PadPress% = 0 ' remember blue pad pressed
CASE 87, 119 ' W or w key
PRESSPAD 1, KeyPress& ' press red pad on simon
PadPress% = 1 ' remember red pad pressed
CASE 83, 115 ' S or s key
PRESSPAD 2, KeyPress& ' press green pad on simon
PadPress% = 2 ' remember green pad pressed
CASE 65, 97 ' A or a key
PRESSPAD 3, KeyPress& ' press yellow pad on simon
PadPress% = 3 ' remember yellow pad pressed
END SELECT
ELSEIF _MOUSEBUTTON(1) THEN ' no, was the left mouse button clicked?
mx% = _MOUSEX ' yes, get x location of mouse pointer
my% = _MOUSEY ' get y location of mouse pointer
Clr~& = POINT(mx%, my%)
IF mx% < 320 AND my% < 320 AND Clr~& = Pcolor~&(0) THEN ' pointer in blue area?
PRESSPAD 0, MOUSE% ' yes, press blue pad on simon
PadPress% = 0 ' remember blue pad pressed
ELSEIF mx% > 319 AND my% < 320 AND Clr~& = Pcolor~&(1) THEN ' no, pointer in red area?
PRESSPAD 1, MOUSE% ' yes, press red pad on simon
PadPress% = 1 ' remember red pad pressed
ELSEIF mx% > 319 AND my% > 319 AND Clr~& = Pcolor~&(2) THEN ' no, pointer in green area?
PRESSPAD 2, MOUSE% ' yes, press green pad on simon
PadPress% = 2 ' remember green pad pressed
ELSEIF mx% < 320 AND my% > 319 AND Clr~& = Pcolor~&(3) THEN ' no, pointer in yellow area?
PRESSPAD 3, MOUSE% ' yes, press yellow pad on simon
PadPress% = 3 ' remember yellow pad pressed
END IF
END IF
LOOP UNTIL PadPress% <> -1 ' END INPUT LOOP when simon pad pressed
PLAYERINPUT% = PadPress% ' return the pad that was pressed
END FUNCTION
'----------------------------------------------------------------------------------------------------------------------
' PRESSPAD
SUB PRESSPAD (PadNum%, Behavior!)
' -----------------------------------------------------------------------------------------
' Simulates pressing a colored pad by lighting it up and playing its corresponding sound
'
' PadNum% - The colored pad to press: 0=BLUE, 1=RED, 2=GREEN, 3=YELLOW, 4=ALL
' Behavior! - If value is less than 5 then sound plays for this duration
' - If value is less than 120 then sound plays until scancode of key is released
' - if value > 120 then sound plays until left mouse button is released
' - if value is zero then game board is redrawn only
' -----------------------------------------------------------------------------------------
SHARED Tone&() ' game sounds
SHARED Pad&() ' color pads: 0,x=BLUE, 1,x=RED, 2,x=GREEN, 3,x=YELLOW
SHARED PadXY%() ' x,y locations of color pads
SHARED Simon& ' simon graphics image
SHARED Keys&() ' keyboard key images 0=Q, 1=W, 2=S, 3=A
SHARED KeysXY%() ' location of keyboard key images
SHARED Bslider& ' blue slider switch image
SHARED Rslider& ' red slider switch image
SHARED OnOff& ' on/off slider switch
SHARED Game% ' the position the blue slider switch is in (0-2)
SHARED Skill% ' the position the red slider switch is in (0-3)
DIM KeyPress& ' key press value
DIM KeyStatus% ' 0=no key animation, 1=key animation
'-------------
'- MAIN CODE -
'-------------
KeyStatus% = 1 ' assume key animation
IF Behavior! THEN ' just a board redraw?
IF Behavior! = MOUSE% OR Behavior! < 5 THEN ' turn key animation off?
KeyStatus% = 0 ' yes, turn animation off
END IF
IF PadNum% <> 4 THEN ' single color pad selected?
_PUTIMAGE (PadXY%(PadNum%, 0), PadXY%(PadNum%, 1)), Pad&(PadNum%, 1) ' yes, light color pad
_PUTIMAGE (KeysXY%(PadNum%, 0), KeysXY%(PadNum%, 1)), Keys&(PadNum%, KeyStatus%) ' animate key if needed
ELSE ' no, all color pads selected
FOR Count% = 0 TO 3 ' cycle through all color pads
_PUTIMAGE (PadXY%(Count%, 0), PadXY%(Count%, 1)), Pad&(Count%, 1) ' light color pad
_PUTIMAGE (KeysXY%(Count%, 0), KeysXY%(Count%, 1)), Keys&(Count%, 0) ' set keys to raised position
NEXT Count%
END IF
_PUTIMAGE (200, 200), Simon& ' place round simon image
_PUTIMAGE (232 + Game% * 10, 323), Bslider& ' place blue slider
_PUTIMAGE (319 + Skill% * 10, 323), Rslider& ' place red slider
_PUTIMAGE (321, 408), OnOff& ' place power button slider
_DISPLAY ' update screen with changes
_SNDLOOP Tone&(PadNum%) ' sound into continuous loop
SELECT CASE Behavior! ' how was SUB called?
CASE IS < 5 ' computer pressing color pad
_DELAY Behavior! ' use value as a delay
CASE IS < 120 ' player is pressing a key
_DELAY .125 ' pause for 1/8 second
DO ' BEGIN KEYBOARD SCAN LOOP
_LIMIT 120 ' don't hog CPU
KeyPress% = _KEYHIT ' get value of key pressed
LOOP UNTIL KeyPress% = -Behavior! ' END LOOP when key released
CASE ELSE ' player using mouse button
_DELAY .125 ' pause for 1/8 second
WAIT4RELEASE ' wait left button released
END SELECT
_SNDSTOP Tone&(PadNum%) ' stop the sound
END IF
FOR Count% = 0 TO 3 ' cycle through all color pads
_PUTIMAGE (PadXY%(Count%, 0), PadXY%(Count%, 1)), Pad&(Count%, 0) ' unlight color pad
_PUTIMAGE (KeysXY%(Count%, 0), KeysXY%(Count%, 1)), Keys&(Count%, 0) ' set keys to raised position
NEXT Count%
_PUTIMAGE (200, 200), Simon& ' place round simon image
_PUTIMAGE (232 + Game% * 10, 323), Bslider& ' place blue slider
_PUTIMAGE (319 + Skill% * 10, 323), Rslider& ' place red slider
_PUTIMAGE (321, 408), OnOff& ' place power button slider
_DISPLAY ' update screen with changes
END SUB
'----------------------------------------------------------------------------------------------------------------------
' INITIALIZE
SUB INITIALIZE ()
' --------------------------------------------------------------------------------------------
' Initialize all variables, create color pad images, load sounds and load spritesheet graphics
' --------------------------------------------------------------------------------------------
SHARED Pad&() ' color pads: 0,x=BLUE, 1,x=RED, 2,x=GREEN, 3,x=YELLOW
SHARED PadXY%() ' x,y locations of color pads
SHARED Tone&() ' game sounds
SHARED Simon& ' simon graphics image
SHARED SimonHelp& ' simon help screen
SHARED Keys&() ' keyboard key images 0=Q, 1=W, 2=S, 3=A
SHARED Bslider& ' blue slider switch image
SHARED Rslider& ' red slider switch image
SHARED OnOff& ' on/off slider switch
SHARED KeysXY%() ' location of keyboard key images
SHARED Game% ' the position the blue slider switch is in (0-2)
SHARED Skill% ' the position the red slider switch is in (0-3)
SHARED GameDir% ' the direction blue slider switch will move (1, -1)
SHARED SkillDir% ' the direction red slider switch will move (1, -1)
SHARED Pcolor~&() ' color pad base colors: 0=BLUE, 1=RED, 2=GREEN, 3=YELLOW
DIM Sheet& ' sprite sheet containing game graphics
DIM Mask& ' color pad mask image
DIM Count% ' increasing color brightness counter
DIM Pcount% ' pad counter
DIM x% ' x location of pad circles
DIM y% ' y location of pad circles
DIM Clr~& ' temporary color pad color holder
'-------------
'- MAIN CODE -
'-------------
RANDOMIZE TIMER ' seed random number generator
Tone&(0) = _SNDOPEN("SimonB209.ogg", "VOL,SYNC") ' load blue sound 209 Hz
Tone&(1) = _SNDOPEN("SimonR310.ogg", "VOL,SYNC") ' load red sound 310 Hz
Tone&(2) = _SNDOPEN("SimonG415.ogg", "VOL,SYNC") ' load green sound 415 Hz
Tone&(3) = _SNDOPEN("SimonY252.ogg", "VOL,SYNC") ' load yellow sound 252 Hz
Tone&(4) = _SNDOPEN("SimonL042.ogg", "VOL,SYNC") ' load lose sound 42 Hz
Simon& = _NEWIMAGE(242, 242, 32) ' simon image holder
Bslider& = _NEWIMAGE(57, 22, 32) ' blue slider image holder
Rslider& = _NEWIMAGE(57, 22, 32) ' red slider image holder
OnOff& = _NEWIMAGE(11, 11, 32) ' power button slider image holder
Sheet& = _LOADIMAGE("SimonGFX.png", 32) ' load simon sprite sheet of images
SimonHelp& = _LOADIMAGE("SimonHELP.png", 32) ' load simon help screen
_PUTIMAGE (0, 0), Sheet&, Simon&, (0, 94)-(241, 335) ' extract simon from spritesheet
_PUTIMAGE (0, 0), Sheet&, Bslider&, (200, 0)-(256, 21) ' extract blue slider from spritesheet
_PUTIMAGE (0, 0), Sheet&, Rslider&, (200, 22)-(256, 43) ' extract red slider from spritesheet
_PUTIMAGE (0, 0), Sheet&, OnOff&, (200, 44)-(210, 54) ' extract power button slider from spritesheet
FOR Count% = 0 TO 3 ' cycle through 4 color pads
Pad&(Count%, 0) = _NEWIMAGE(320, 320, 32) ' create color pad off image
Pad&(Count%, 1) = _NEWIMAGE(320, 320, 32) ' create color pad on image
Keys&(Count%, 0) = _NEWIMAGE(50, 47, 32) ' create q,w,s,a raised key image holders
Keys&(Count%, 1) = _NEWIMAGE(50, 47, 32) ' create q,w,s,a pressed key image holders
_PUTIMAGE (0, 0), Sheet&, Keys&(Count%, 0), (Count% * 50, 0)-(Count% * 50 + 49, 46) ' extract key raised images
_PUTIMAGE (0, 0), Sheet&, Keys&(Count%, 1), (Count% * 50, 47)-(Count% * 50 + 49, 93) ' extract key pressed images
NEXT Count%
PadXY%(0, 0) = 0 ' color pad locations
PadXY%(0, 1) = 0
PadXY%(1, 0) = 320
PadXY%(1, 1) = 0
PadXY%(2, 0) = 320
PadXY%(2, 1) = 320
PadXY%(3, 0) = 0
PadXY%(3, 1) = 320
KeysXY%(0, 0) = 20 ' keyboard key image locations
KeysXY%(0, 1) = 20
KeysXY%(1, 0) = 570
KeysXY%(1, 1) = 20
KeysXY%(2, 0) = 570
KeysXY%(2, 1) = 573
KeysXY%(3, 0) = 20
KeysXY%(3, 1) = 573
Pcolor~&(0) = _RGB32(0, 0, 128) ' blue color of pad in off condition
Pcolor~&(1) = _RGB32(128, 0, 0) ' red color of pad in off condition
Pcolor~&(2) = _RGB32(0, 128, 0) ' green color of pad in off condition
Pcolor~&(3) = _RGB32(128, 128, 0) ' yellow color of pad in off condition
Game% = 0 ' set initial game level
Skill% = 0 ' set initial skill level
GameDir% = -1 ' set intial blue slider direction
SkillDir% = -1 ' set initial red slider direction
SIMONFILE 0 ' load longest tune ever played if available
'*
'* Create the eight semi-circle color pads, four off, four on
'*
FOR Pcount% = 0 TO 3 ' cycle through four color pads
_DEST Pad&(Pcount%, 0) ' set color pad off image as destination
CLS ' remove black transparency
SELECT CASE Pcount% ' which color pad is being worked on?
CASE 0 ' blue color pad
x% = 319: y% = 319 ' set x,y coordinates of circles
CASE 1 ' red color pad
x% = 0: y% = 319 ' set x,y coordinates of circles
CASE 2 ' green color pad
x% = 0: y% = 0 ' set x,y coordinates of circles
CASE 3 ' yellow color pad
x% = 319: y% = 0 ' set x,y coordinate of circles
END SELECT
CIRCLE (x%, y%), 319, _RGB32(16, 16, 16) ' draw simon outer circle segment
PAINT (x%, y%), _RGB32(16, 16, 16), _RGB32(16, 16, 16) ' paint simon color
CIRCLE (x%, y%), 300, Pcolor~&(Pcount%) ' draw color pad outer circle segment
CIRCLE (x%, y%), 140, Pcolor~&(Pcount%) ' draw color pad inner circle segment
PAINT (159, 159), Pcolor~&(Pcount%), Pcolor~&(Pcount%) ' paint color pad circle segment interior
LINE (x%, y%)-(ABS(319 - x%), ABS(10 - y%)), _RGB32(16, 16, 16), BF ' separate color pads horizontally
LINE (x%, y%)-(ABS(10 - x%), ABS(319 - y%)), _RGB32(16, 16, 16), BF ' separate color pads vertically
CIRCLE (x%, y%), 319, _RGB32(32, 32, 32) ' highlight edge of simon
Mask& = _COPYIMAGE(Pad&(Pcount%, 0)) ' create an image mask
_DEST Mask& ' set the mask as the destination
_CLEARCOLOR Pcolor~&(Pcount%) ' set circle segment as transparent
_DEST Pad&(Pcount%, 1) ' set color pad on image as destination
CLS ' remove black transparency
Clr~& = Pcolor~&(Pcount%) ' remember color being worked on
LINE (0, 0)-(319, 319), Clr~&, BF ' fill entire image with color pad color
FOR Count% = 129 TO 255 ' cycle 126 times
SELECT CASE Pcount% ' which color pad is being worked on?
CASE 0 ' blue color pad
Clr~& = Clr~& + 1 ' increase blue component
CASE 1 ' red color pad
Clr~& = Clr~& + 65536 ' increase red component
CASE 2 ' green color pad
Clr~& = Clr~& + 256 ' increase green component
CASE 3 ' yellow color pad
Clr~& = Clr~& + 65792 ' increase red and green component (yellow)
END SELECT
CIRCLE (159, 159), (255 - Count%) * 2, Clr~& ' draw circle with new color component
PAINT (159, 159), Clr~&, Clr~& ' paint inside circle new color component
NEXT Count%
_PUTIMAGE (0, 0), Mask& ' place mask over circles
NEXT Pcount%
_FREEIMAGE Mask& ' remove mask image from RAM (no longer needed)
_FREEIMAGE Sheet& ' remove spritesheet from RAM (no longer needed)
END SUB
'----------------------------------------------------------------------------------------------------------------------
' ENDGAME
SUB ENDGAME ()
'--------------------------------------------------------------------
'- Removes game's assets from RAM and returns to the operating system
'--------------------------------------------------------------------
SHARED Pad&() ' color pads: 0,x=BLUE, 1,x=RED, 2,x=GREEN, 3,x=YELLOW
SHARED Tone&() ' game sounds
SHARED Simon& ' simon graphics image
SHARED SimonHelp& ' simon help screen
SHARED Keys&() ' keyboard key images 0=Q, 1=W, 2=S, 3=A
SHARED Bslider& ' blue slider switch image
SHARED Rslider& ' red slider switch image
SHARED OnOff& ' on/off slider switch
DIM Count% ' generic counter
LINE (321, 408)-(331, 418), _RGB32(0, 0, 0), BF ' clear power button
_PUTIMAGE (313, 408), OnOff& ' place power button in new position
_DISPLAY ' update screen with changes
FOR Count% = 0 TO 3 ' cycle through assets
_SNDCLOSE Tone&(Count%) ' close sound files
_FREEIMAGE Keys&(Count%, 0) ' remove key raised images
_FREEIMAGE Keys&(Count%, 1) ' remove key pressed images
_FREEIMAGE Pad&(Count%, 0) ' remove color pad unlit images
_FREEIMAGE Pad&(Count%, 1) ' remove color pad lit images
NEXT Count%
_SNDCLOSE Tone&(4) ' close last sound file
_FREEIMAGE Simon& ' remove simon image
_FREEIMAGE SimonHelp& ' remove simon help screen image
_FREEIMAGE Bslider& ' remove blue slider switch image
_FREEIMAGE Rslider& ' remove red slider switch image
_FREEIMAGE OnOff& ' remove on/off power switch image
_DELAY 1 ' pause for 1 second
SYSTEM ' return control to the operating system
END SUB

QB64.org Forum

Samples Gallery & Reference => Games => Topic started by: bplus on March 06, 2020, 11:40:54 am
